Passenger Compartment Components

Items
1: K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
2: B119 Multi-axis Acceleration Sensor B119 Multi-axis Acceleration Sensor
3: B63RF Side Impact Sensor - Right Front
4: F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
5: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)
6: C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)
7: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 K36 Inflatable Restraint Sensing and Diagnostic Module X2
8: F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
9: B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front
10: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1 X51A Fuse Block - Instrument Panel X2

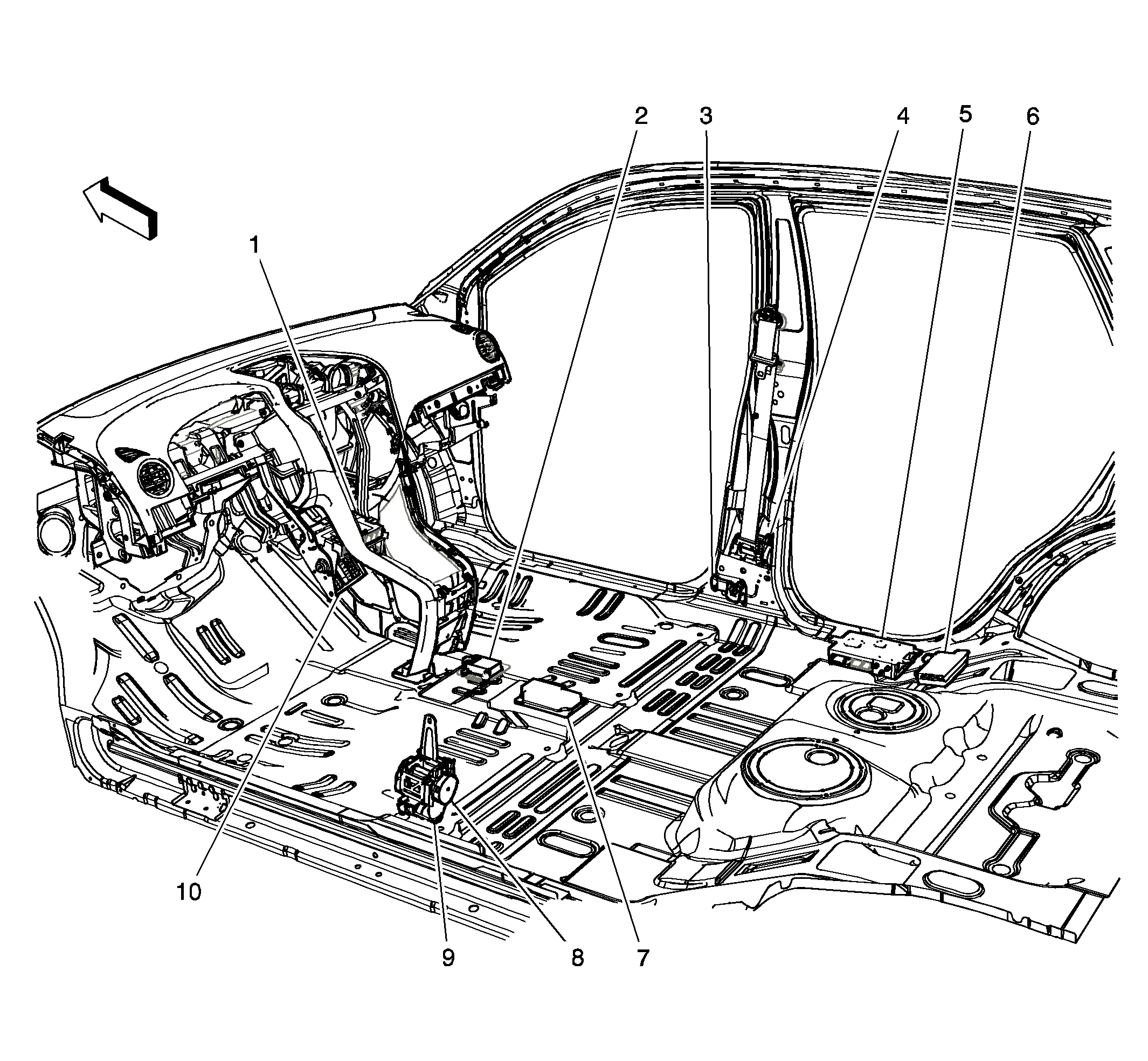

Fig 1: Passenger Compartment Components

Courtesy of GENERAL MOTORS COMPANY
