Radiator Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Captiva Sport. However, it is still accessible from the selected car via links, so may be relevant.

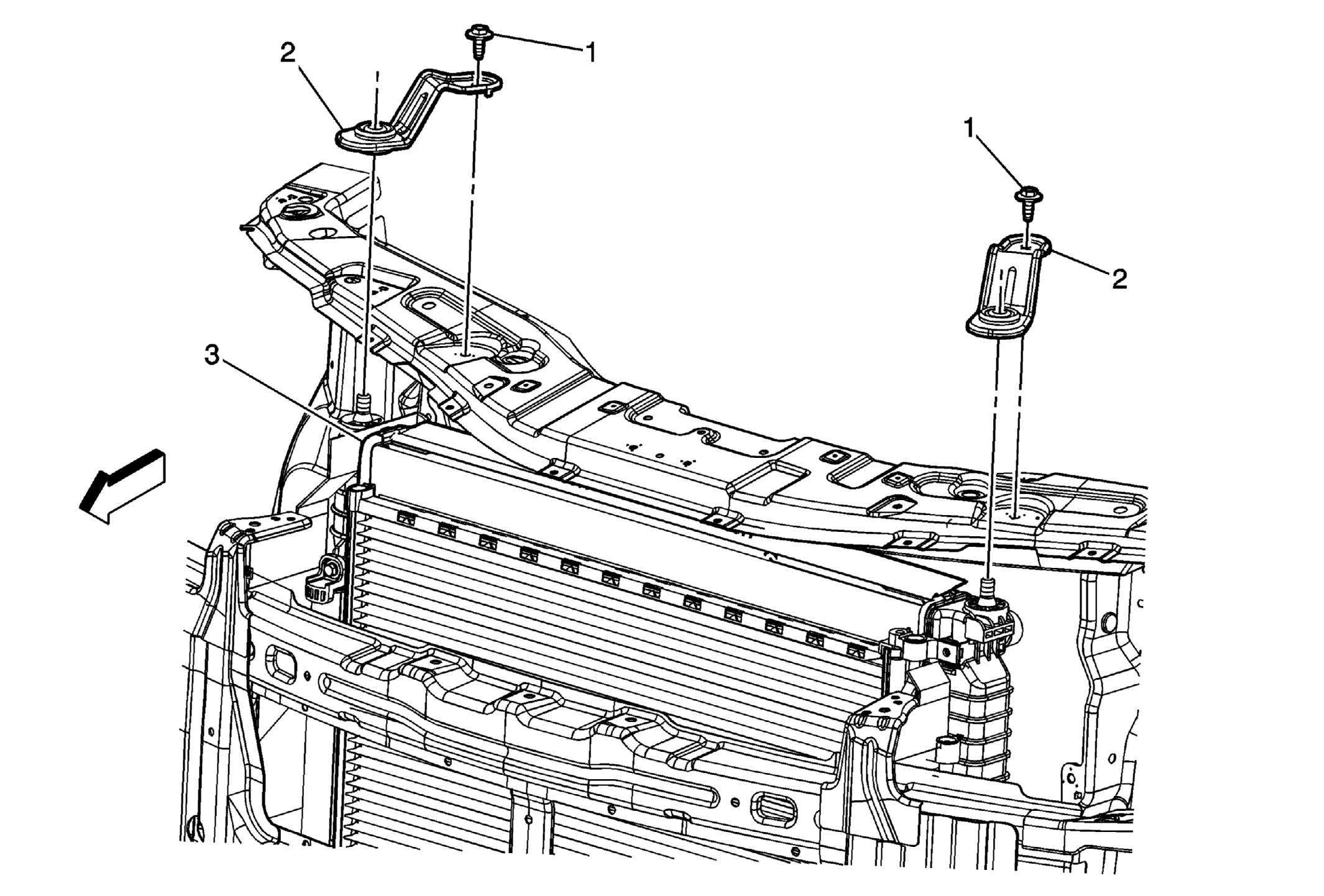

Fig 1: View Of Radiator
GM2158368Courtesy of GENERAL MOTORS COMPANY
Radiator Replacement

Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (GE 47716) .
  2. Raise and suitably support the vehicle as necessary. Refer to Lifting and Jacking the Vehicle .
  3. Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (2.4L) , Radiator Inlet Hose Replacement (3.0L) .
  4. Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (2.4L) , Radiator Outlet Hose Replacement (3.0L) .
  5. Reposition the fan shroud. Refer to Engine Coolant Fan Motor Replacement .
1 Radiator Support Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Radiator Support Bracket (Qty: 2)
3 Radiator
