Front Lower Control Arm Bushing Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Captiva Sport. However, it is still accessible from the selected car via links, so may be relevant.

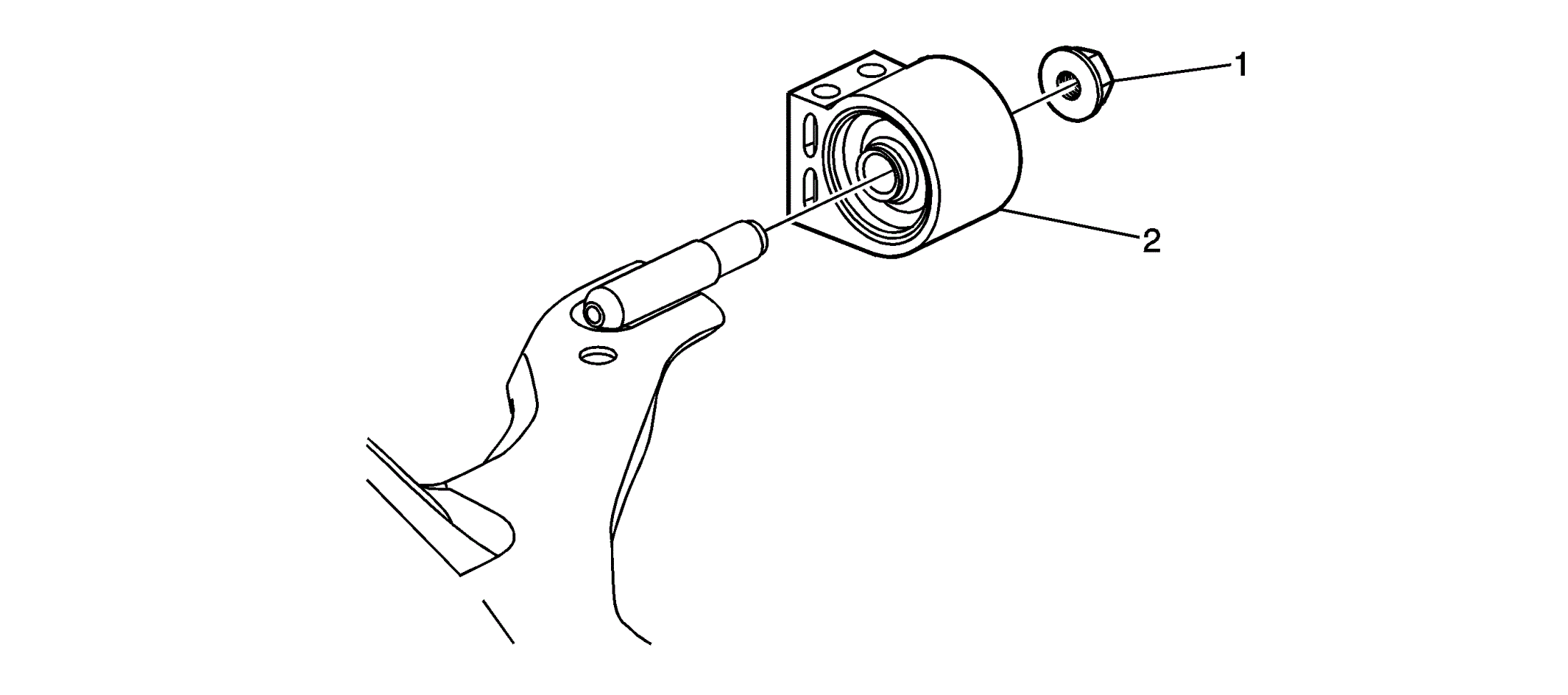

Fig 1: Front Lower Control Arm Bushing
GM2315872Courtesy of GENERAL MOTORS COMPANY
Front Lower Control Arm Bushing Replacement

Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the wheel and tire. Refer to Tire and Wheel Removal and Installation .
  3. Remove the front lower control arm. Refer to Lower Control Arm Replacement .
1 Front Lower Control Arm Bushing Nut
CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Procedure

  1. Install the front lower control arm in a suitable vise.
  2. Remove the front lower control arm nut.
  3. When installing the front control nut, finger tighten the nut.
  4. Install the front lower control arm.
  5. Tighten the front lower control arm nut.

Tighten
150 N.m (110 lb ft).
2 Front Lower Control Arm Bushing
