SIR Identification Views
WARNING: This page is about a different car, the 2012 Chevrolet Captiva Sport. However, it is still accessible from the selected car via links, so may be relevant.

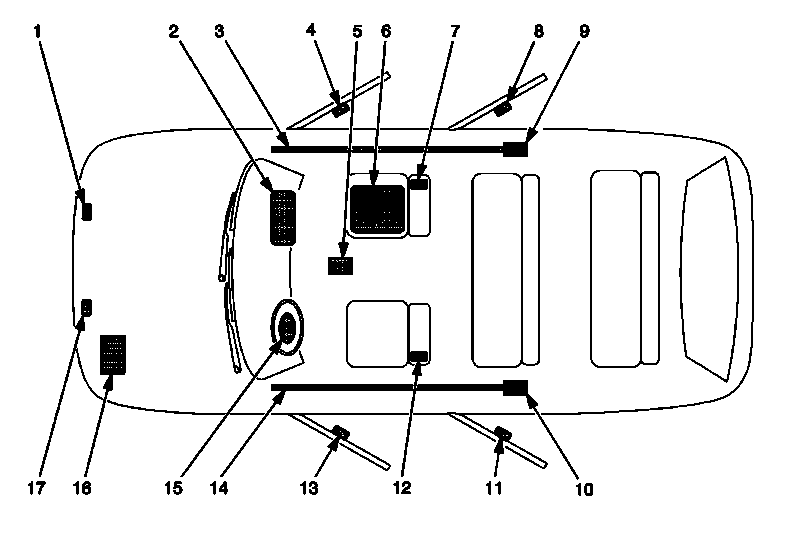

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Right Front Impact Sensor-Located under the front hood in the engine compartment |
| 2 | Passenger Instrument Panel Air Bag-Located at the top right under the instrument panel |
| 3 | Right Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 4 | Right Front Side Impact Sensor-Located under the right front door trim near the lower rear of the door frame |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM)-Located underneath the vehicle carpet under the center console |
| 6 | Passenger Presence System-Located under the front passenger sear trim cover (if equipped) |
| 7 | Passenger Seat Side Air Bag-Located on the seat back of passenger seat (if equipped) |
| 8 | Right Rear Side Impact Sensor-Located under the right rear door trim near the lower rear of the door frame |
| 9 | Right Roof Rail Air Bag-Located behind the garnish molding on the upper rear pillar |
| 10 | Left Roof Rail Air Bag-Located behind garnish molding on the upper rear pillar |
| 11 | Left Rear Side Impact Sensor-Located under the left rear door trim near the lower rear of the door frame |
| 12 | Driver Seat Side Air Bag-Located on the seat back of the driver seat |
| 13 | Left Front Side Impact Sensor-Located under the left front door trim near the lower rear of the door frame |
| 14 | Left Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 15 | Driver Steering Wheel Air Bag-Located on the steering wheel |
| 16 | Vehicle Battery-Located at the front left of the engine compartment. |
| 17 | Left Front Impact Sensor-Located under the front hood in the engine compartment |
