Rear Vision Camera (UVC) Wiring Schematics

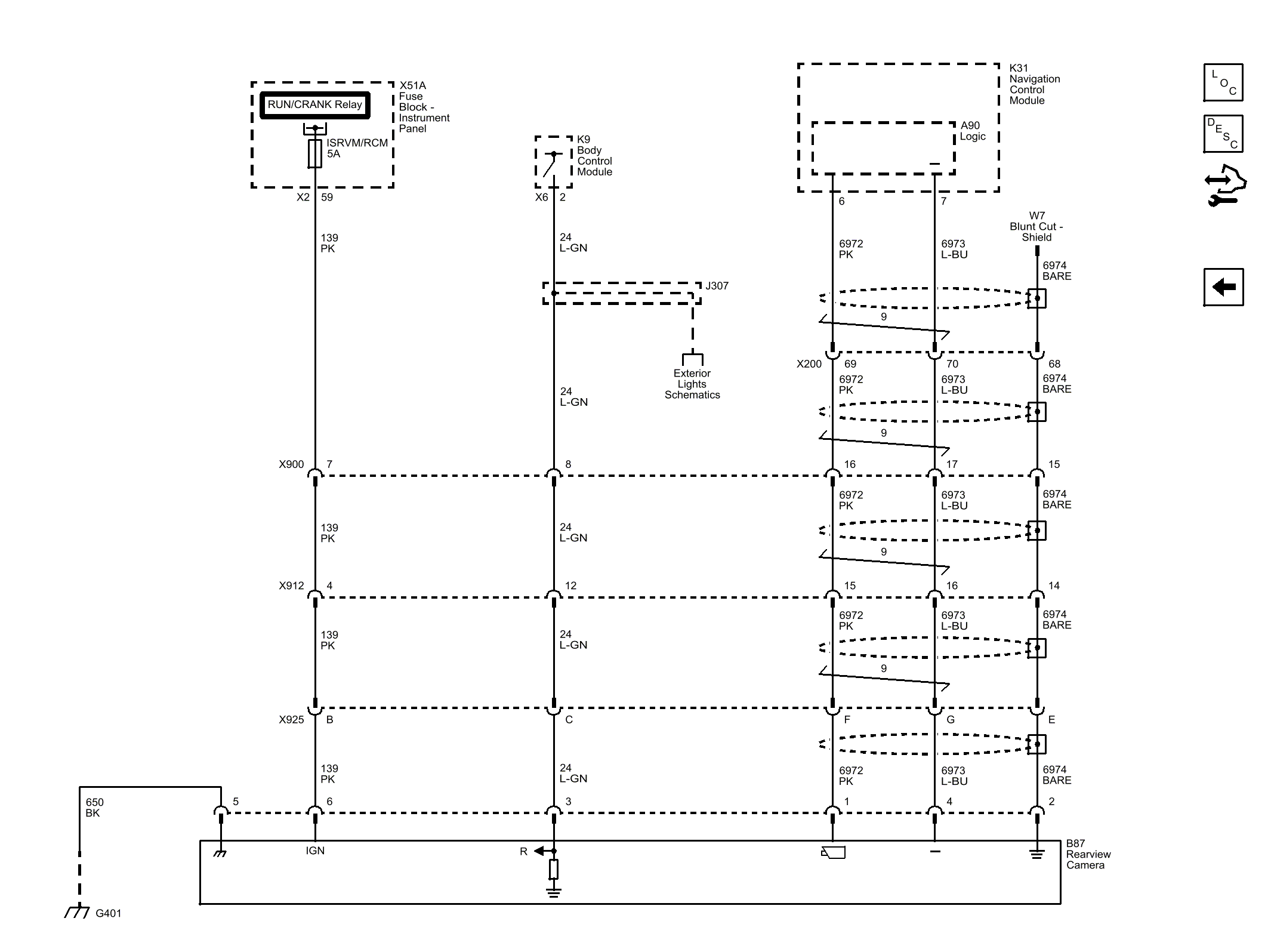

Fig 1: Rear Vision Camera (UVC) Wiring Schematic

GM3330630

Courtesy of GENERAL MOTORS COMPANY
