Rear Object Sensors (UD7) Wiring Schematics

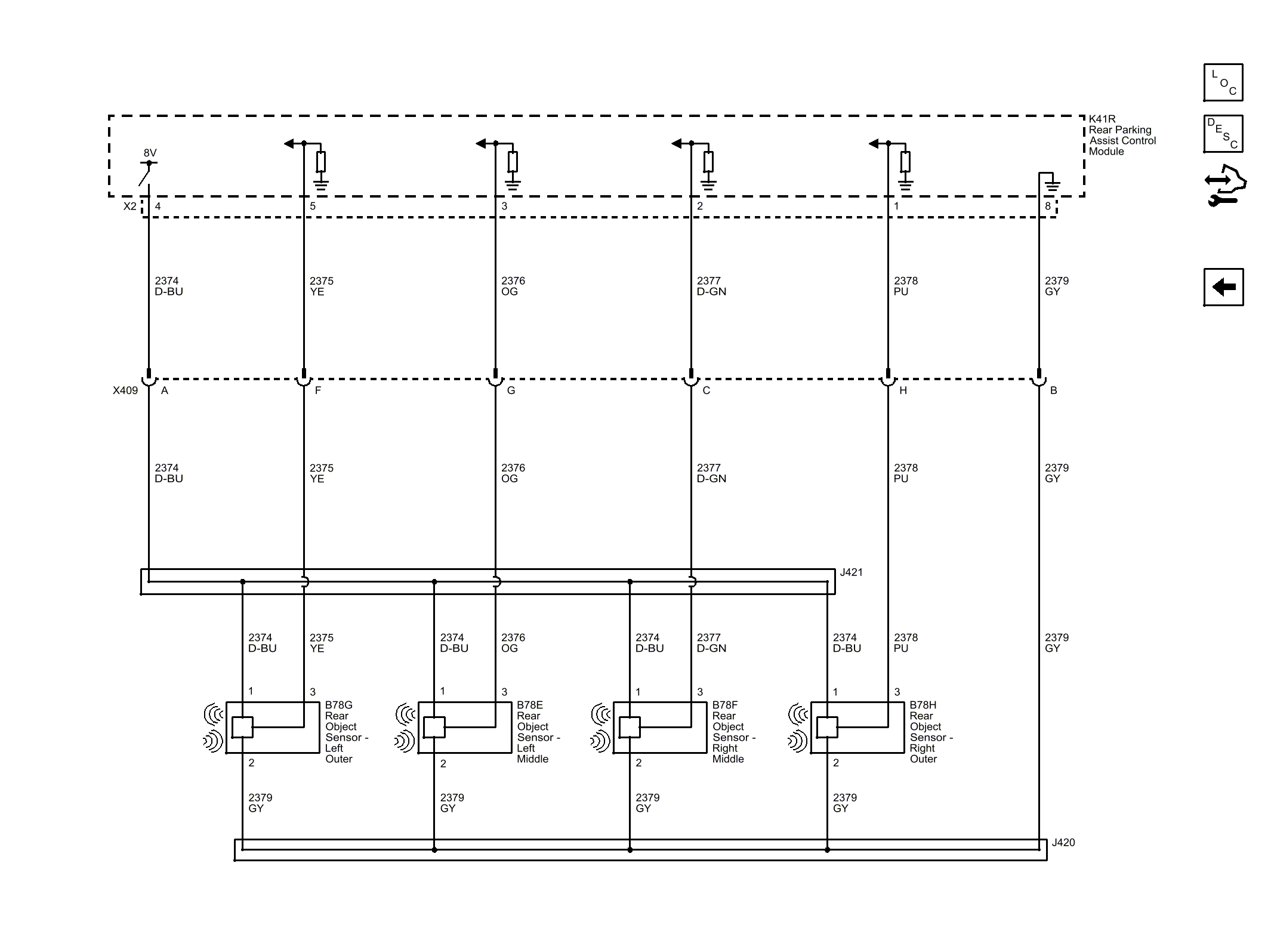

Fig 1: Rear Object Sensors (UD7) Wiring Schematic

GM3330633

Courtesy of GENERAL MOTORS COMPANY
