Rear Object Sensing Power, Ground and Serial Data (UD7) Wiring Schematics

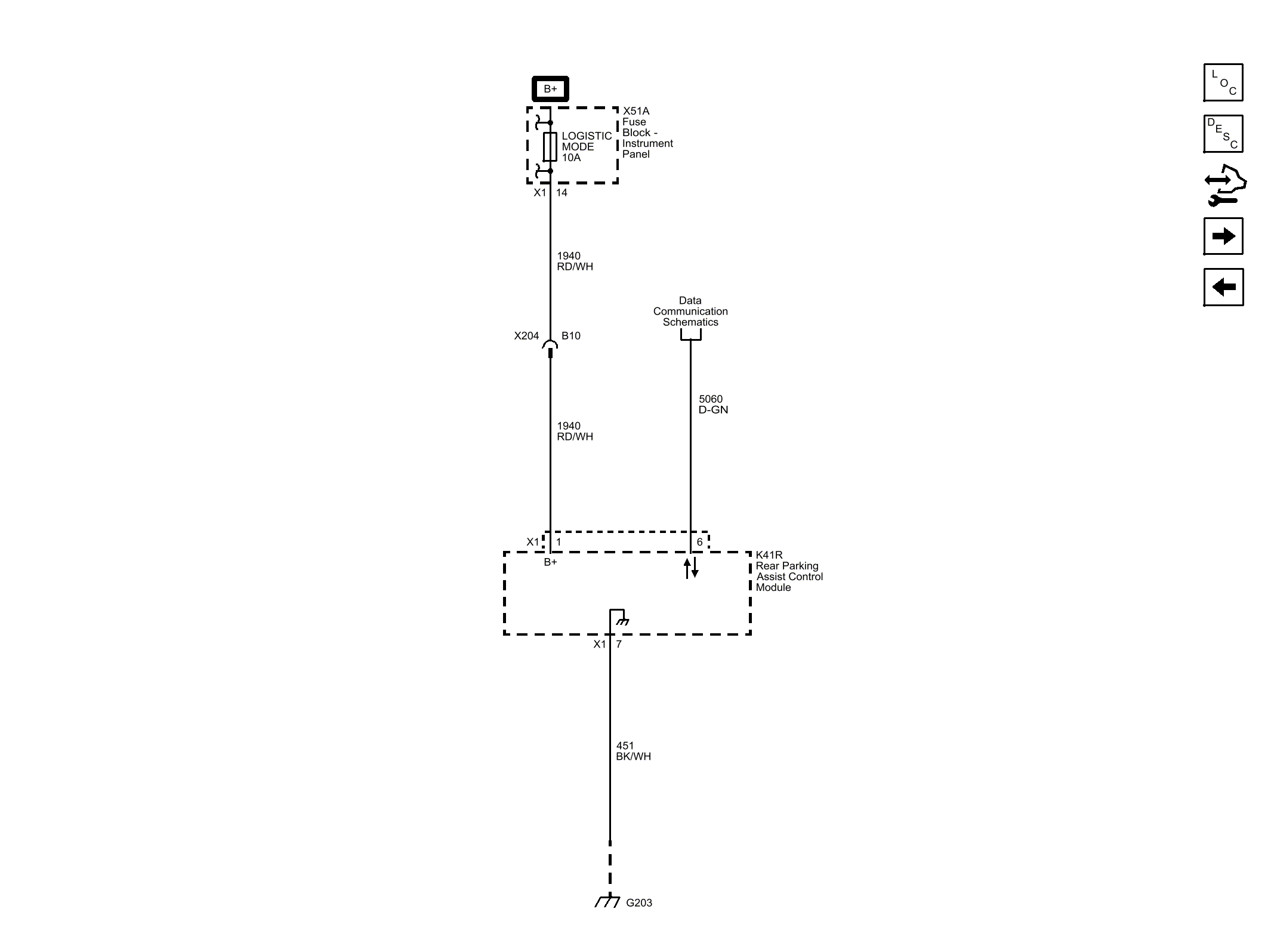

Fig 1: Rear Object Sensing Power, Ground and Serial Data (UD7) Wiring Schematic

GM3330632

Courtesy of GENERAL MOTORS COMPANY
