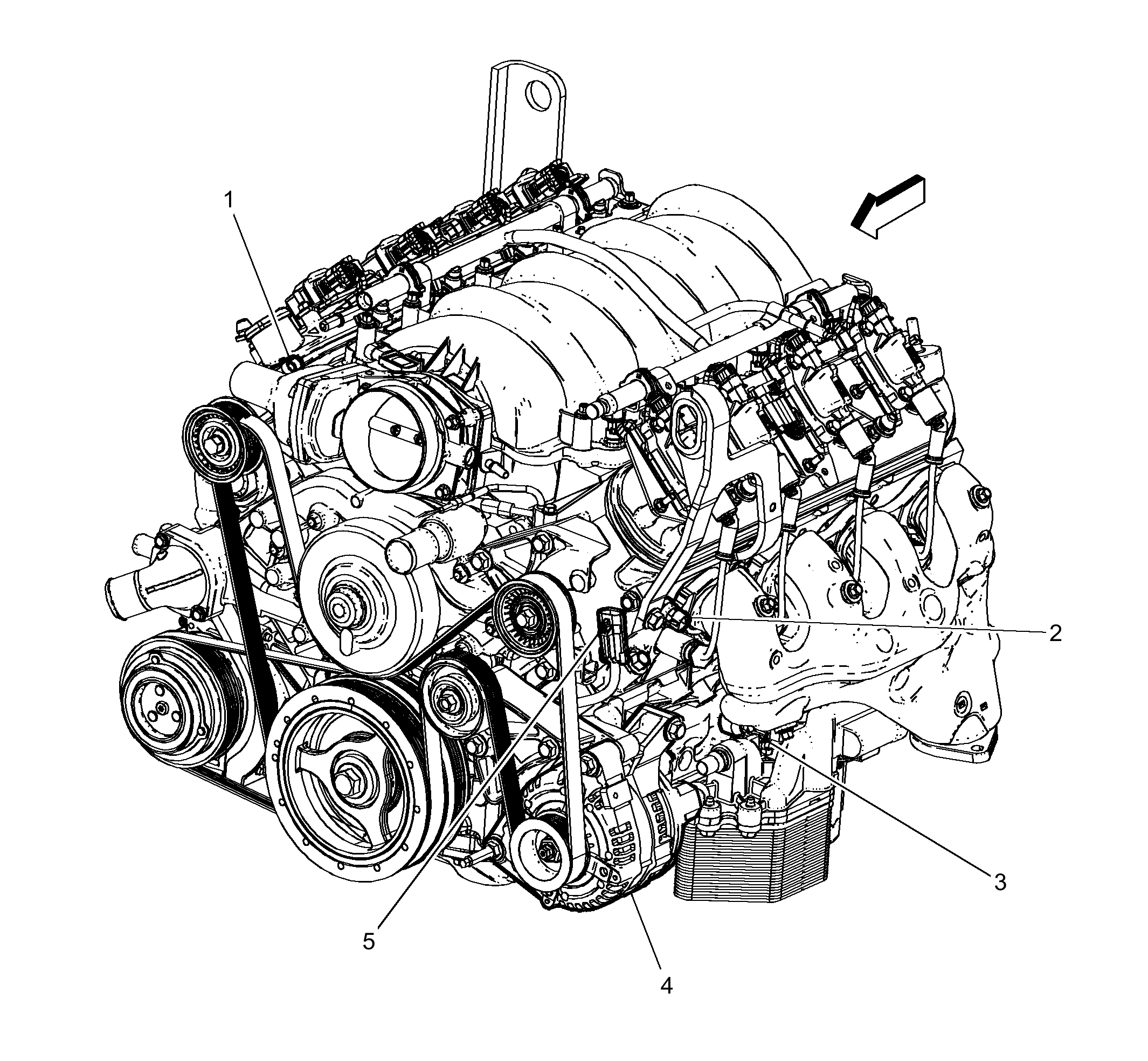

Left Front of Engine (LS7)
Left Front of Engine (LS7)
| Items |
|---|
| 1: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (L99, LS3, LSA, or LS7) |
| 2: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L99, LS3, LSA, or LS7) |
| 3: B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 4: G13 Generator G13 Generator X1G13 Generator X2 |
| 5: B23 Camshaft Position Sensor (L99, LS3, LSA, or LS7) B23 Camshaft Position Sensor (L99, LS3, LSA, or LS7) |
