Radio Antenna Coil Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

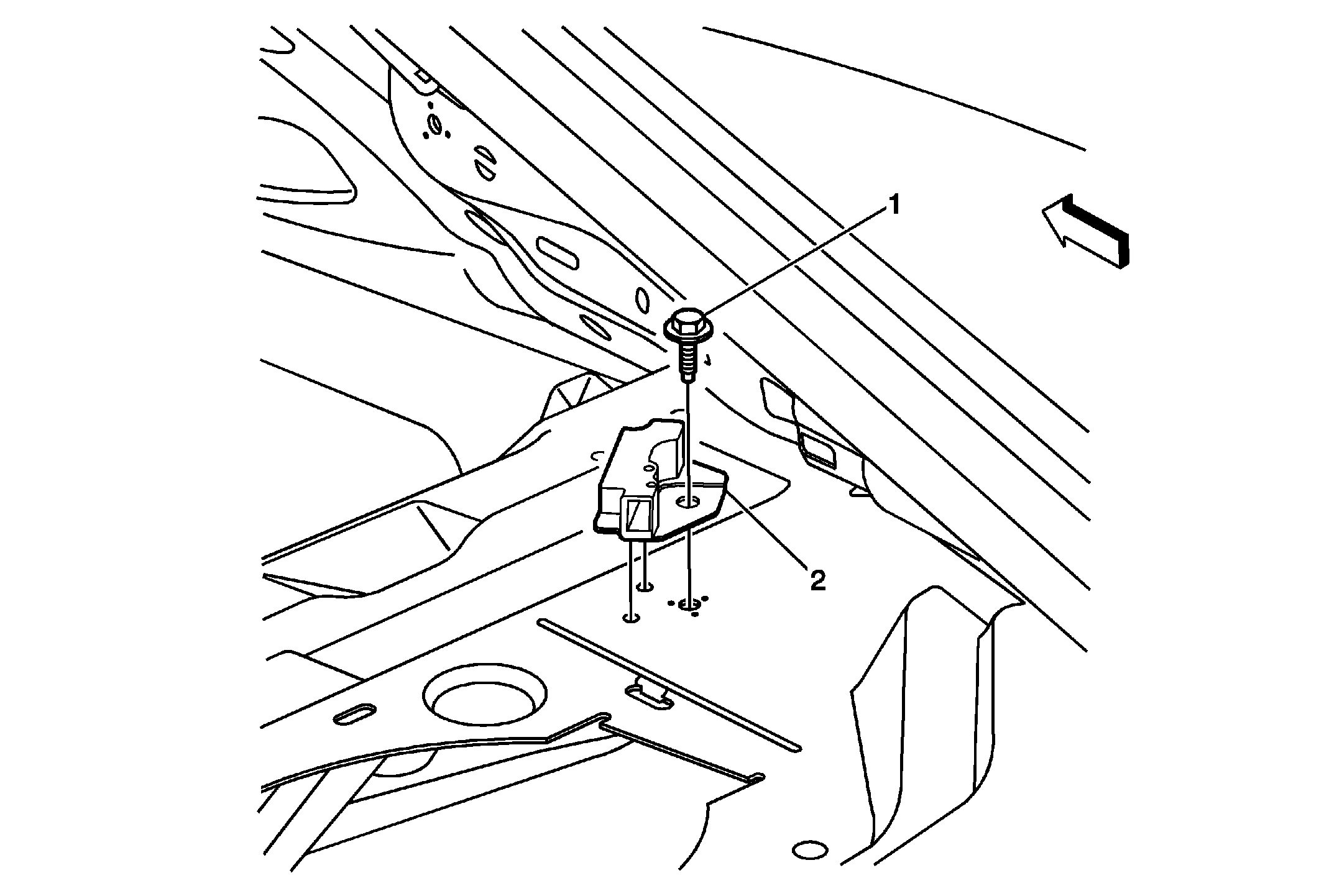

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement . |
|
| 1 | Radio Antenna Module Coil Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Radio Antenna Coil Procedure: Disconnect the electrical connection. |
