Communication Interface Module Replacement

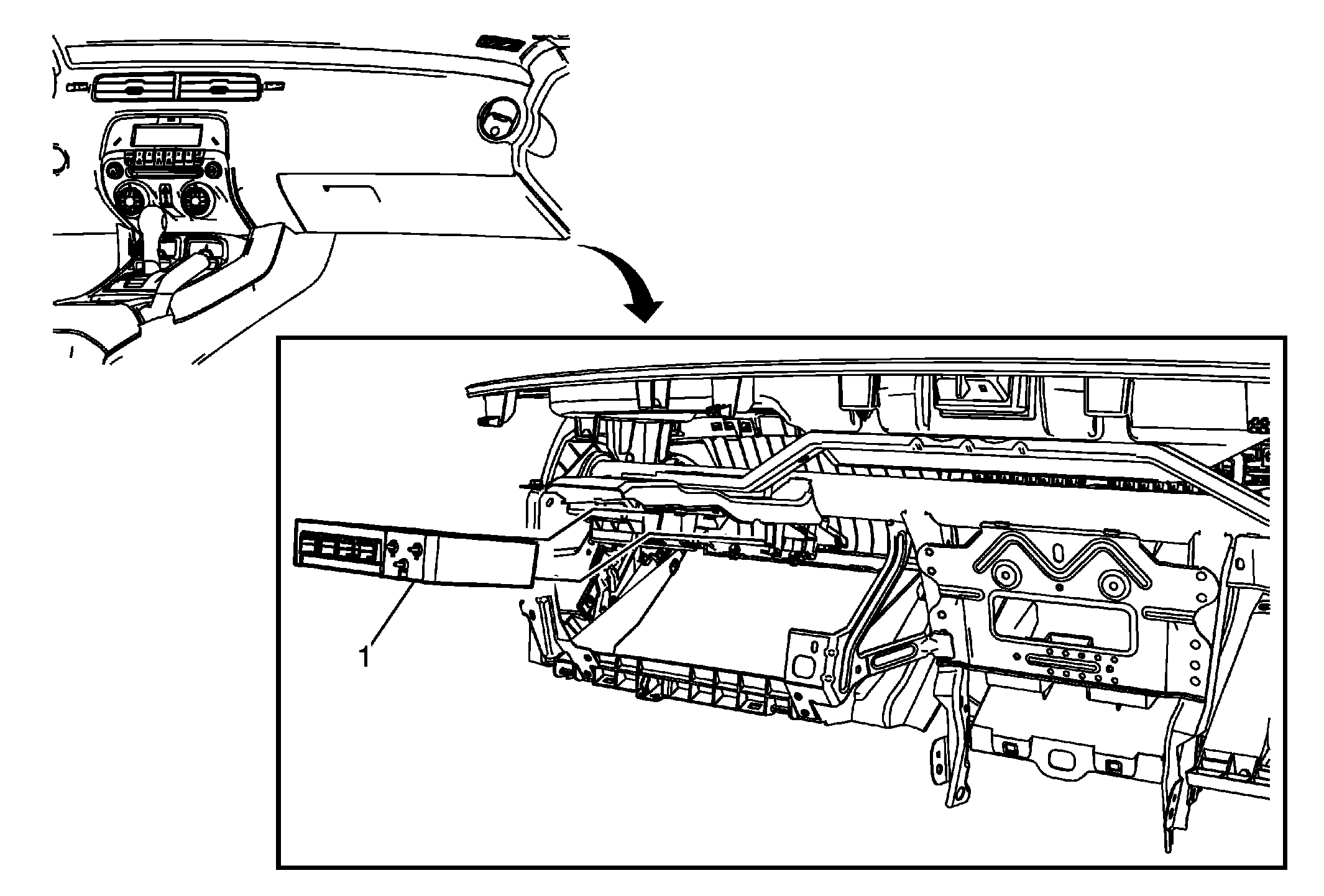

Fig 1: Communication Interface Module
GM2195334Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the communication interface module cover, if equipped.
1 Communication Interface Module

Procedure

  1. Disconnect the electrical connections.
  2. If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped.
  3. For programming and set up procedures, refer to Control Module References .
