K35 Ignition Coil Module
WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
|

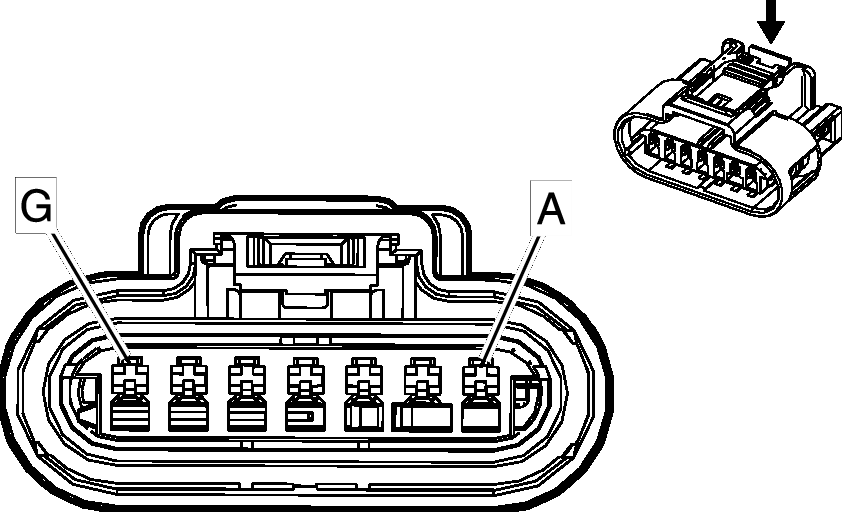

K35 Ignition Coil Module
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| A | 1 | VT/L-BU | 5292 | Powertrain Main Relay Fused Supply (3) | - |
| B | 0.75 | BK | 150 | Ground | - |
| C | 0.5 | BK/GY | 453 | Low Reference | - |
| D | 0.5 | L-BU/VT | 2121 | Ignition Control (1) | - |
| E | 0.5 | L-BU/WH | 2122 | Ignition Control (2) | - |
| F | 0.5 | L-GN/L-BU | 2123 | Ignition Control (3) | - |
| G | 0.5 | YE/L-BU | 2124 | Ignition Control (4) | - |
