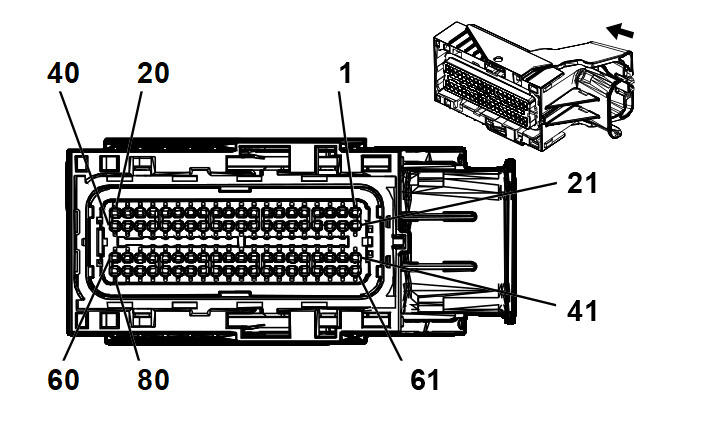

K114B Hybrid Powertrain Control Module 2 X1

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: 34566-0703
Service Connector: 13577545
Description: 80-Way F MX123 Series, Sealed (BK with BU Terminal Position Assurance Lock)

Terminal Part Information

Pins: 1-3, 5, 6, 8-10, 17, 18, 20, 24, 25, 27, 37, 38, 45, 47, 49-52, 54, 55, 57, 58, 62, 64, 65, 67, 72, 74, 75, 77, 78
Terminated Lead: 13575813
Release Tool: J-38125-213
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: 33468-0003/23
Core/Insulation Crimp: J/J

Pins: 26, 31-33, 40, 60, 63, 69, 70, 73, 80
Terminated Lead: Pending
Release Tool: J-38125-213
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: 33468-0001/23
Core/Insulation Crimp: H/H

K114B Hybrid Powertrain Control Module 2 X1

Pin	Size	Color	Circuit	Function	Option
1	0.5	BK	2050	Ground	-
2	0.5	RD/L-BU	5240	Battery Positive Voltage	-
3	0.5	YE/VT	3962	High Voltage Battery 3 (+) Relay Control	-
4	-	-	-	Not Used	-
5	0.5	WH/BN	3963	High Voltage Battery 3 (-) Relay Control	-
6	0.5	VT/GY	3961	High Voltage Battery (-) Relay Control	-
7	-	-	-	Not Used	-
8	0.5	GY/L-BU	5137	Precharge Relay PWM Signal	-
9	0.5	BN/L-GN	3959	High Voltage Battery 1 (+) Relay Control	-
10	0.5	GY/L-BU	3960	High Voltage Battery 2 (+) Relay Control	-
11-16	-	-	-	Not Used	-
17	0.5	L-BU	2500	High Speed GMLAN Serial Data (+) (1)	-
18	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
19	-	-	-	Not Used	-
20	0.5	BK/YE	407	Low Reference	-
21-23	-	-	-	Not Used	-
24	0.5	BK/GY	3820	Low Reference	-
25	0.5	L-GN/YE	3822	Rechargeable Energy Storage System Coolant HVAC Mode Sensor Signal	-
26	0.35	L-BU/GY	636	Outside Ambient Air Temperature Sensor Signal	-
27	0.5	L-GN/VT	2032	Coolant Temperature Sensor Signal	-
28-30	-	-	-	Not Used	-
31	0.35	L-BU	204	A/C Low Pressure Sensor Signal	-
32	0.35	WH/L-BU	732	A/C Refrigerant High Temperature Sensor Signal	-
33	0.35	BK/VT	452	Low Reference	-
34-36	-	-	-	Not Used	-
37	0.5	L-BU	2500	High Speed GMLAN Serial Data (+) (1)	-
38	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
39	-	-	-	Not Used	-
40	0.35	BK/L-BU	61	Outside Ambient Temperature Sensor Low Reference	-
41-44	-	-	-	Not Used	-
45	0.5	BK/BN	5088	Low Reference	-
46	-	-	-	Not Used	-
47	0.5	VT	5087	High Voltage Interlock Loop Signal (1)	-
48	-	-	-	Not Used	-
49	0.5	BK/L-BU	720	Low Reference	-
50	0.5	VT/BN	2028	Coolant Valve Position Sensor Signal	-
51	0.5	YE/BK	3829	Fuel Door Status Signal	-
52	0.5	YE	5530	Hood Open Switch Signal	-
53	-	-	-	Not Used	-
54	0.5	L-BU/BK	7493	High Speed GMLAN Serial Data (+) (3)	-
55	0.5	WH	7494	High Speed GMLAN Serial Data (-) (3)	-
56	-	-	-	Not Used	-
57	0.5	L-BU/L-GN	6433	CAN Bus High Serial Data	-
58	0.5	WH	6432	CAN Bus Low Serial Data	-
59	-	-	-	Not Used	-
60	0.35	BK/L-GN	476	Low Reference	-
61	-	-	-	Not Used	-
62	0.5	VT/RD	3821	Rechargeable Energy Storage System Coolant HVAC Mode Sensor High Reference	-
63	0.35	L-BU/RD	474	5 Volt Reference	-
64	0.5	WH/RD	596	5 Volt Reference	-
65	0.5	BK/VT	5596	Low Reference	-
66	-	-	-	Not Used	-
67	0.5	GY/VT	5595	High Voltage Interlock Loop Signal (2)	-
68	-	-	-	Not Used	-
69	0.35	VT/BN	3699	Charge Port Door Switch Signal	-
70	0.35	GY/WH	1447	Fuel Door Release Switch Signal	-
71	-	-	-	Not Used	-
72	0.5	L-BU/BK	6502	Fuel Door Open Signal	-
73	0.35	BK/GY	718	Low Reference	-
74	0.5	L-BU/BK	7493	High Speed GMLAN Serial Data (+) (3)	-
75	0.5	WH	7494	High Speed GMLAN Serial Data (-) (3)	-
76	-	-	-	Not Used	-
77	0.5	L-BU/L-GN	6433	CAN Bus High Serial Data	-
78	0.5	WH	6432	CAN Bus Low Serial Data	-
79	-	-	-	Not Used	-
80	0.35	BK/L-BU	3828	Low Reference	-
