B208 Fuel Door Status Switch Assembly

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

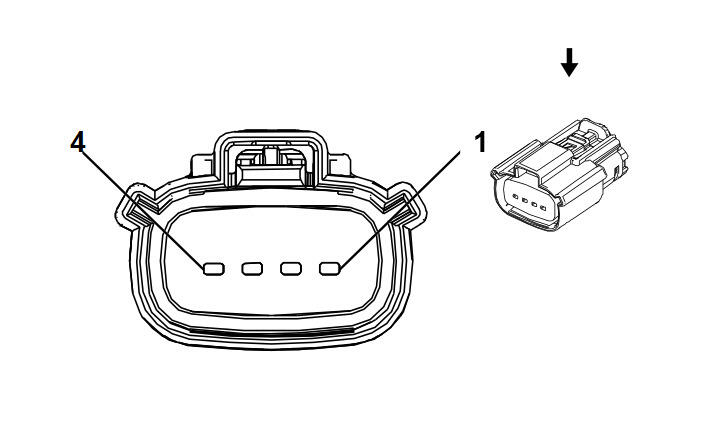

GM2474747
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 33471-0406
  • Service Connector: 13577535
  • Description: 4-Way F MX150 Series, Sealed (BK)
 Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - Pending
  • Release Tool: J-38125-217
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: 33012-3002/26
  • Core/Insulation Crimp: E/2
B208 Fuel Door Status Switch Assembly

Pin Size Color Circuit Function Option
1 0.5 L-BU/BK 6502 Fuel Door Open Signal -
2 0.5 BK 850 Ground -
3 0.5 YE/BK 3829 Fuel Door Status Signal -
4 0.5 BK 850 Ground -
