Secondary Air Injection Pipe Replacement

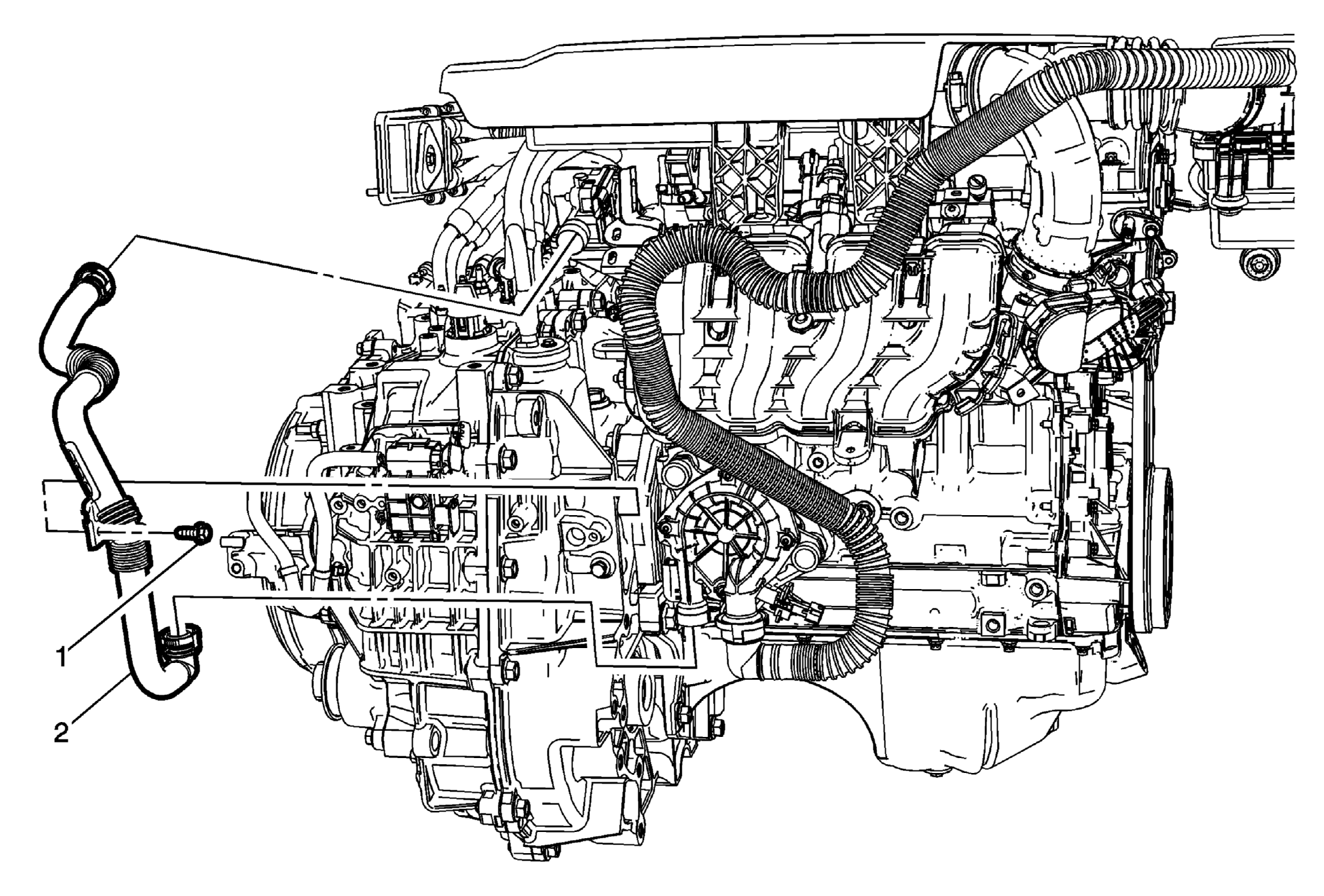

Fig 1: Secondary Air Injection Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Secondary Air Injection Pipe Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Secondary Air Injection Pipe Procedure Disconnect the quick connect fittings by squeezing both sides.

Callout

Component Name

Preliminary Procedures

Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Secondary Air Injection Pipe Fastener

CAUTION:

Tighten
9 N.m (80 lb in)

Secondary Air Injection Pipe
Procedure
Disconnect the quick connect fittings by squeezing both sides.
