Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

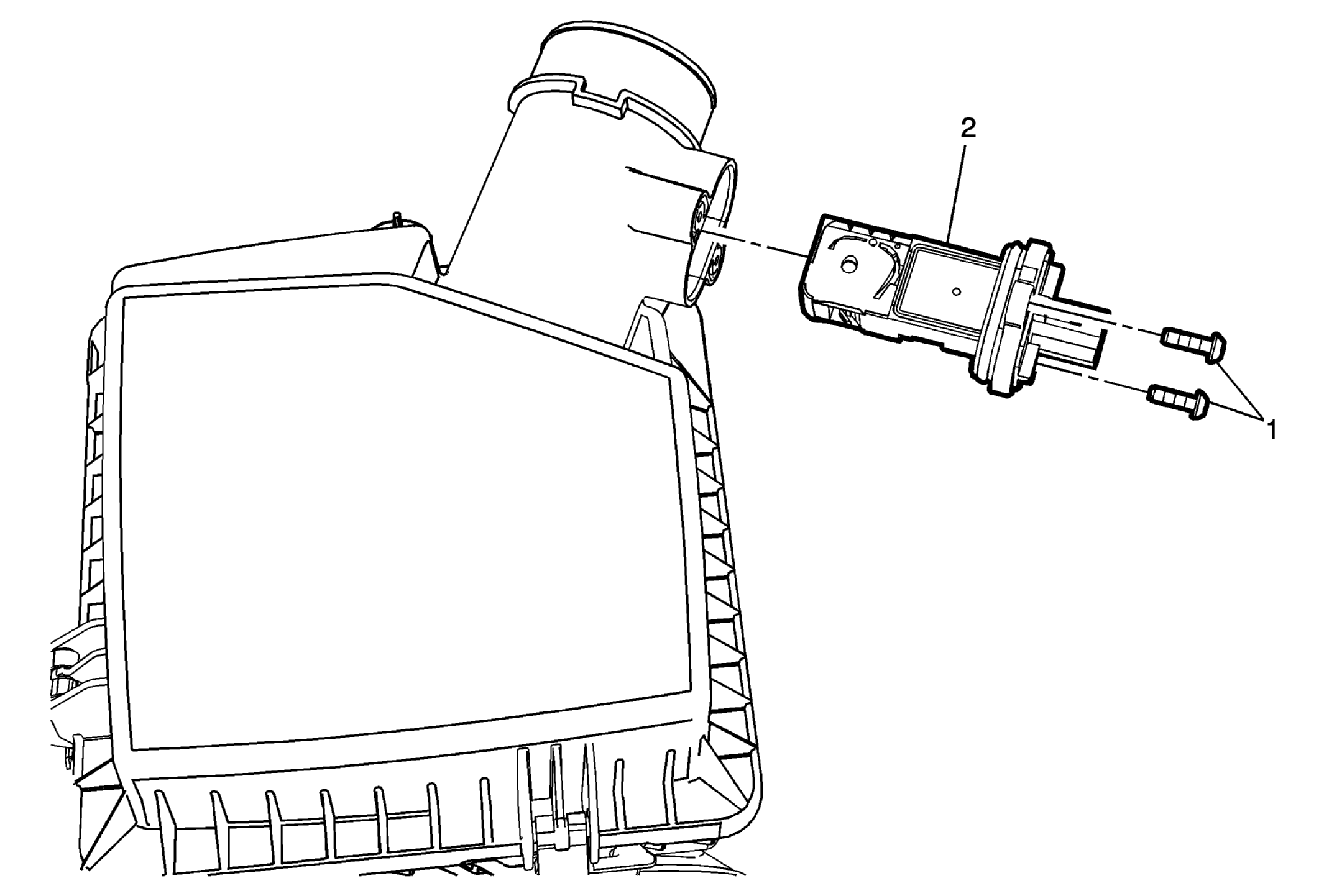

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout	Component Name
1	Mass Airflow Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Mass Airflow Sensor with Intake Air Temperature Sensor Procedure  Disconnect the electrical connector.
