Ignition Coil Replacement
Ignition Coil Replacement

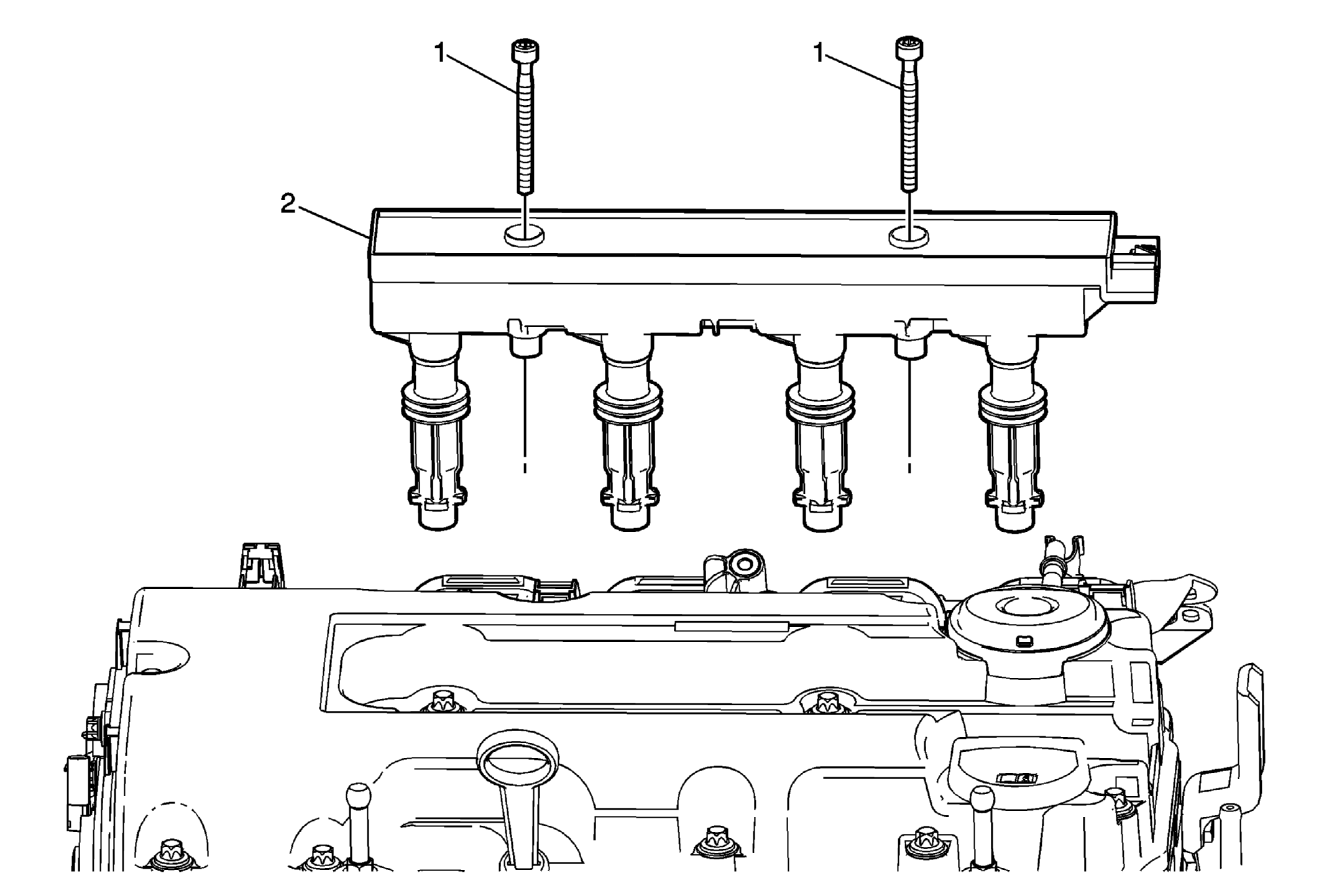

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement . |
|
| 1 | Ignition Coil Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m(71 lb in) Special Tools EN 6009 Remover and Installer Ignition Module For equivalent regional tools, Refer to Special Tools (Repair Tools) , Special Tools (Diagnostic Tools) |
| 2 | Ignition Coil Procedure Disconnect the electrical connector. |
