Fuel Tank Filler Pipe Replacement

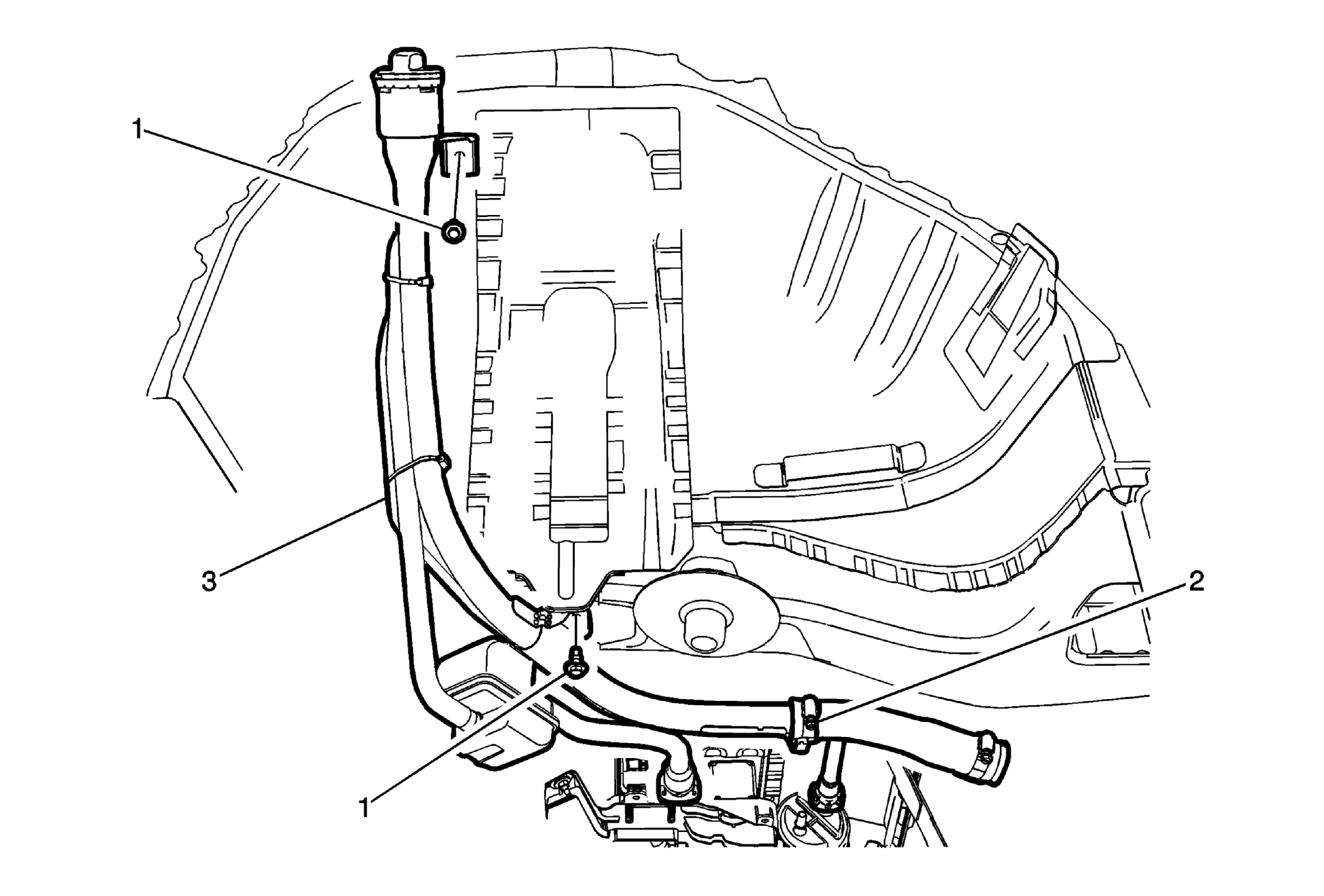

Fig 1: Fuel Tank Filler Pipe
GM2384695Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Filler Pipe Replacement

Callout Component Name
WARNING:

Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

Preliminary Procedure

  1. Remove the filler cap.
  2. Remove the right rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
  3. Disconnect the evaporative emission canister quick connect pipes. Refer to Plastic Collar Quick Connect Fitting Service
1 Fuel Tank Filler Pipe Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m(80 lb in)
2 Fuel Tank Filler Pipe Hose Clamp
Tighten
4 N.m(35 lb in)
3 Fuel Tank Filler Pipe
