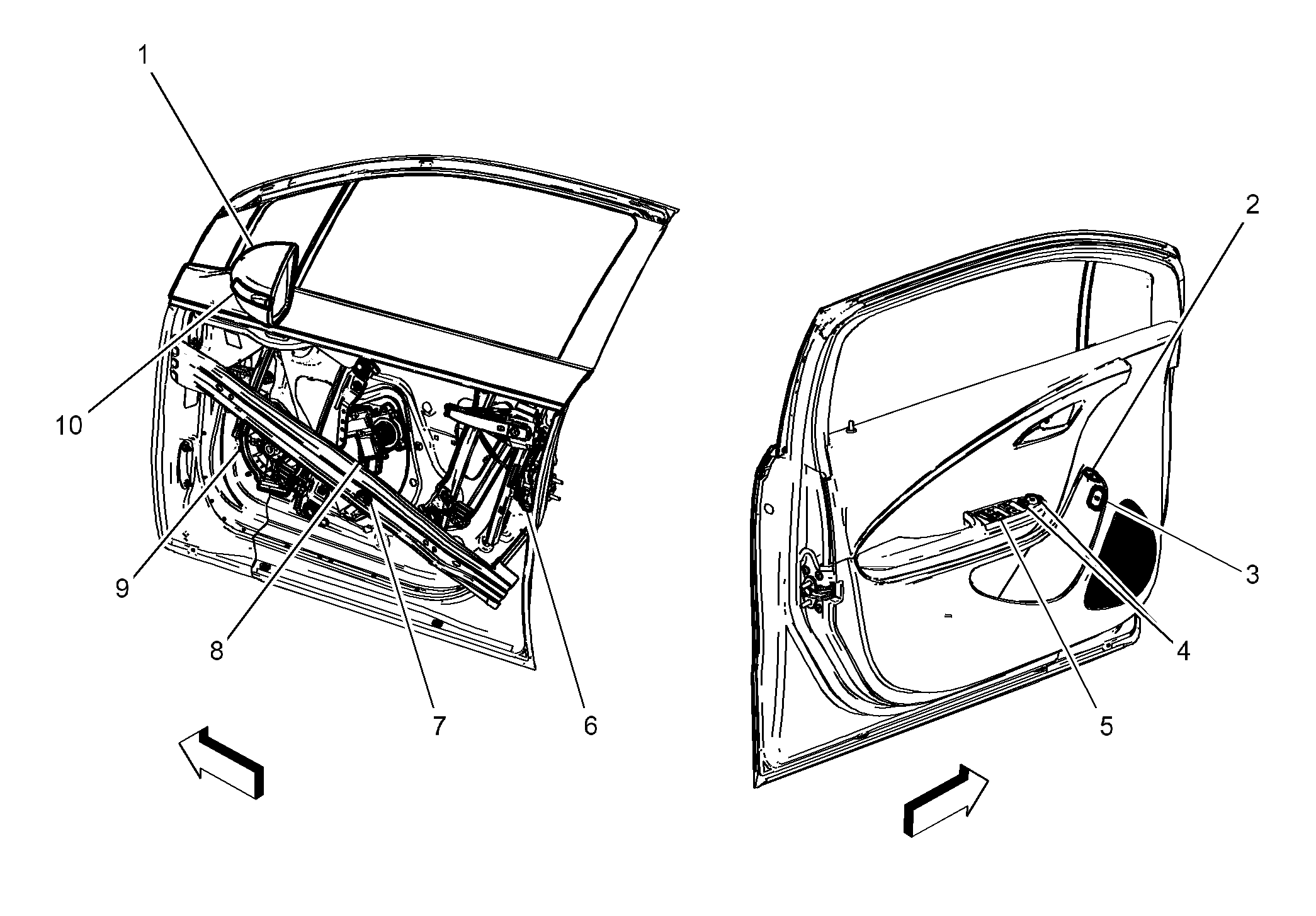

Driver Door Components
Driver Door Components
| Items |
|---|
| 1: A9A Outside Rearview Mirror - Driver |
| 2: S117 Refuel Request Switch S117 Refuel Request Switch |
| 3: S113 Charge Port Door Open Request Switch S113 Charge Port Door Unlatch Switch |
| 4: S52 Outside Rearview Mirror Switch S52 Outside Rearview Mirror Switch |
| 5: S79D Window Switch - Driver S79D Window Switch - Driver |
| 6: A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver |
| 7: B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front |
| 8: M74D Window Motor - Driver M74D Window Motor - Driver |
| 9: P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQA)P19AG Speaker - Left Front Door (UZ6) |
| 10: E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left |
