Battery State of Charge Wiring Schematics

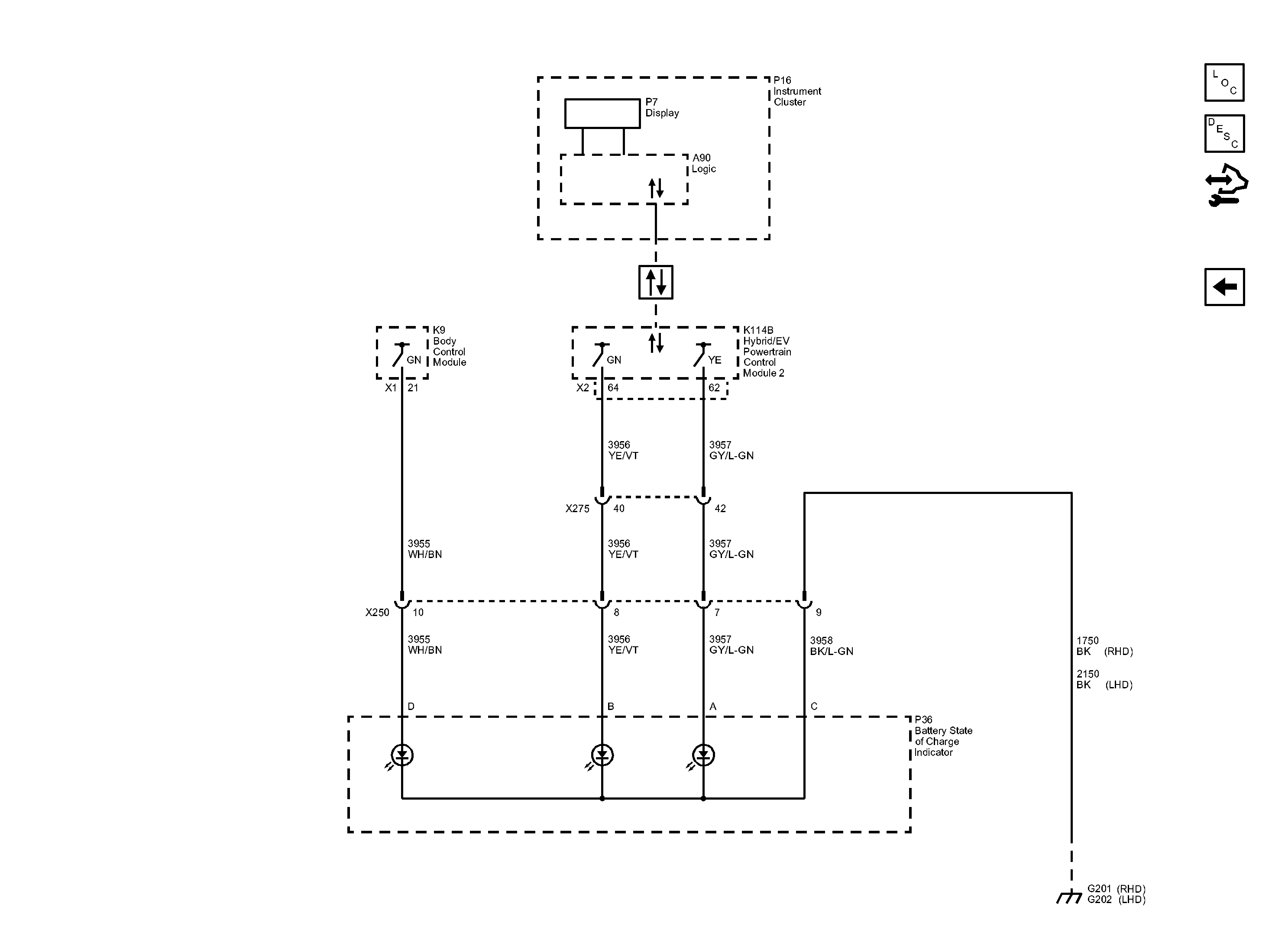

Fig 1: Battery State of Charge Wiring Schematics

GM2812528

Courtesy of GENERAL MOTORS COMPANY
