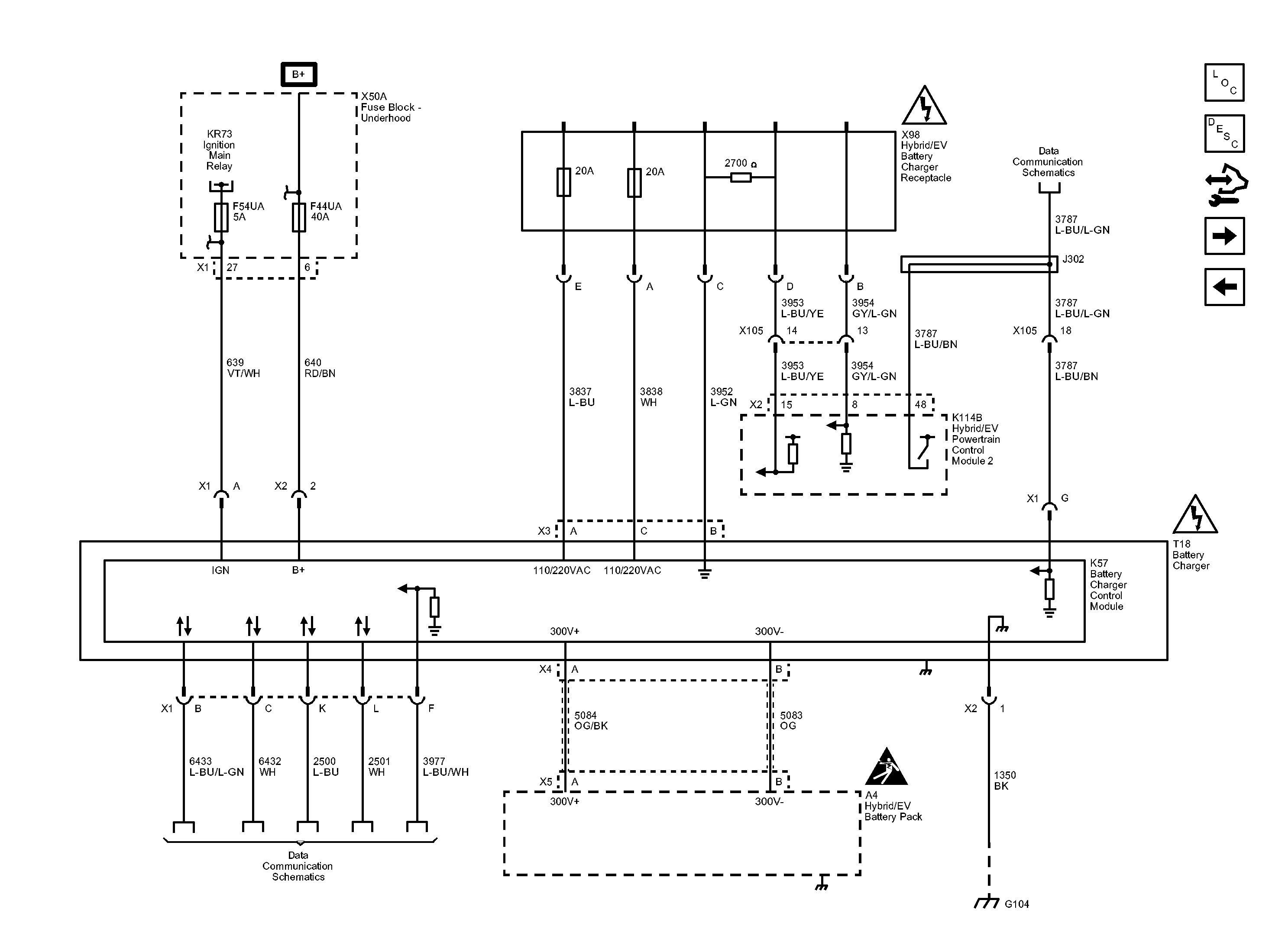

Home >> Chevrolet >> 2013 >> Volt >> Repair and Diagnosis >> Electrical >> Charging Systems >> Plug-In Charging >> Schematic Wiring Diagrams >> Plug-In Charging Wiring Schematics >> Battery Charger Wiring Schematics
