Connect Procedure

    Fig 1: Negative Battery Cable
    GM2374906Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Battery Disconnect Warning .

    NOTE:

    Clean any existing corrosion from the battery terminal and the battery cable end.

  1. Position the negative battery cable (4) to the battery.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the negative battery cable onto the battery terminal and tighten cable nut (1) to 9 N.m (80 lb in).

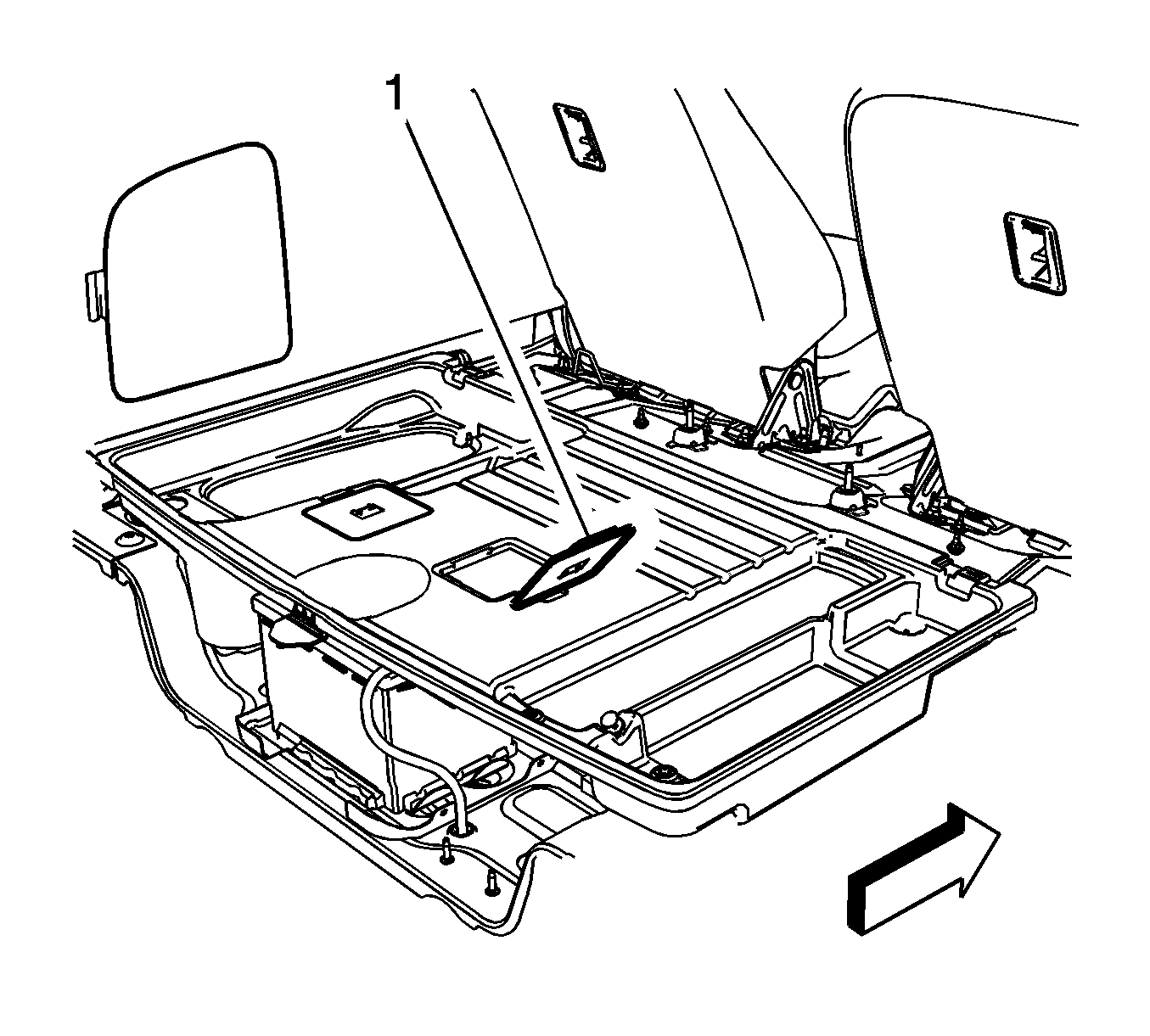

    3. Fig 2: Rear Access Panel
    GM2442868Courtesy of GENERAL MOTORS COMPANY
  3. Close the access cover (1).
  4. Lower the rear compartment floor panel.
