Front Side Door Window Regulator Replacement

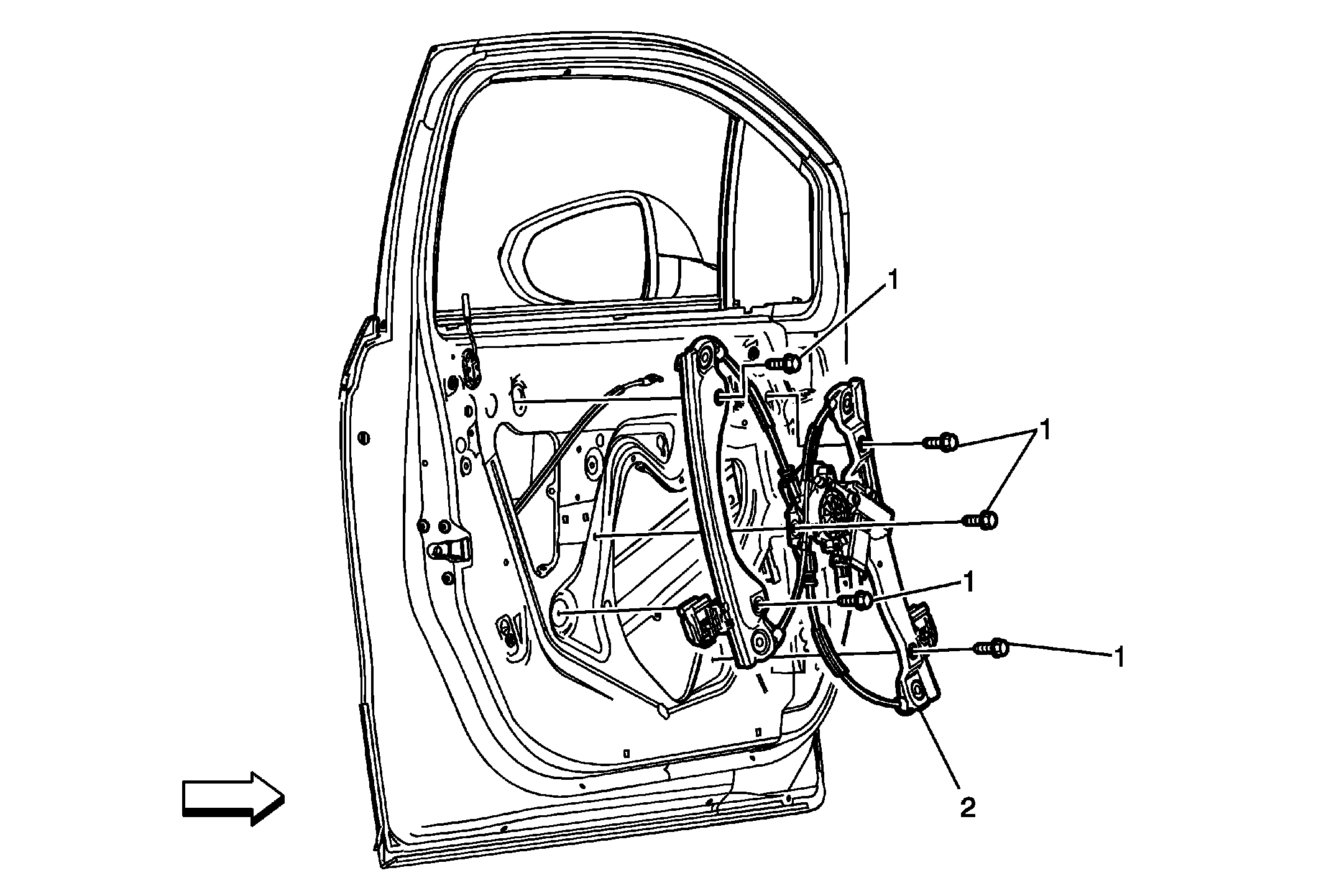

Fig 1: Front Side Door Window Regulator
GM2374087Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Replacement

Callout Component Name
WARNING:

Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

  1. Loosen the front side door window from the guide nuts. Do not remove the window from the door. Refer to Front Side Door Window Replacement .
  2. Remove the front side door trim panel bracket.
1 Front Side Door Window Regulator Bolts (Qty: 5)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the water deflector.
  2. Do Not to remove the window guides nuts from the window regulator.
  3. After releasing the window from the guides tape the window to the upper door frame before removing the regulator bolts.
  4. Disconnect the electrical connector.

Tighten
11 N.m (97 lb in)
2 Front Side Door Window Regulator

Procedure

  1. Remove the window regulator through the opening in the inner door panel.
  2. Transfer all parts as necessary.

TIP:  Inspect the window for proper operation before installing the door trim panel.
