Front Side Door Window Channel Replacement

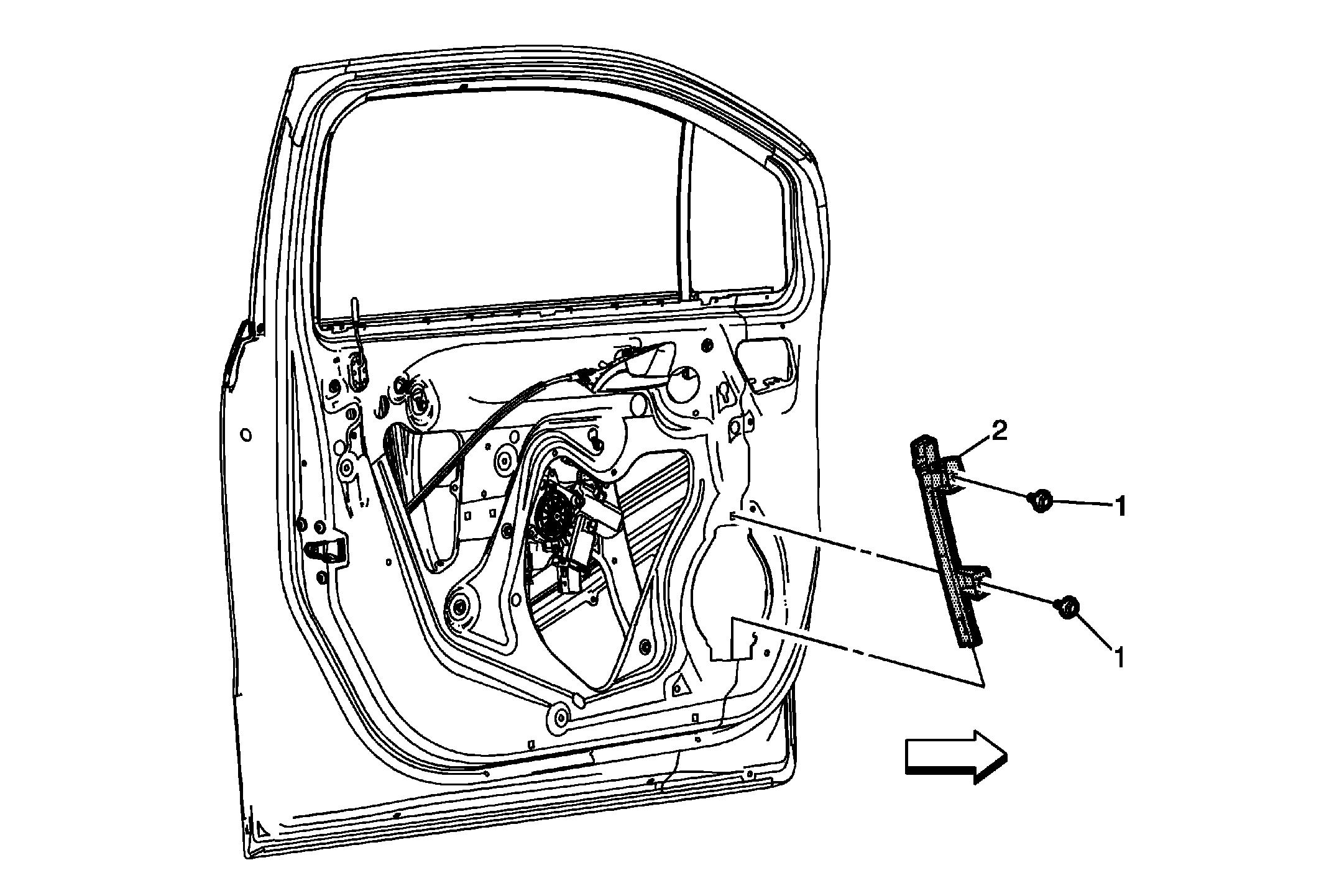

Fig 1: Front Side Door Window Channel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Position the window to the full up position. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Front Side Door Window Front Channel Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Reposition the water deflector. Pull the weatherstrip from the front channel. Tighten 11 N.m (97 lb in)
2	Front Side Door Window Front Channel TIP: Inspect the window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Position the window to the full up position.
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .

Front Side Door Window Front Channel Bolts (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure

Reposition the water deflector.
Pull the weatherstrip from the front channel.

Tighten
11 N.m (97 lb in)

Front Side Door Window Front Channel
TIP: Inspect the window for proper operation before installing the door trim panel.
