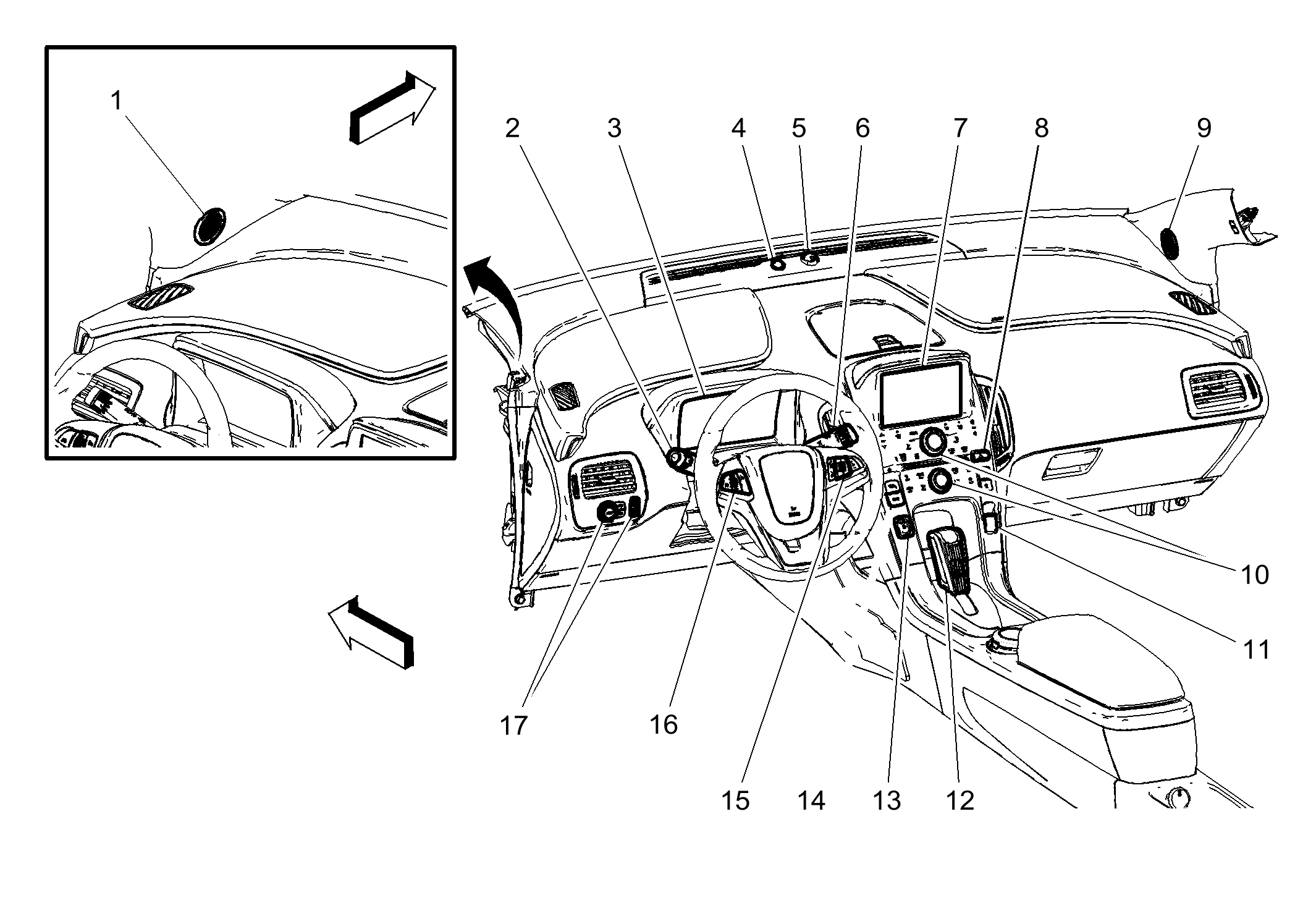

Instrument Panel Components (1 of 2)
Instrument Panel Components (1 of 2)
| Items |
|---|
| 1: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter |
| 2: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 3: P16 Instrument Cluster P16 Instrument Cluster |
| 4: P36 Battery State of Charge Indicator P36 Battery State of Charge Indicator |
| 5: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 6: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 7: P17 Info Display Module P17 Info Display Module X1 |
| 9: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 10: A20 Radio/HVAC Controls A20 Radio/HVAC Controls |
| 11: S91 Park Brake Control Switch S91 Park Brake Switch |
| 12: S3 Transmission Shift Lever S3 Transmission Shift Lever |
| 13: S83 Vehicle On/Off Switch S83 Vehicle On/Off Switch |
| 14: S126 Drive Mode Select Switch (LHD) S126 Drive Mode Select Switch (LHD) |
| 15: S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right |
| 16: S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left |
| 17: S16 Driver Information Center Switch S16 Driver Information Center Switch |
