Engine Compartment Components - Right

Engine Compartment Components - Right

Items
1:  B75B Mass Air Flow/Intake Air Temperature Sensor B75B Mass Airflow/Intake Air Temperature Sensor
2:  Q65 Hybrid/EV Battery Pack Coolant Control Valve Q65 Hybrid/EV Battery Pack Coolant Control Valve
3:  B135 Coolant Heater Temperature Sensor B135 Coolant Heater Temperature Sensor
4:  K10 Coolant Heater Control Module K10 Coolant Heater Control Module X1K10 Coolant Heater Control Module X2
5:  G36 Auxiliary Heater Coolant Pump G36 Auxiliary Heater Coolant Pump

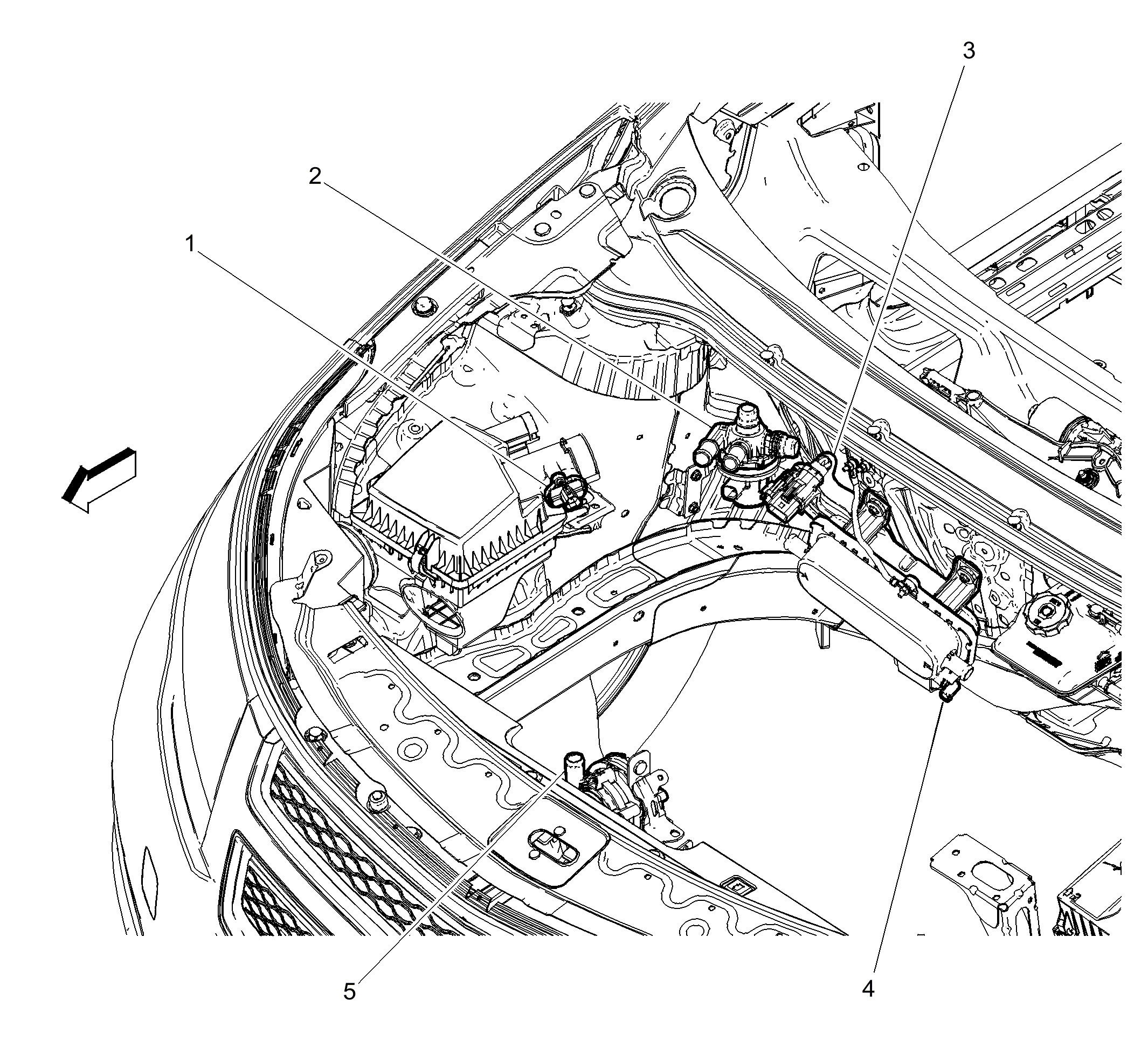

Fig 1: Engine Compartment Components - Right
GM2561453Courtesy of GENERAL MOTORS COMPANY
