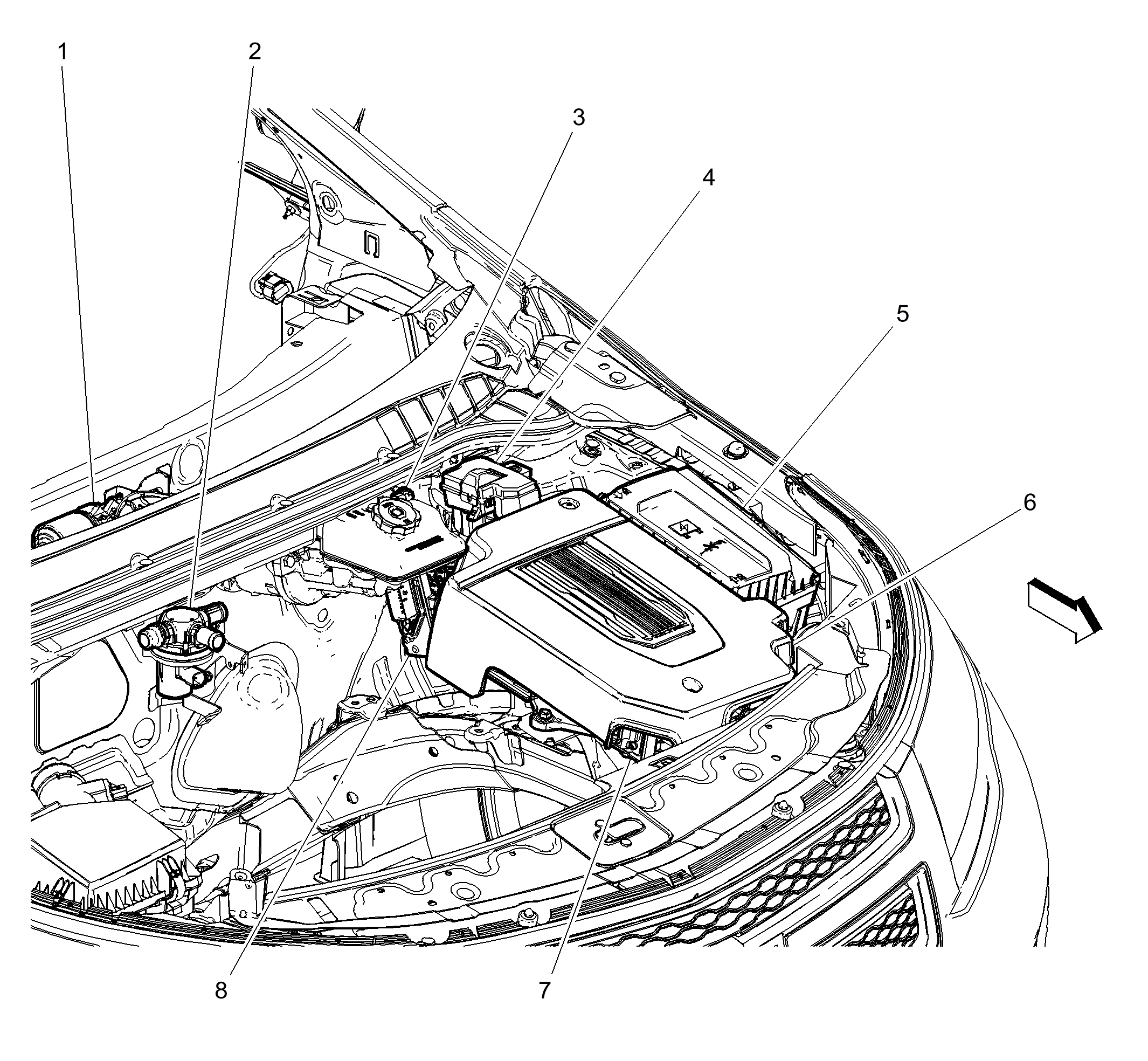

Engine Compartment Components - Left
Engine Compartment Components - Left
| Items |
|---|
| 1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 2: Q66 Passenger Compartment Heater Coolant Control Valve Q66 Passenger Compartment Heater Coolant Control Valve |
| 3: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 4: X50B Fuse Block - Underhood Auxiliary X50B Fuse Block - Underhood Auxiliary X1X50B Fuse Block - Underhood Auxiliary X2X50B Fuse Block - Underhood Auxiliary X3 |
| 5: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4 |
| 6: F103 Power Inverter Module Assembly Cable Cover F103 Power Inverter Module Assembly Cable Cover |
| 7: T6 Power Inverter Module T6 Power Inverter Module X1T6 Power Inverter Module X2T6 Power Inverter Module X3T6 Power Inverter Module X4T6 Power Inverter Module X5T6 Power Inverter Module X6T6 Power Inverter Module X7T6 Power Inverter Module X8 |
| 8: K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
