Engine Compartment Components - Front

Engine Compartment Components - Front

Items
1:  B202 Hybrid/EV Electronics Coolant Temperature Sensor B202 Hybrid Electronics Coolant Temperature Sensor
2:  G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
3:  G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right
4:  B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
5:  B55 Hood Ajar Switch B55 Hood Ajar Switch
6:  B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
7:  P12R Horn - Right P12R Horn - Right
8:  T18 Battery Charger T18 Battery Charger X1T18 Battery Charger X2T18 Battery Charger X3T18 Battery Charger X4
9:  B203 Engine Coolant Radiator Temperature Sensor B203 Engine Coolant Radiator Temperature Sensor
10:  B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
11:  G37 Hybrid/EV Battery Pack Coolant Pump G37 Hybrid Battery Pack Coolant Pump
12:  G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid Electronics Coolant Pump
13:  P12L Horn - Left P12L Horn - Left
14:  K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3
16:  G24 Windshield Washer Pump G24 Windshield Washer Pump
17:  B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left

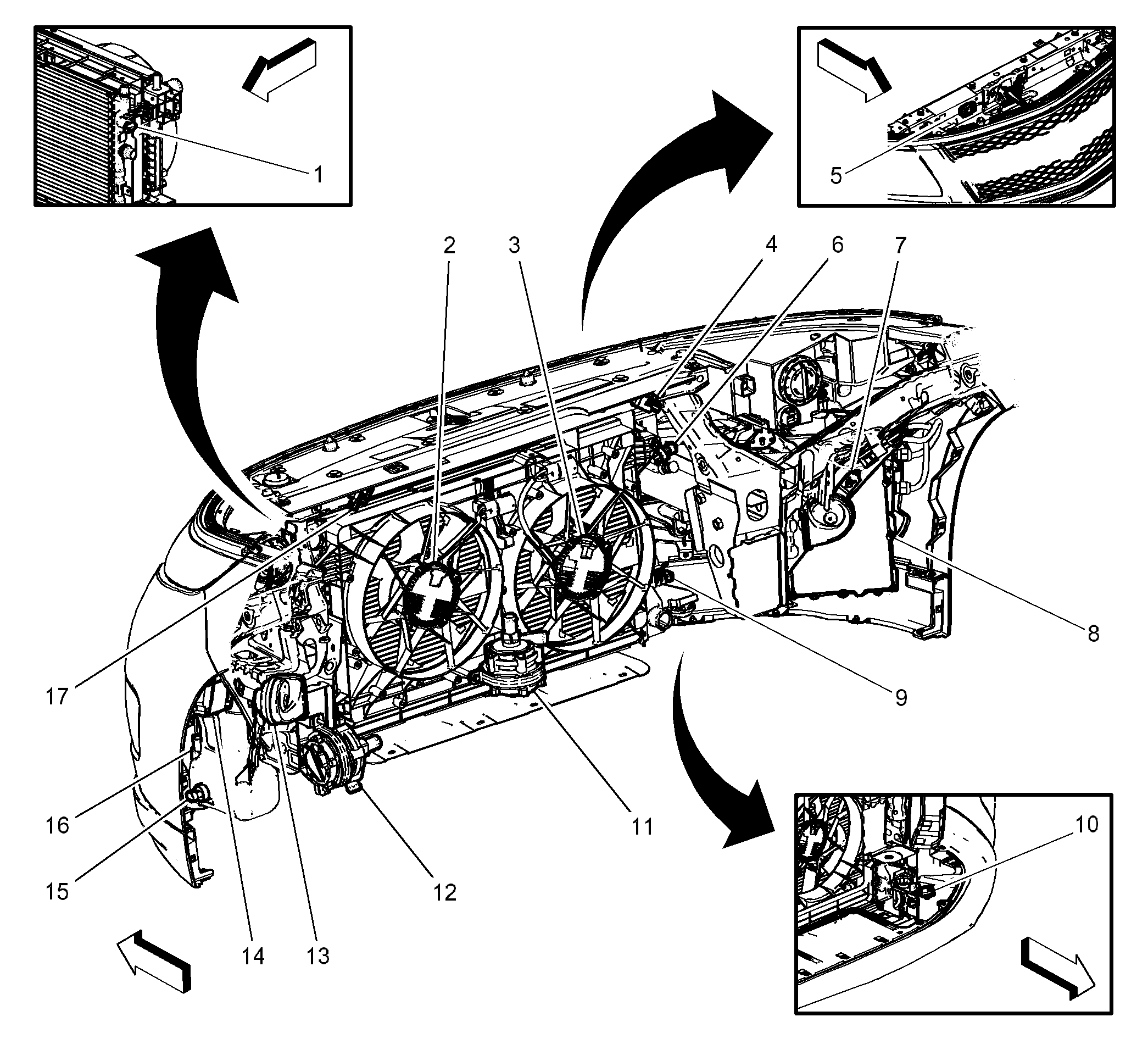

Fig 1: Engine Compartment Components - Front

Courtesy of GENERAL MOTORS COMPANY
