Instrument Panel Components (2 of 2)

Instrument Panel Components (2 of 2)

Items
1:  K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3
2:  K89 Immobilizer Control Module K89 Immobilizer Control Module
3:  E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle
4:  B101 Immobilizer Antenna
5:  A11 Radio A11 Radio X1A11 Radio X4
6:  B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
7:  B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor
8:  T15 Navigation Antenna Signal Splitter
9:  K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Module X1 (UE1)K73 Telematics Communication Interface Module X2 (UE1)
10:  F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
11:  B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
12:  T10 Keyless Entry Antenna T10 Keyless Entry Antenna
13:  F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
14:  K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7

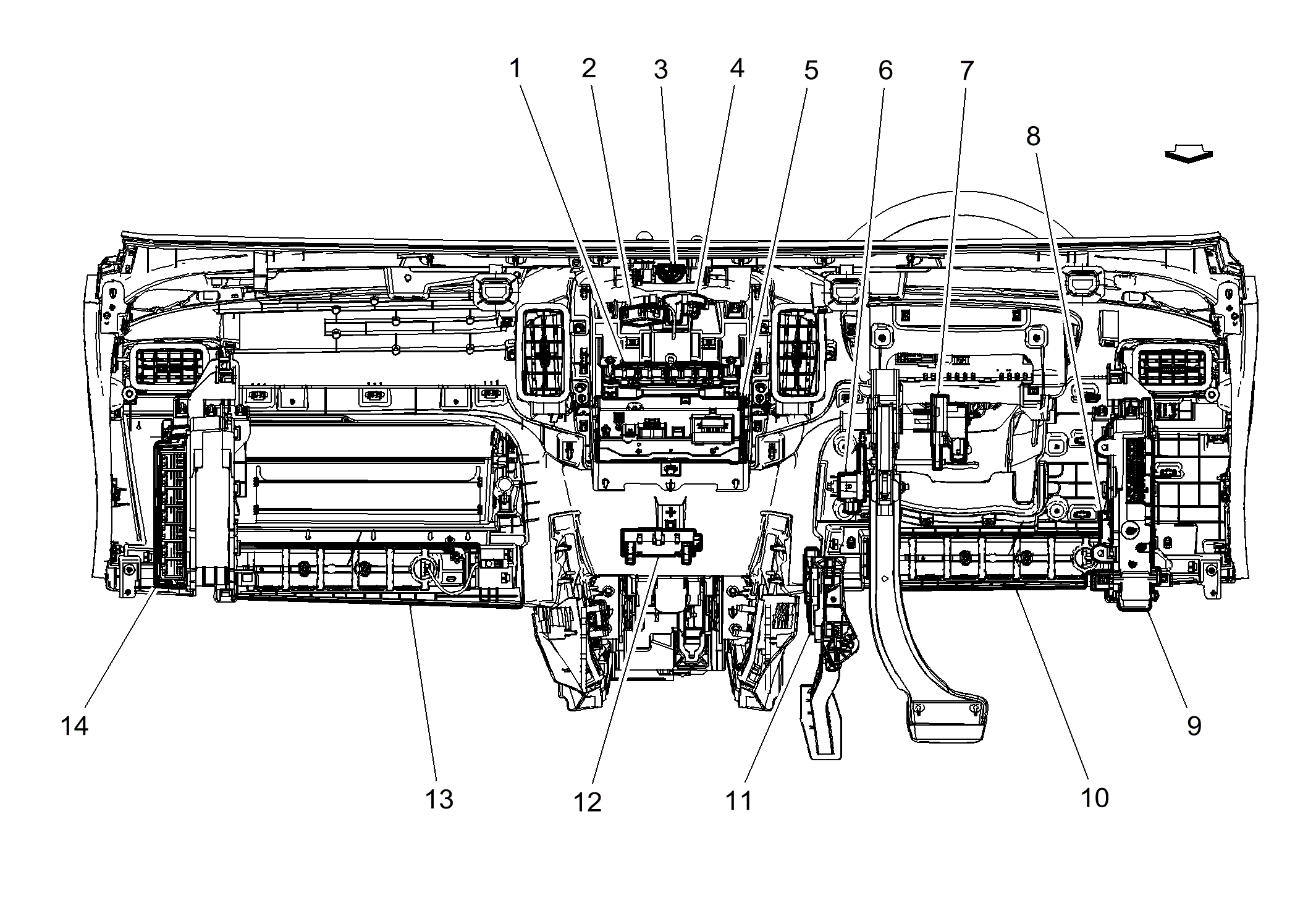

Fig 1: Instrument Panel Components (2 of 2)

Courtesy of GENERAL MOTORS COMPANY
