Auxiliary Audio Input (5JZ) Wiring Schematics

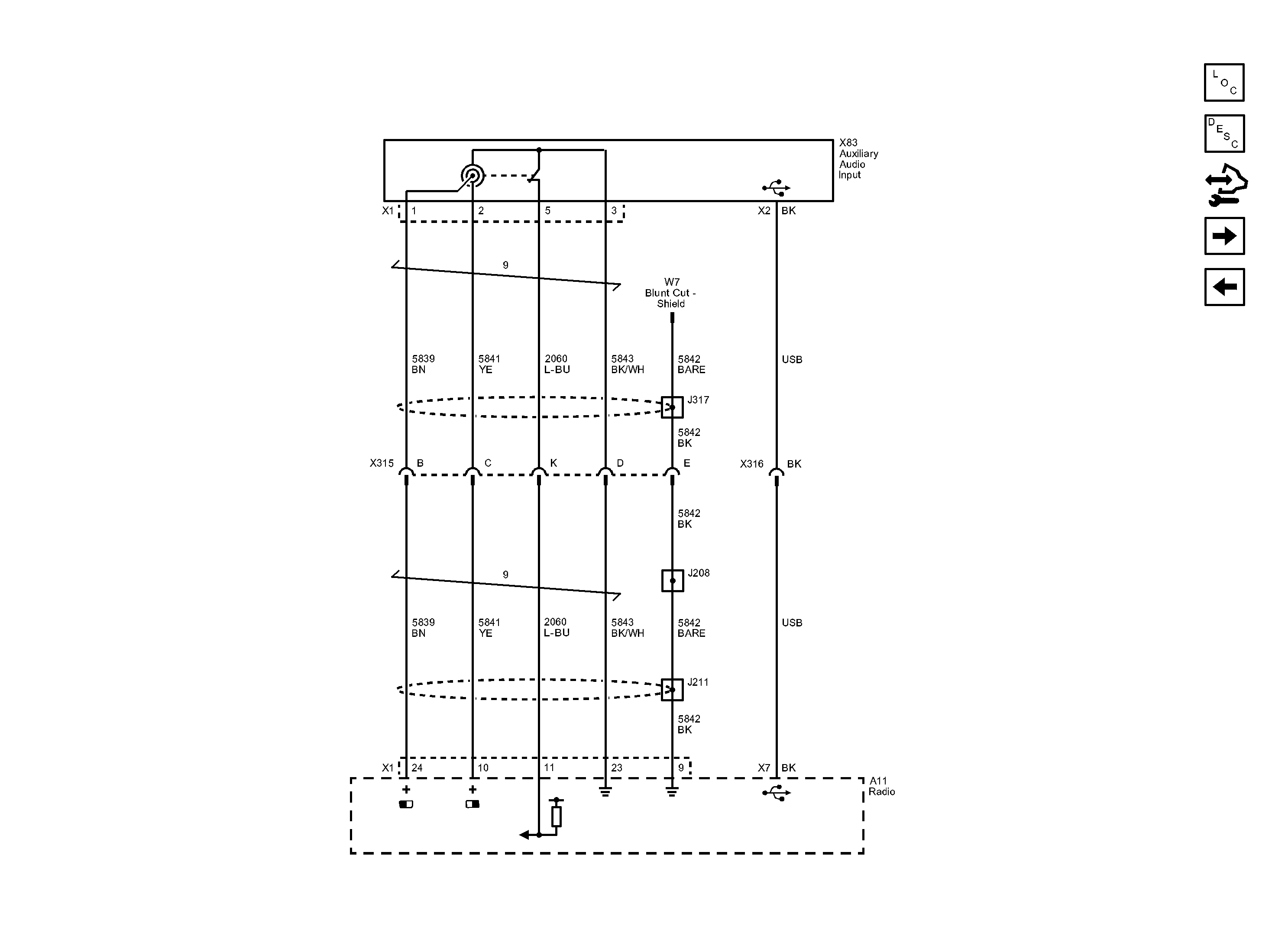

Fig 1: Auxiliary Audio Input (5JZ) Wiring Schematics

GM2812559

Courtesy of GENERAL MOTORS COMPANY
