Amplifier Inputs (UQA) Wiring Schematics

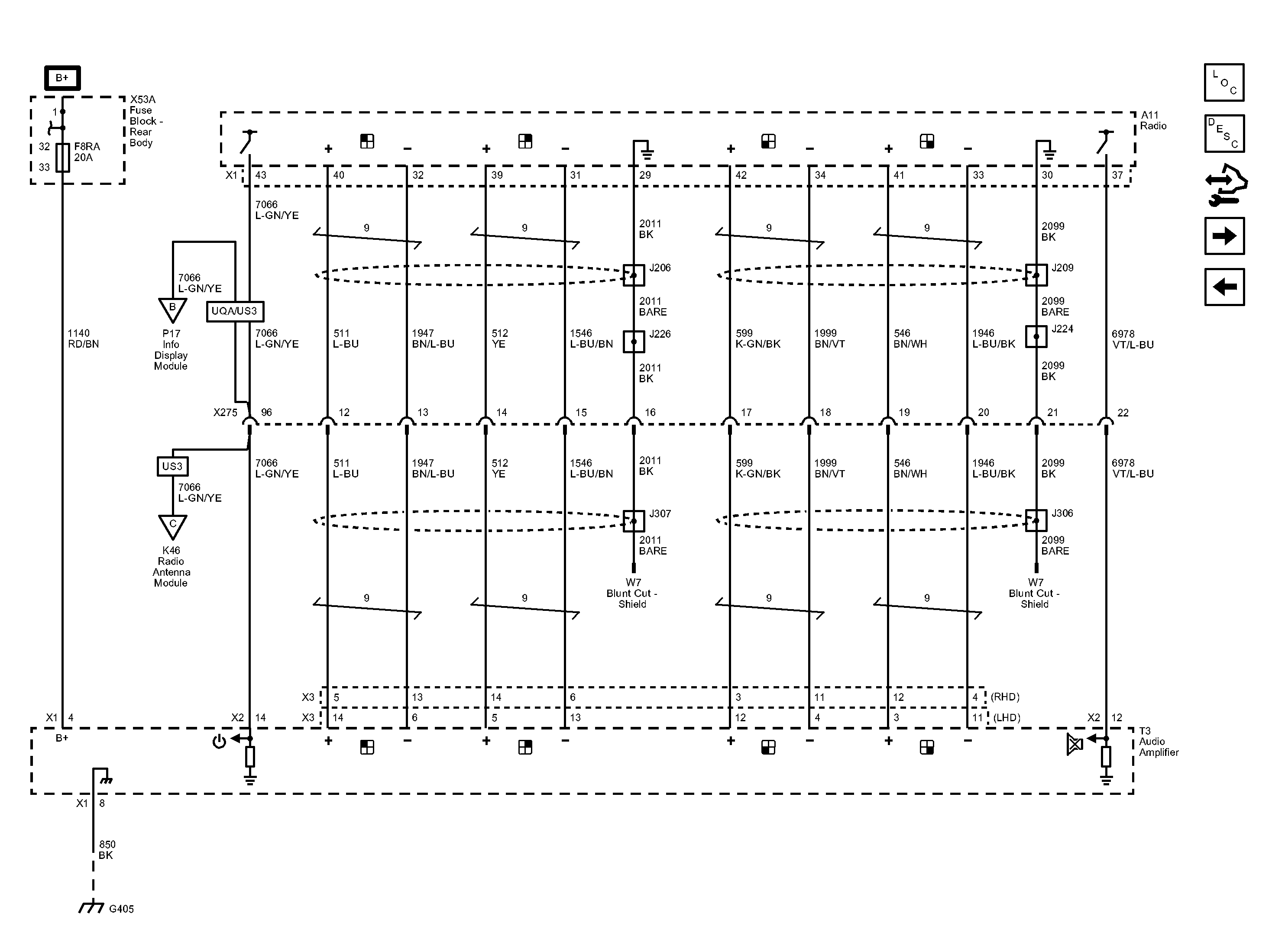

Fig 1: Amplifier Inputs (UQA) Wiring Schematics

GM2812553

Courtesy of GENERAL MOTORS COMPANY
