Communication Interface Module Bracket Replacement (RHD)

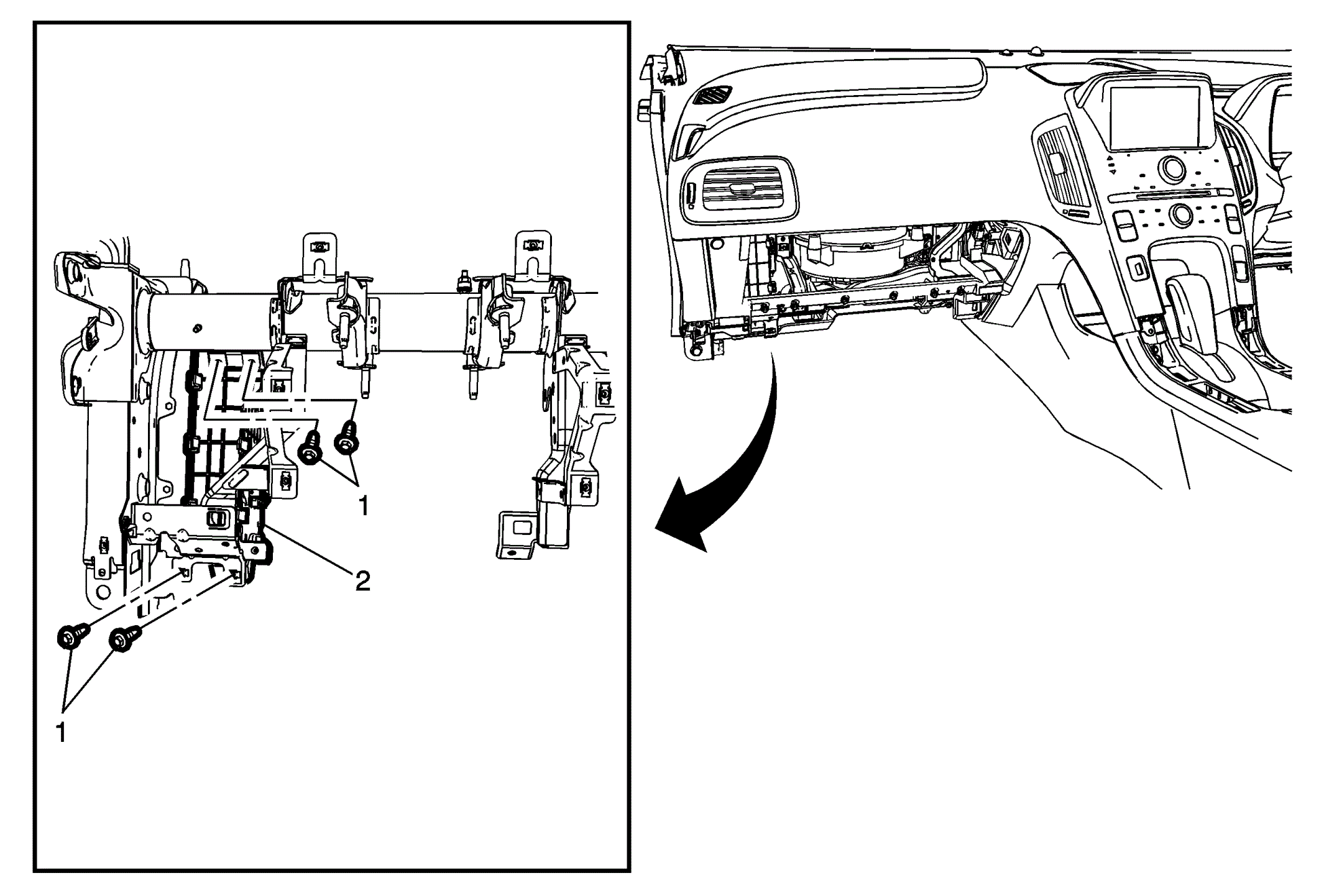

Fig 1: Communication Interface Module Bracket
GM2856802Courtesy of GENERAL MOTORS COMPANY
Communication Interface Module Bracket Replacement (RHD)

Callout Component Name
Preliminary Procedure
Remove the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement .
1 Communication Interface Module Bracket Bolts (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Communication Interface Module Bracket

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
