Installation Procedure

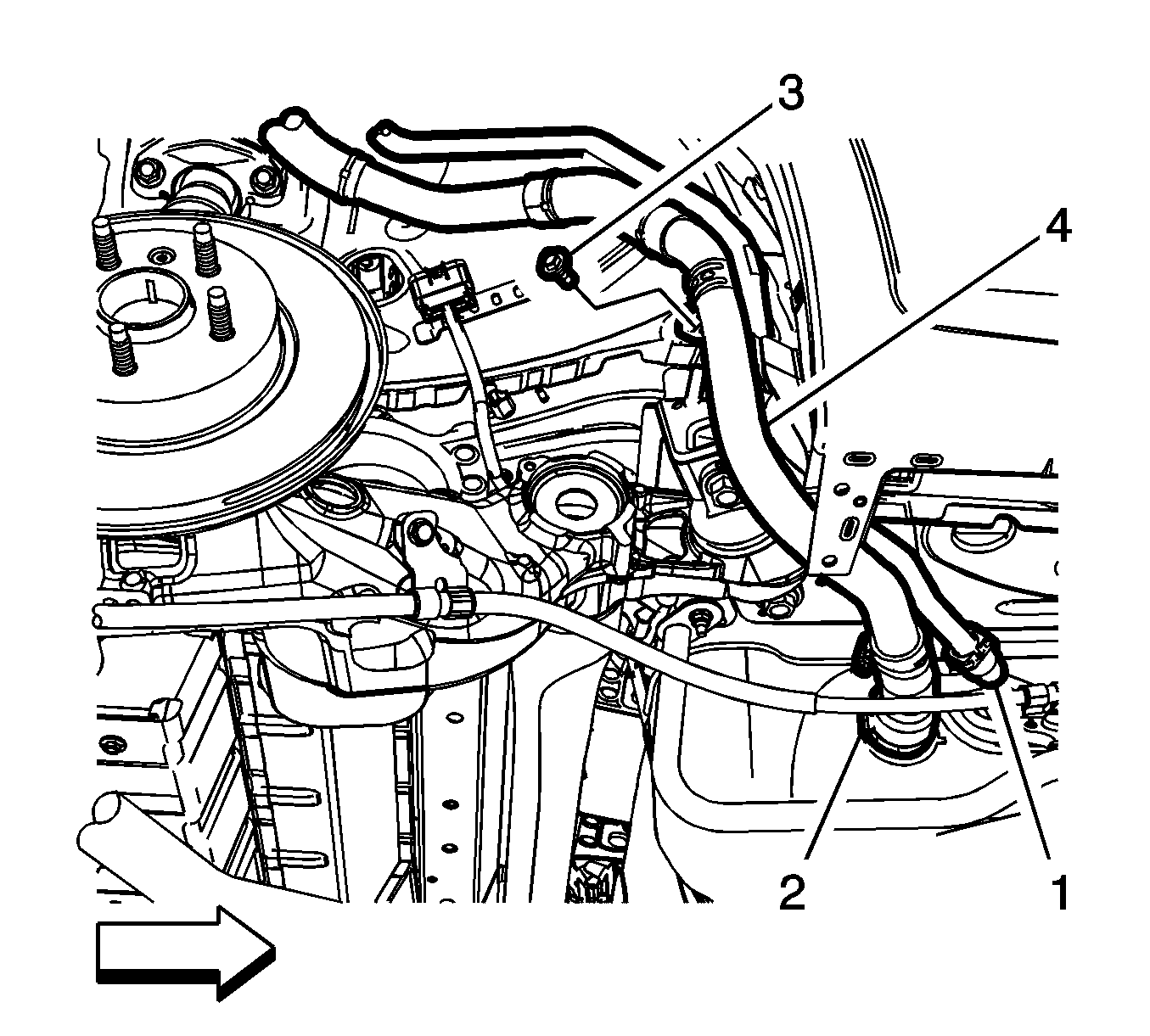

    Fig 1: Fuel Tank Filler Pipe And Clamp
    GM2781136Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel tank filler pipe (4) to the vehicle.
  2. Install the fuel tank filler pipe fastener (3) and tighten to 9 (80 lb in).
  3. Connect the fuel tank filler pipe quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service .
  4. Install the fuel tank filler pipe clamp (2).
  5. Lower the vehicle.

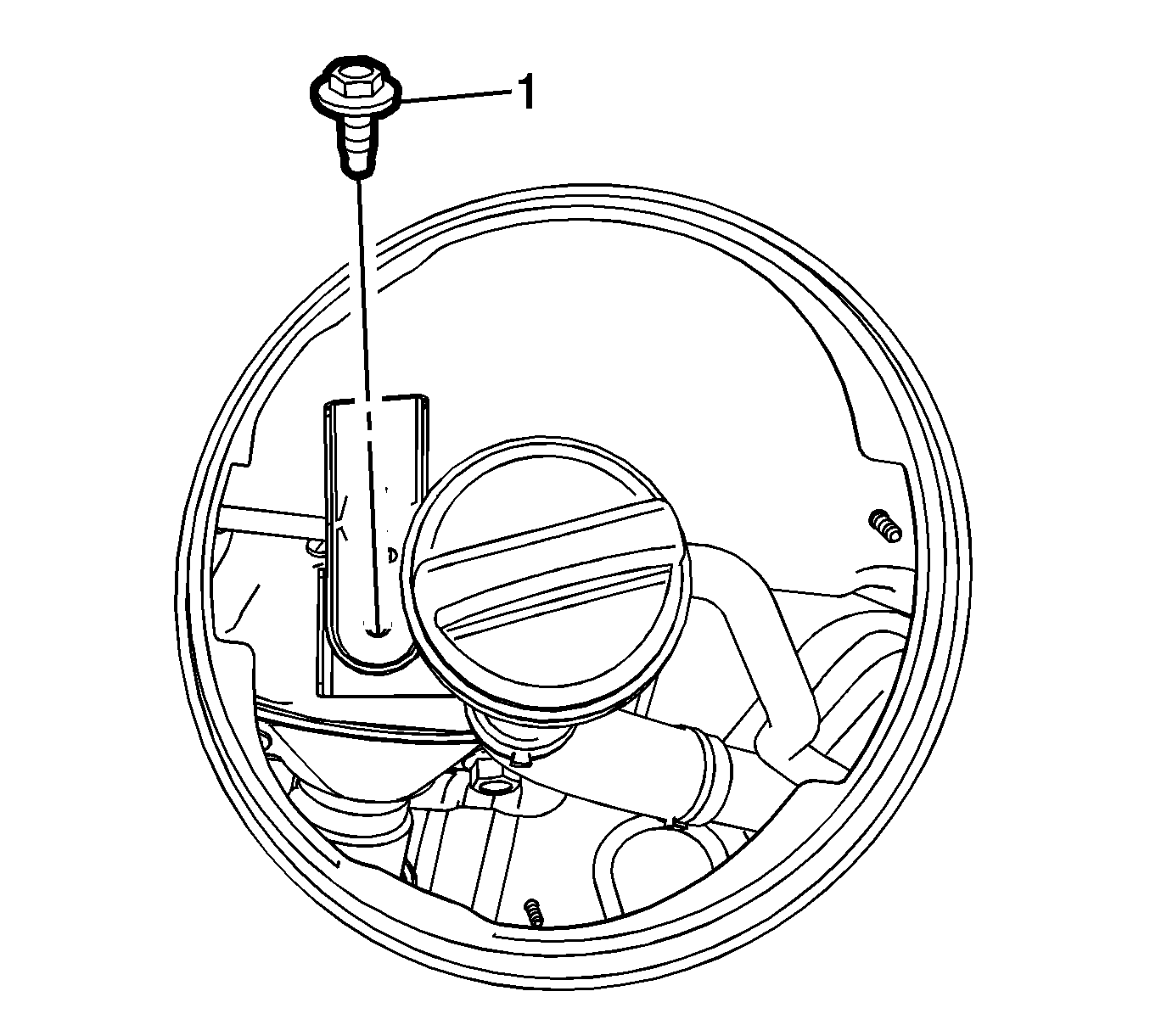

    6. Fig 2: Fuel Tank Filler Pipe Fastener
    GM2781141Courtesy of GENERAL MOTORS COMPANY
  6. Install the fuel tank filler pipe fastener (1) and tighten to 9 (80 lb in).
  7. Install the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
  8. Install the right rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
