Installation Procedure

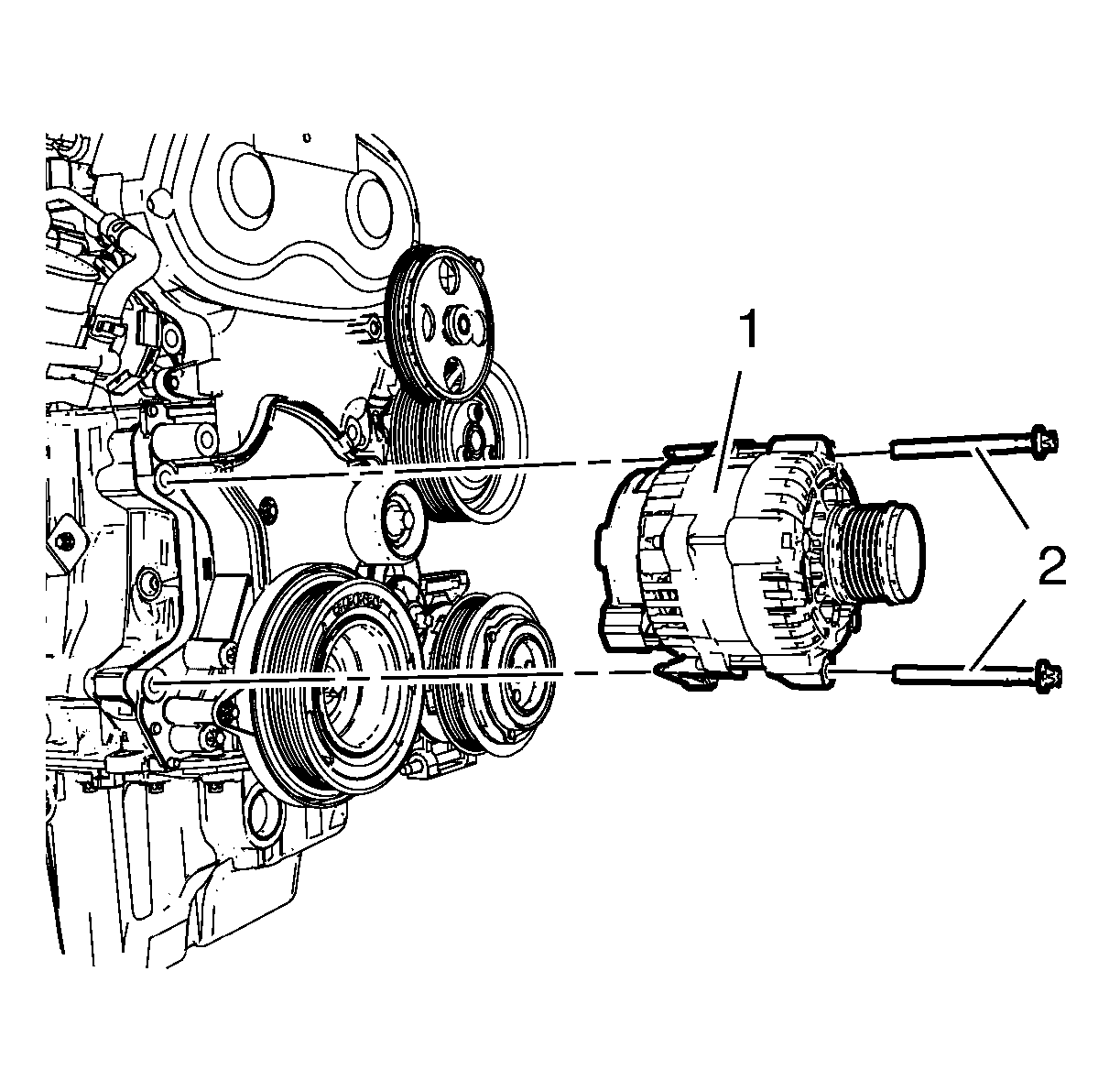

    Fig 1: Generator Bolts
    GM2027790Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 generator fasteners (2) and tighten to 35 N.m (26 lb ft).

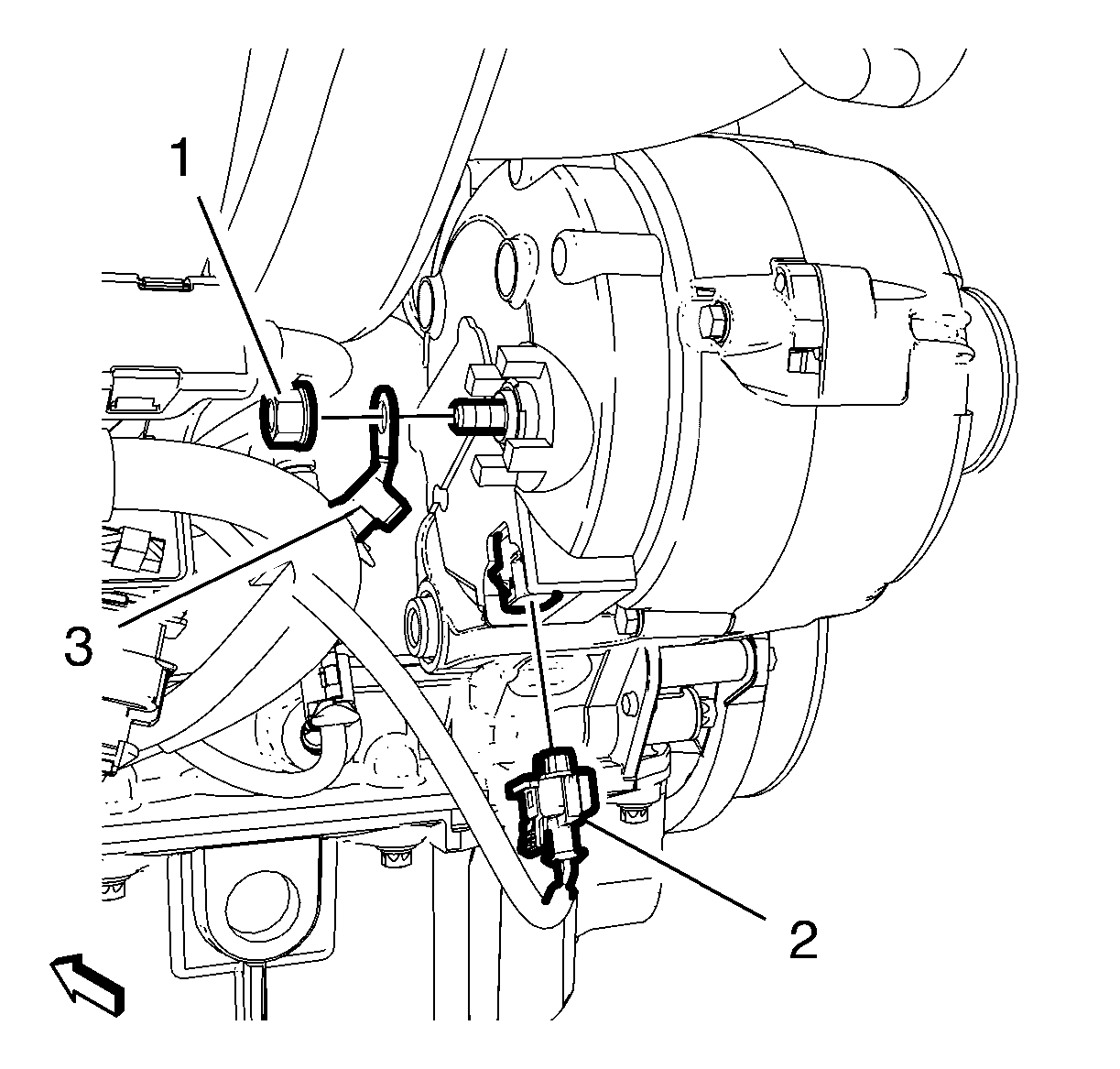

    3. Fig 2: Generator Positive Cable Nut And Nut
    GM2757769Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive cable (3) and tighten the fastener (1) to 17 N.m (13 lb ft).
  4. Connect the engine wiring harness connector (2).
  5. Install the right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side .
  6. Install the drive belt. Refer to Drive Belt Replacement .
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
