Sunroof Window Replacement - Rear

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

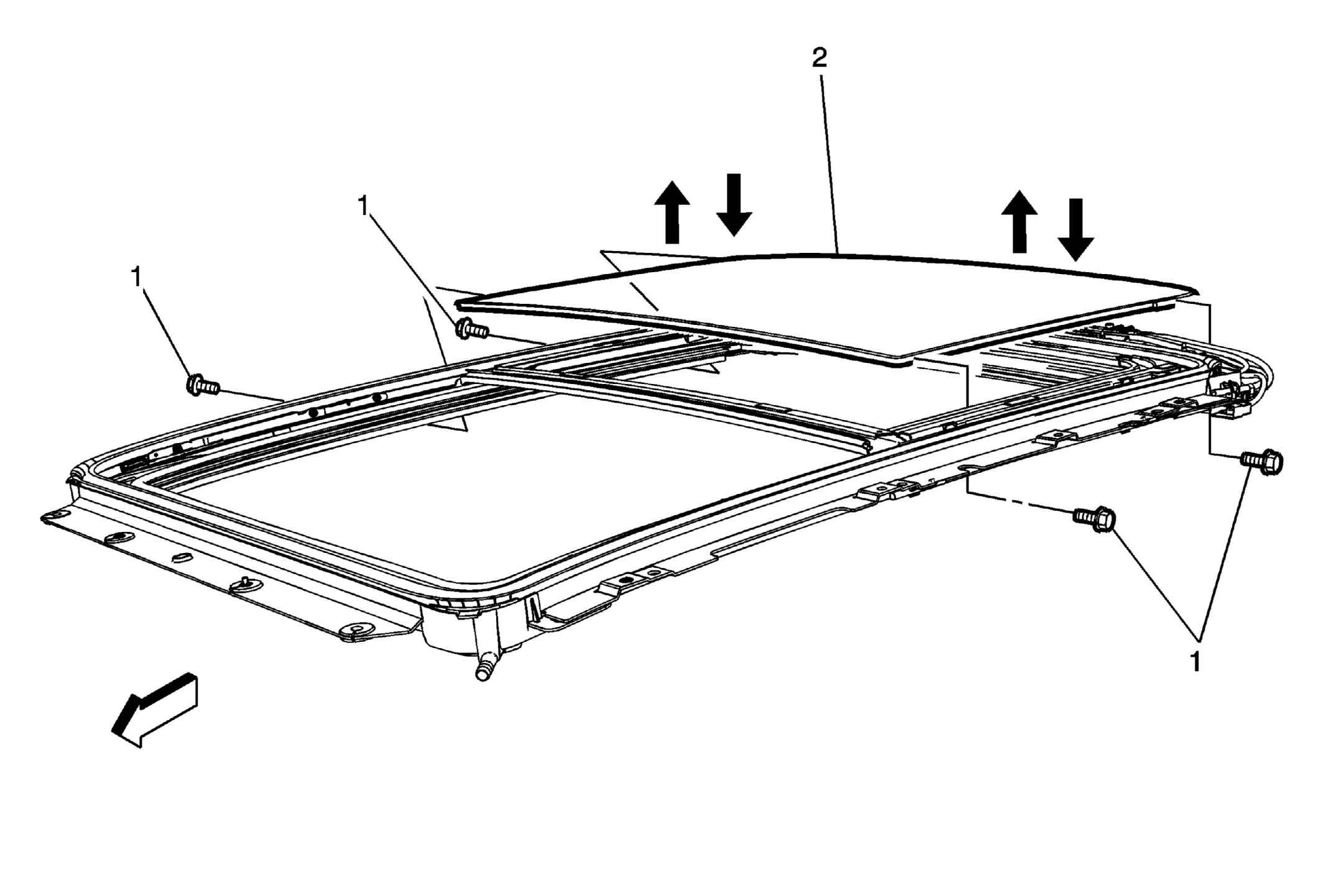

Fig 1: View Of Sunroof Window - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Window Screws (Qty: 4) CAUTION: Refer to Fastener Caution . Procedures Open the sunshade. Pull down on the inner seal to expose the screws on both sides of the window. Remove the sunroof window bolts, two on each side. Tighten 4 N.m (35 lb in)
2	Sunroof Window Procedure Place the sunroof window on a soft surface. Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .

Callout

Component Name

Sunroof Window Screws (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Procedures

Open the sunshade.
Pull down on the inner seal to expose the screws on both sides of the window.
Remove the sunroof window bolts, two on each side.

Tighten
4 N.m (35 lb in)

Sunroof Window

Procedure

Place the sunroof window on a soft surface.
Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
