Rear License Plate Lamp Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

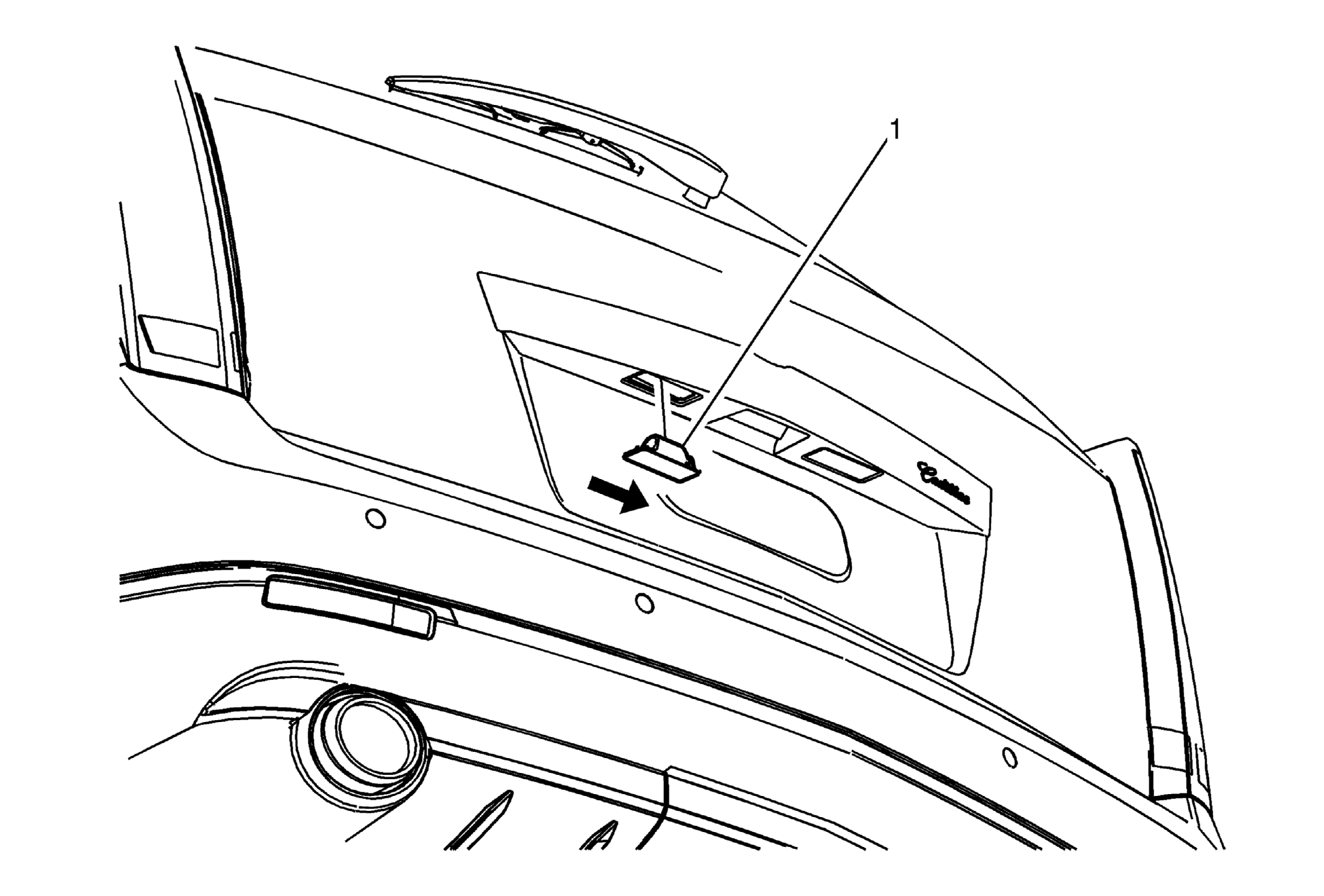

Fig 1: Rear License Plate Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear License Plate Lamp Procedure Position a flat bladed plastic tool on the drivers side end of the rear license plate lamp to compress the retainer on the passenger side end and release the rear license plate lamp from the liftgate center applique. Disconnect bulb socket connector. NOTE: Both rear license plate lamps release in the same direction.

Callout

Component Name

Rear License Plate Lamp

Procedure

Position a flat bladed plastic tool on the drivers side end of the rear license plate lamp to compress the retainer on the passenger side end and release the rear license plate lamp from the liftgate center applique.
Disconnect bulb socket connector.

NOTE:

Both rear license plate lamps release in the same direction.
