Front Side Door Trim Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

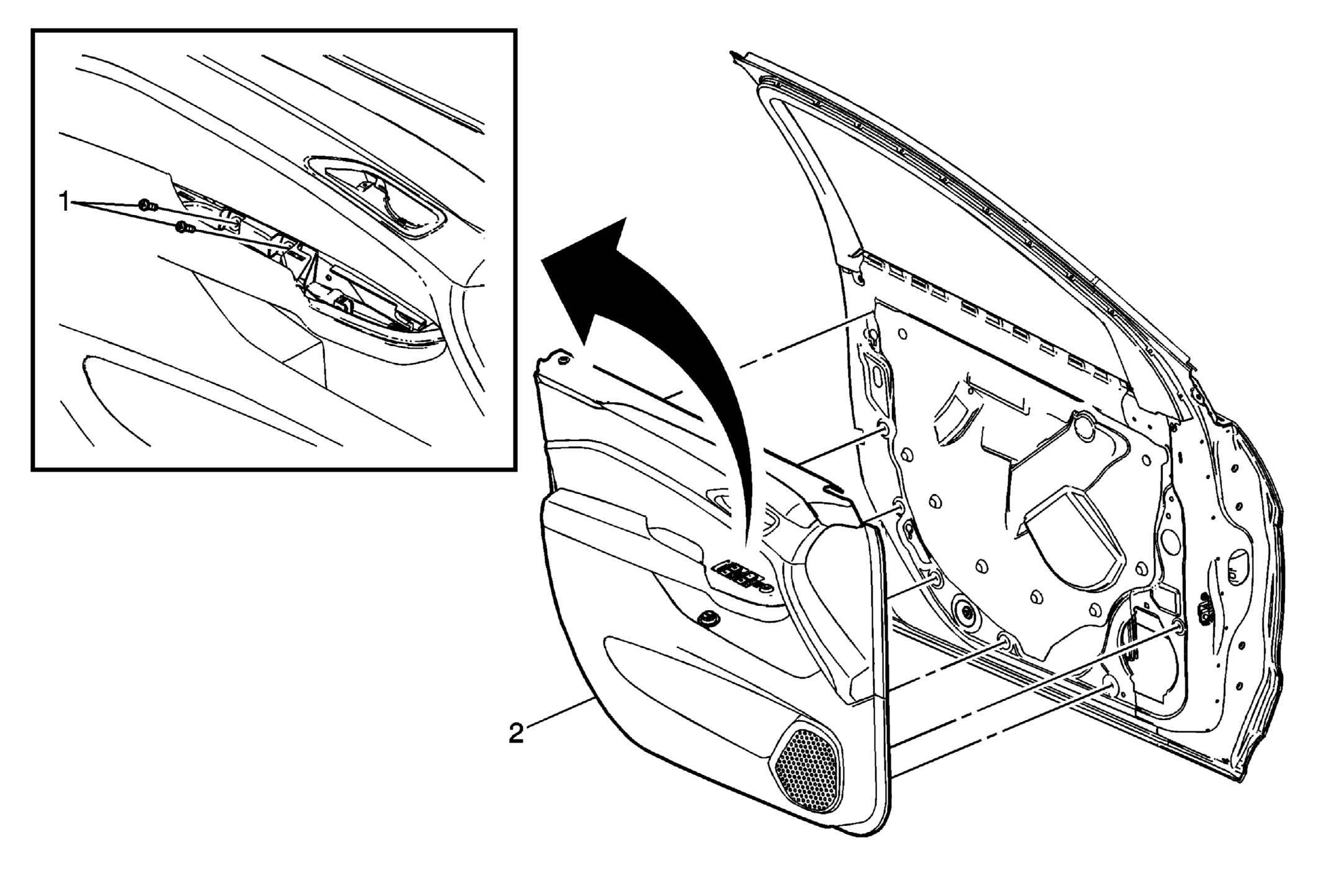

Fig 1: View Of Front Side Door Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .
1	Front Side Door Pull Handle Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Side Door Trim Panel Procedure Use a door trim tool or equivalent to aid in the removal of the door trim. Disconnect the inside handle release cable from the trim panel. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure:
Remove the front side door accessory switch mount plate. Refer to Front Side Door Accessory Switch Mount Plate Replacement .

Front Side Door Pull Handle Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Front Side Door Trim Panel

Procedure

Use a door trim tool or equivalent to aid in the removal of the door trim.
Disconnect the inside handle release cable from the trim panel.
Disconnect the electrical connectors.
