Center Pillar Lower Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

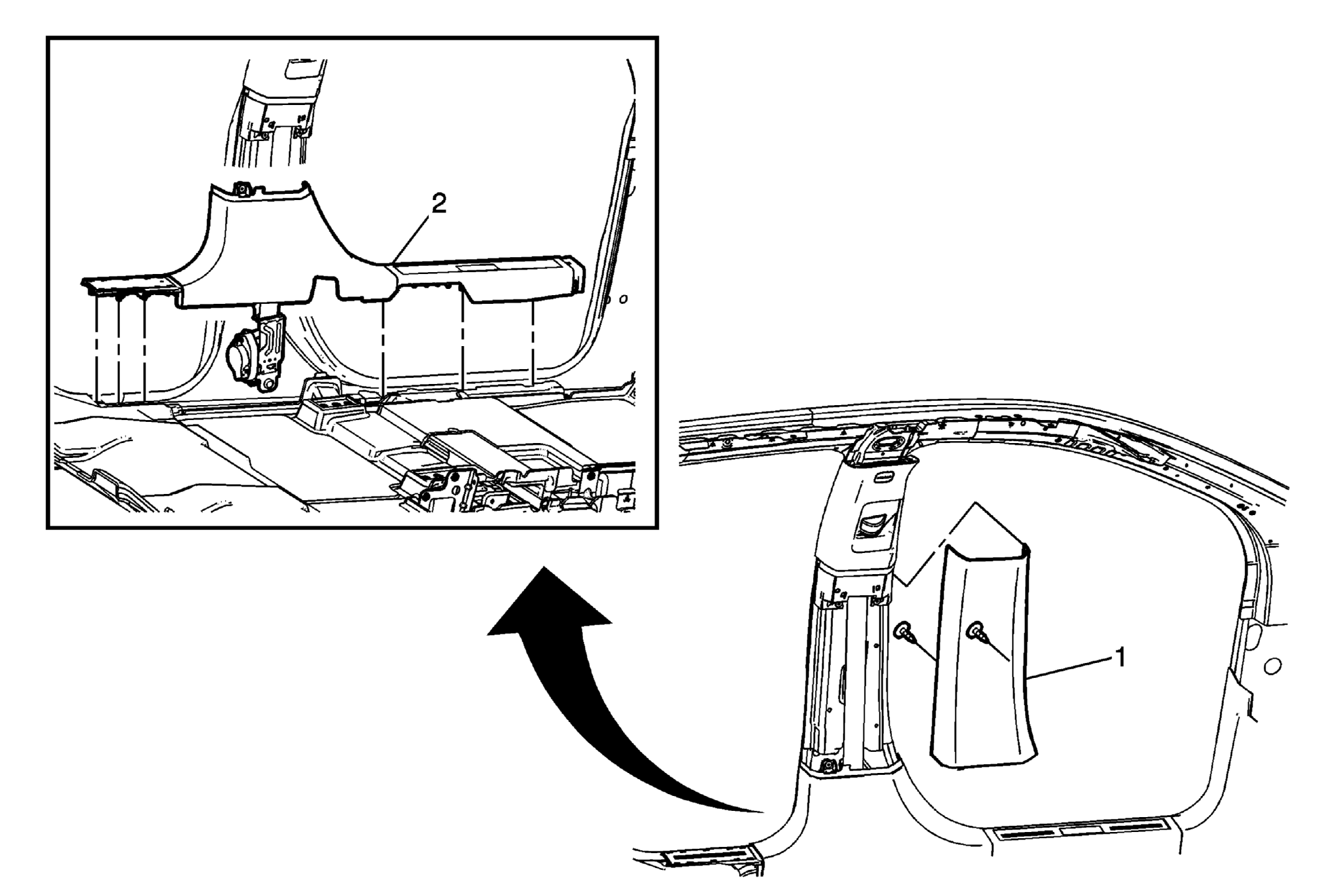

Fig 1: Locating Center Pillar Lower Trim Panel
GM2233755Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
1 Center Pillar Lower Trim Panel Assembly
Procedure:
Grasp both sides and pull out toward the inside of the vehicle to release the 2 push pins on the backside.
2 Center Pillar Lower Trim
Procedure:
Disconnect the electrical connector, if equipped.
