Installation Procedure

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

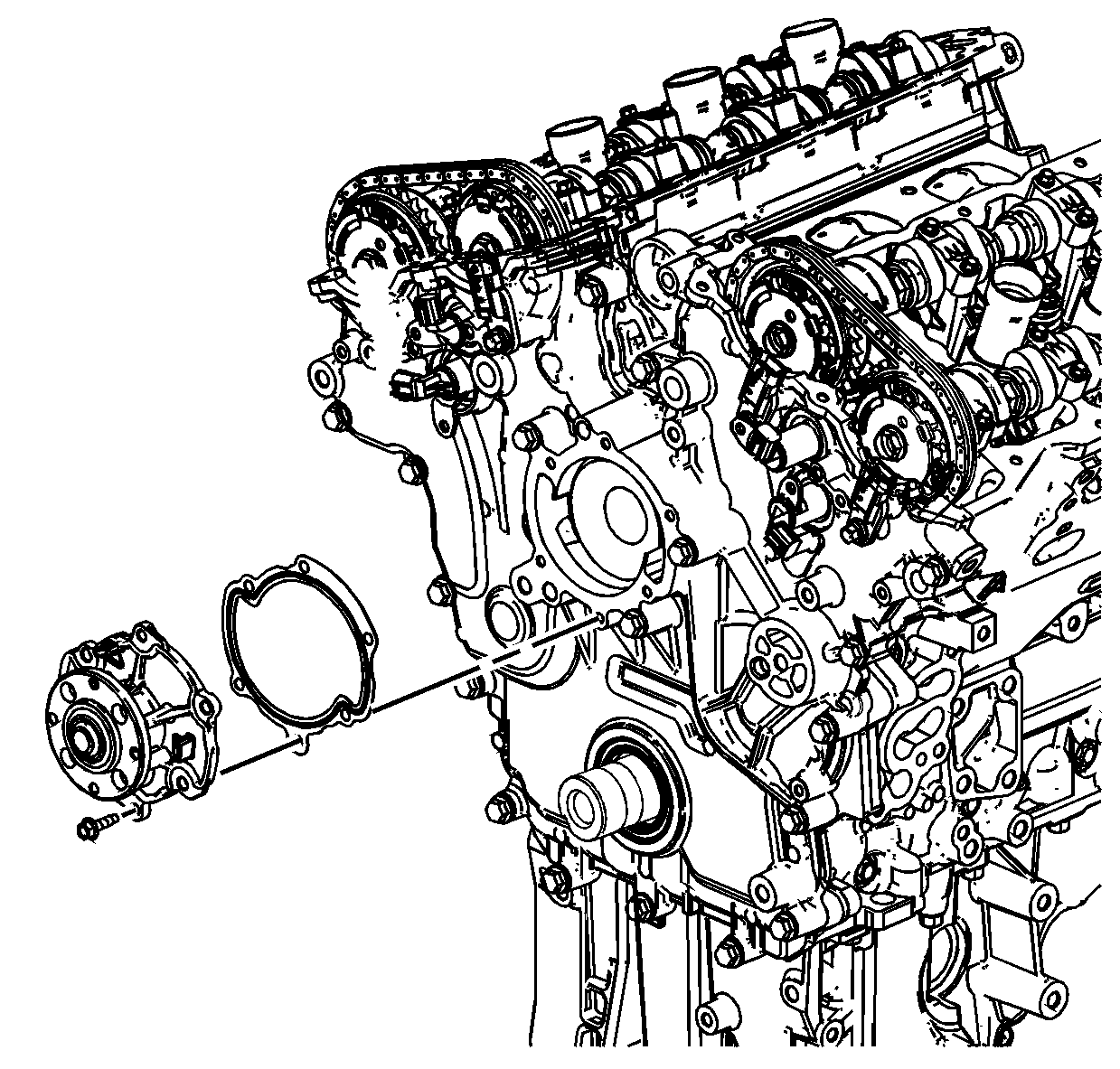

Fig 1: View Of Water Pump

Courtesy of GENERAL MOTORS COMPANY

Install a NEW water pump seal.
Install the water pump.

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

CAUTION:

Refer to Fastener Caution .

Install the NEW water pump fasteners and hand tighten the water pump fasteners.

Fig 2: Water Pump Bolts Tightening Sequence

Courtesy of GENERAL MOTORS COMPANY

Tighten the water pump fasteners in sequence.
1. On the initial pass, tighten the fasteners in sequence to 10 N.m (89 lb in).
2. On the second pass, tighten the fasteners in sequence to 10 N.m (89 lb in).
3. On the final pass, tighten the fasteners in sequence shown an additional 45 degrees.

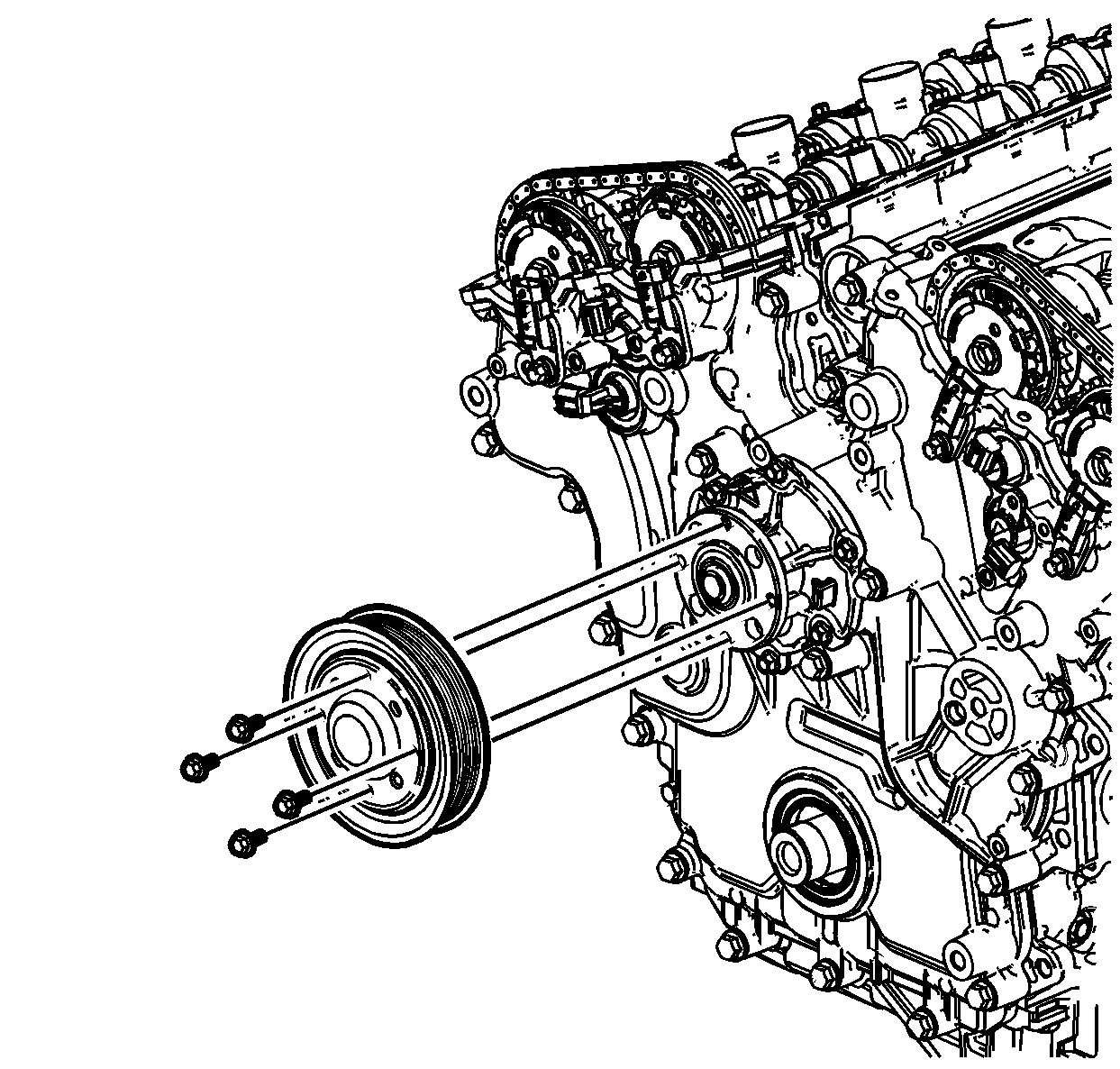

Fig 3: View Of Water Pump Pulley

Courtesy of GENERAL MOTORS COMPANY

Install the water pump pulley and the pump pulley fasteners.

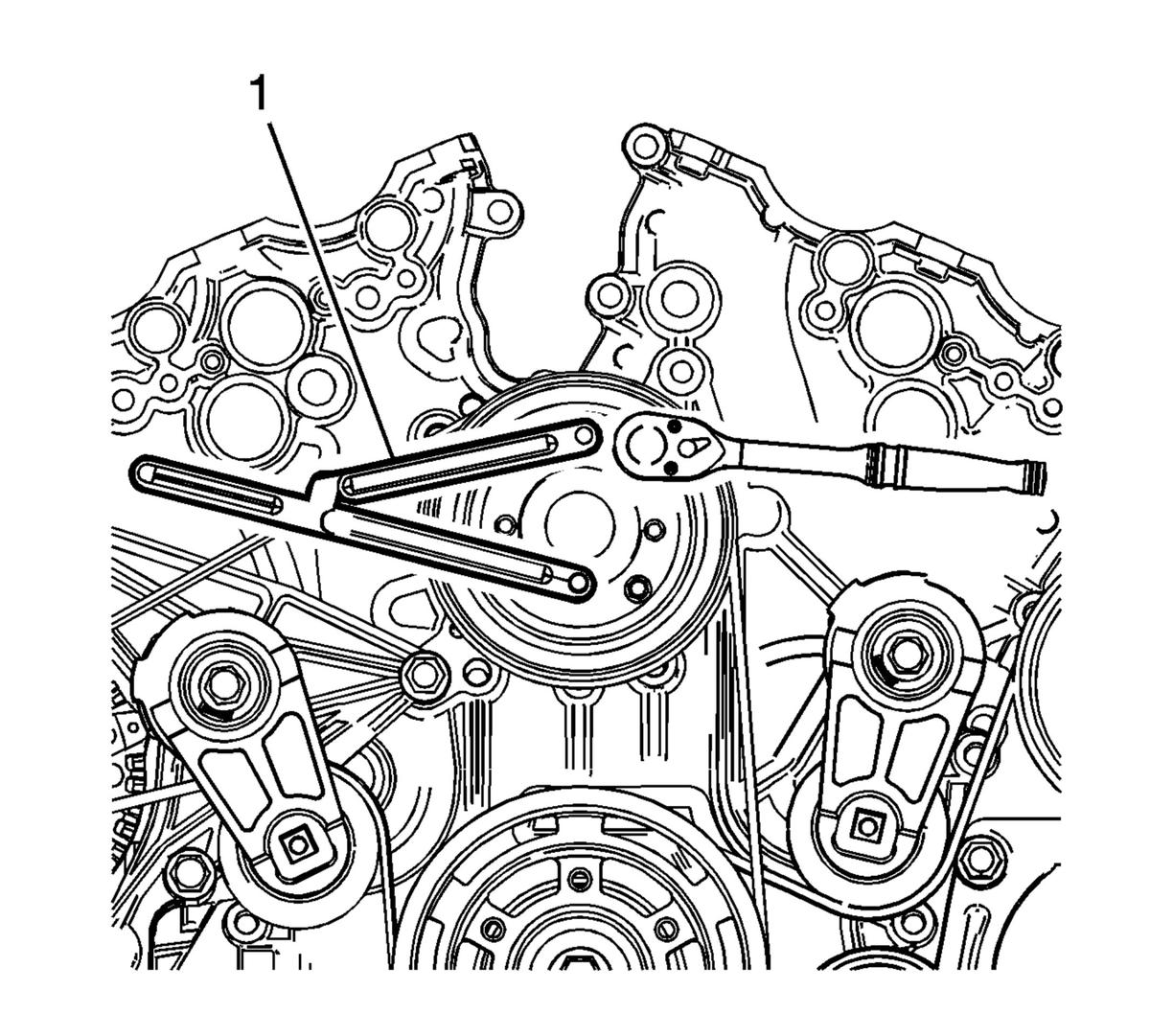

Fig 4: Securing Water Pump Pulley With EN 46104

Courtesy of GENERAL MOTORS COMPANY

Use the EN 46104 water pump pulley holder (1) to hold the pulley.
Install the water pump pulley fasteners and tighten to 12 N.m (108 lb in) .
Install the generator drive belt. Refer to Drive Belt Replacement .
Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static Fill) .
