Rear Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

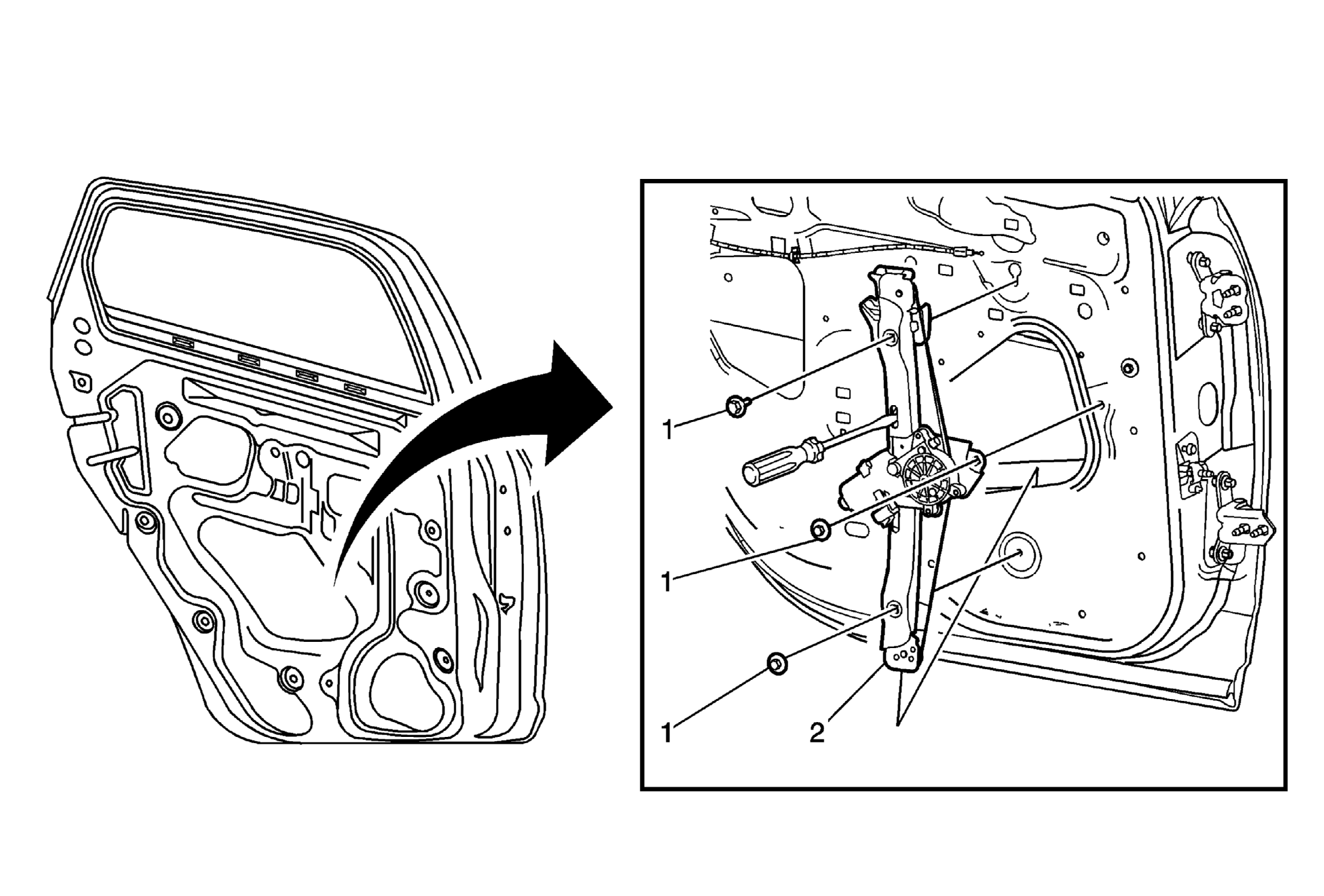

Fig 1: Identifying Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement
1	Rear Side Door Window Regulator Guide Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution Procedure Remove the rear side door water deflector. Position window to access the rear side door window regulator guide bolts. Loosen the nuts on the window regulator guide. Raise the window to the fully up position, tape in place. Tighten: 11 N.m (98 lb in)
2	Rear Side Door Window Regulator CAUTION: Refer to Fastener Caution Procedure: Disconnect the electrical connector from the motor.

Callout

Component Name

Preliminary Procedures:
Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement

Rear Side Door Window Regulator Guide Fasteners (Qty: 3)

CAUTION: Refer to Fastener Caution

Procedure

Remove the rear side door water deflector.
Position window to access the rear side door window regulator guide bolts.
Loosen the nuts on the window regulator guide.
Raise the window to the fully up position, tape in place.

Tighten: 11 N.m (98 lb in)

Rear Side Door Window Regulator

CAUTION: Refer to Fastener Caution

Procedure:
Disconnect the electrical connector from the motor.
