Radio Rear Compartment Speaker Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

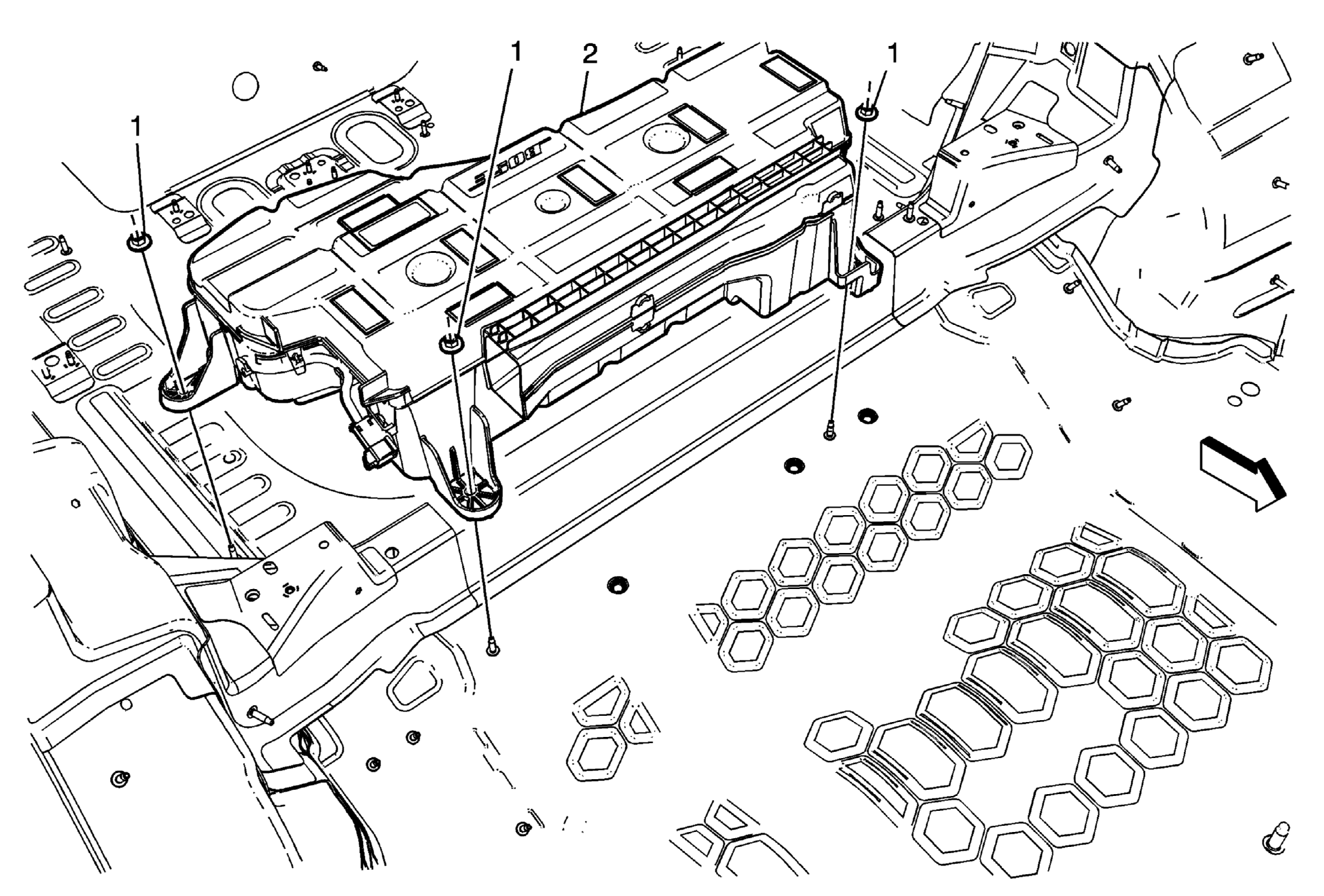

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment floor stowage compartment trim. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement . |
|
| 1 | Radio Rear Compartment Speaker Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Radio Rear Compartment Speaker Procedure Disconnect the electrical connection. |
