Windshield Garnish Molding Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

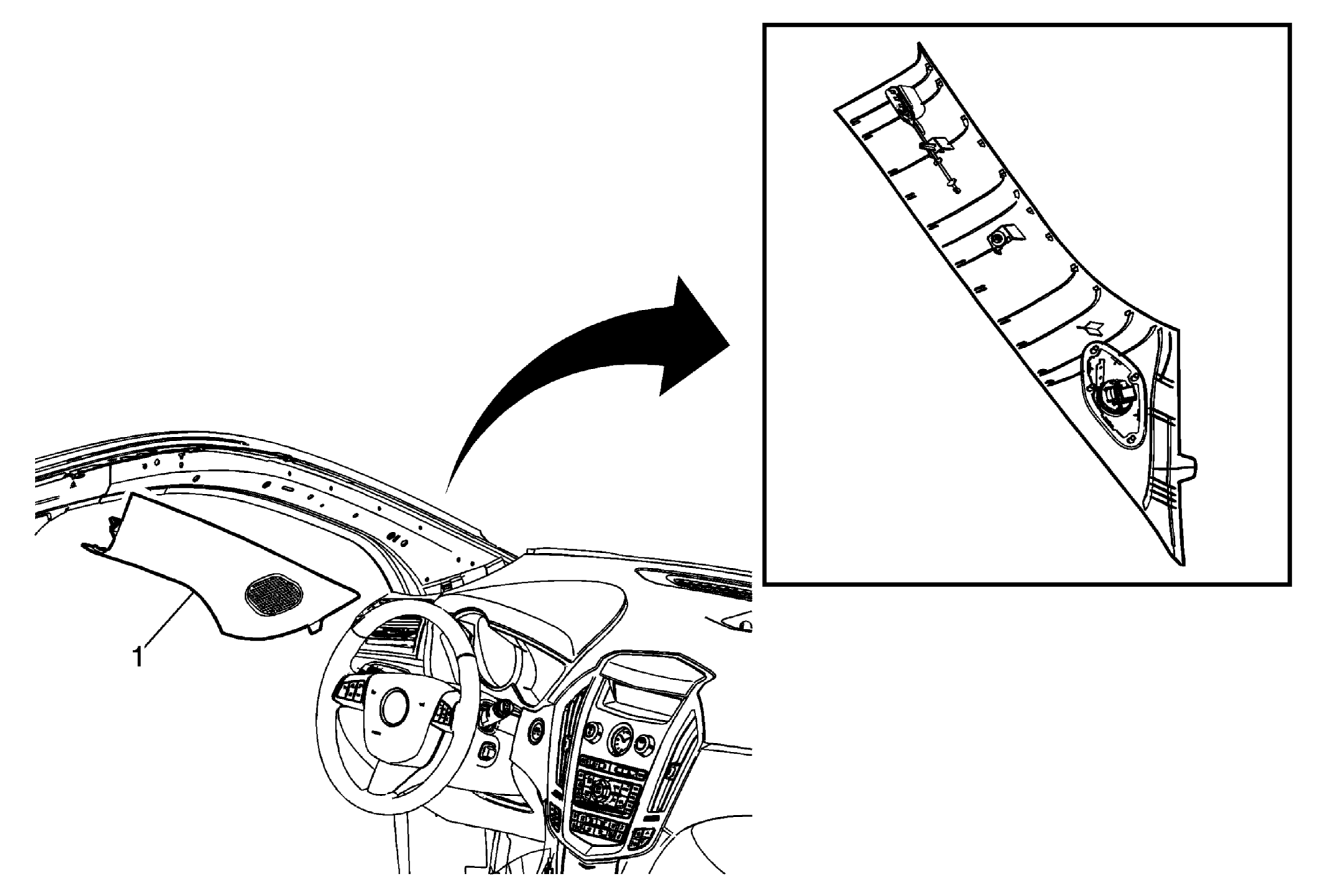

Fig 1: Identifying Windshield Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Garnish Molding Assembly Procedure Starting at the top, gently pull on the garnish molding to disengage the clip. Tab must be installed prior to retainer clip. Tab to be fully seated in instrument panel trim panel retainer and valance panel. Disconnect the electrical connector. Transfer all necessary components. The tether clip at the upper portion of the garnish molding MUST be replaced every time the windshield garnish molding is removed.

Callout

Component Name

Windshield Garnish Molding Assembly

Procedure

Starting at the top, gently pull on the garnish molding to disengage the clip.
Tab must be installed prior to retainer clip.
Tab to be fully seated in instrument panel trim panel retainer and valance panel.
Disconnect the electrical connector.
Transfer all necessary components.
The tether clip at the upper portion of the garnish molding MUST be replaced every time the windshield garnish molding is removed.
