Rear License Plate Lamp Bulb Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear license plate lamp. Refer to, Rear License Plate Lamp Replacement . |
|

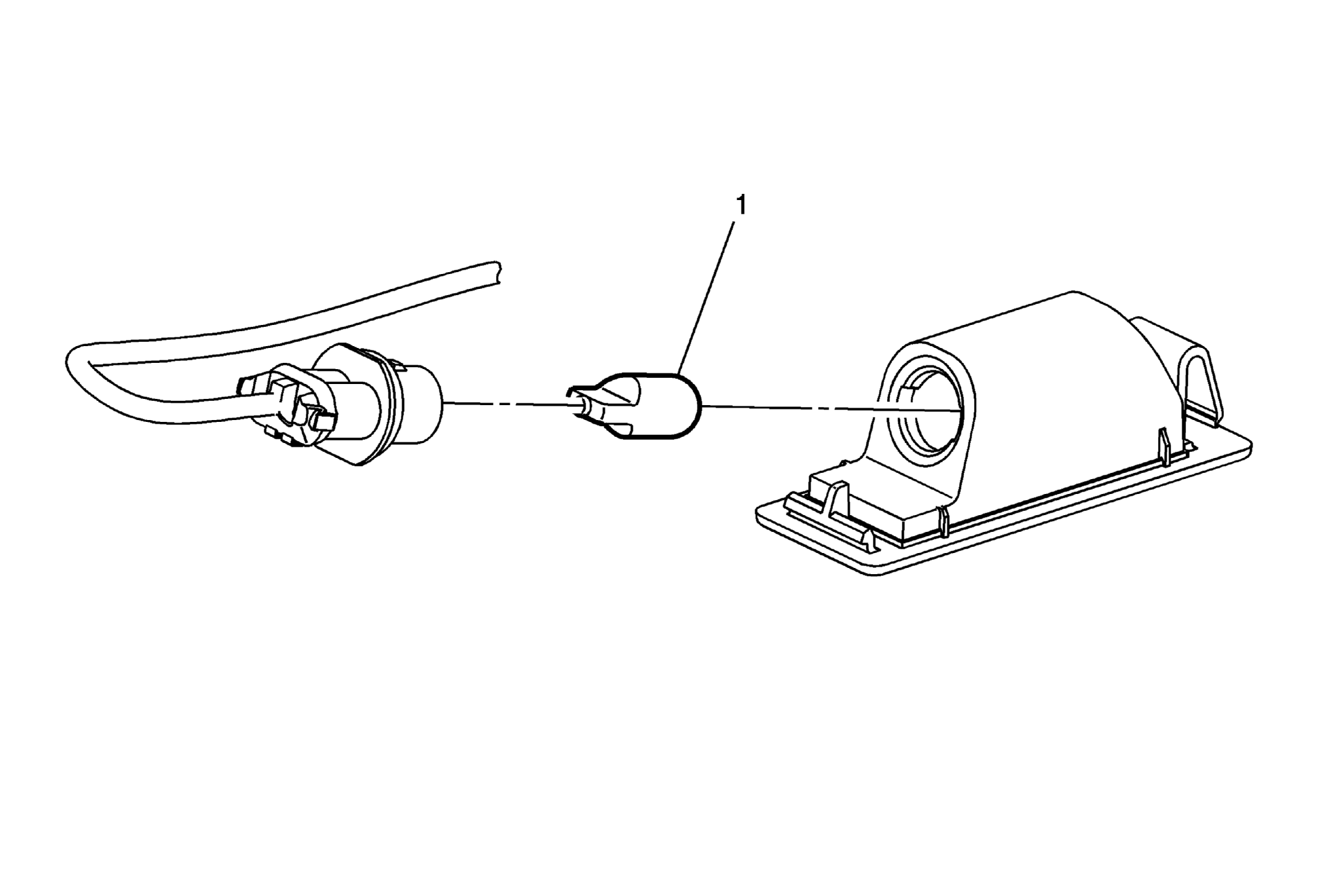

| 1 | Rear License Plate Lamp Bulb Procedure Hold the rear license bulb socket connector and pull the bulb straight out. |
