Water Pump Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

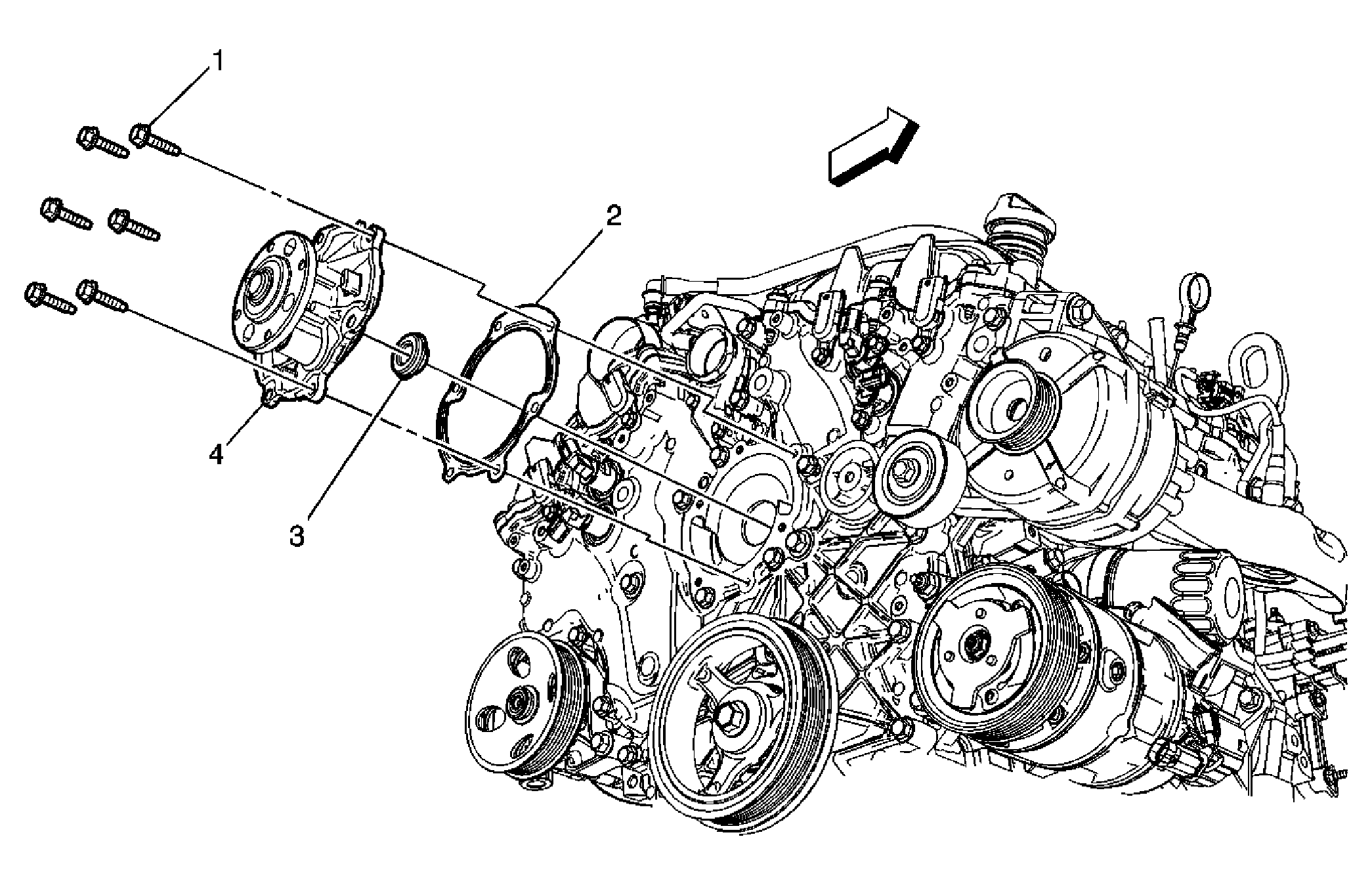

Fig 1: Identifying Water Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) . Remove the drive belt. Refer to Drive Belt Replacement . Clean gasket surfaces and replace water pump seal and gasket.
1	Water Pump Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (88 lb in)
2	Water Pump Gasket
3	Water Pump Seal
4	Water Pump
