Engine Coolant Fan Resistor Replacement - Left Side
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

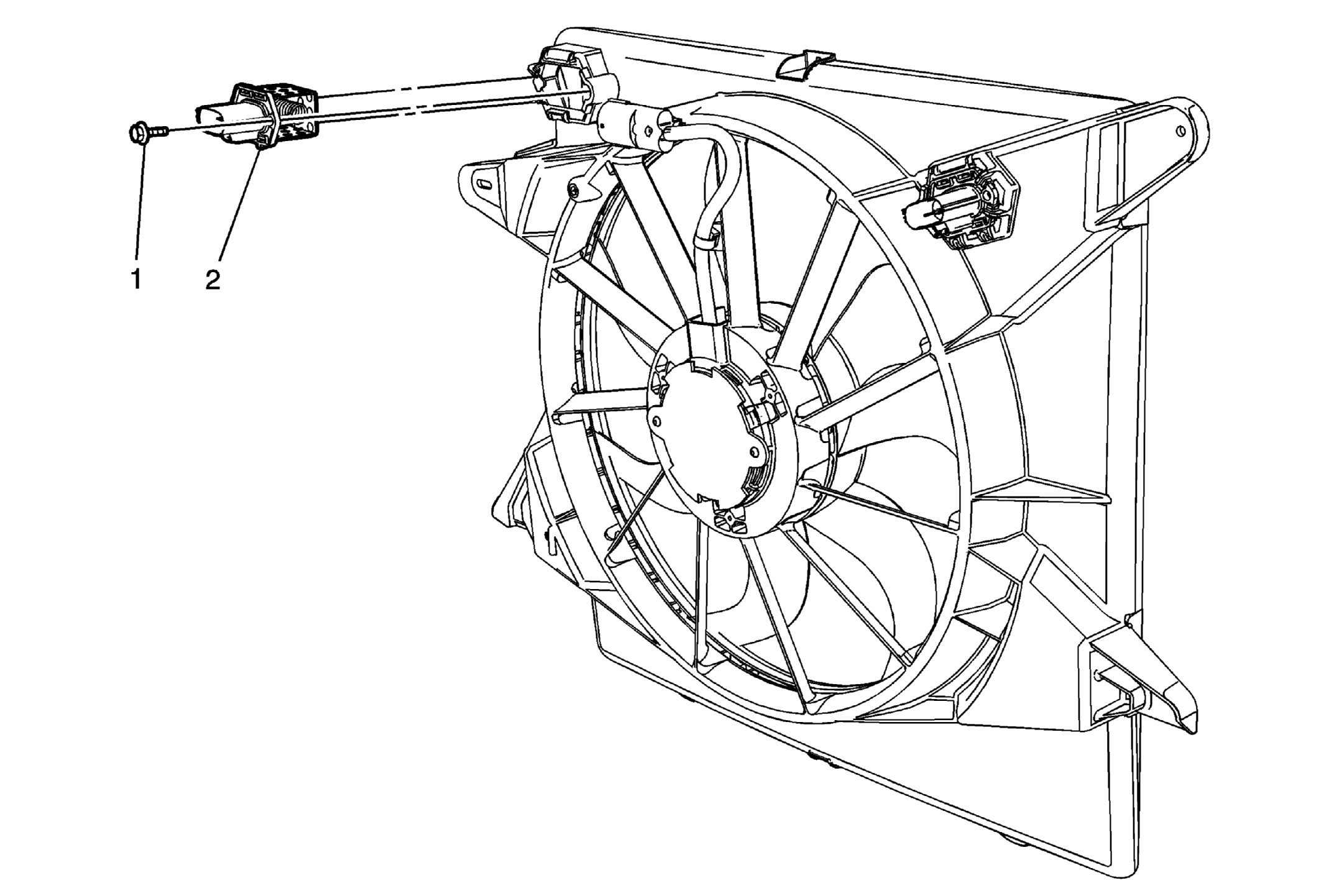

| Callout | Component Name |
|---|---|
| Preliminary Procedures Disconnect the engine cooling fan resistor electrical connector. |
|
| 1 | Engine Cooling Fan Resistor Fasteners
CAUTION:
Refer to Fastener Caution . Tighten 5.4 N.m (48 lb in) |
| 2 | Engine Cooling Fan Resistor |
