Windshield Washer Nozzle Hose Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

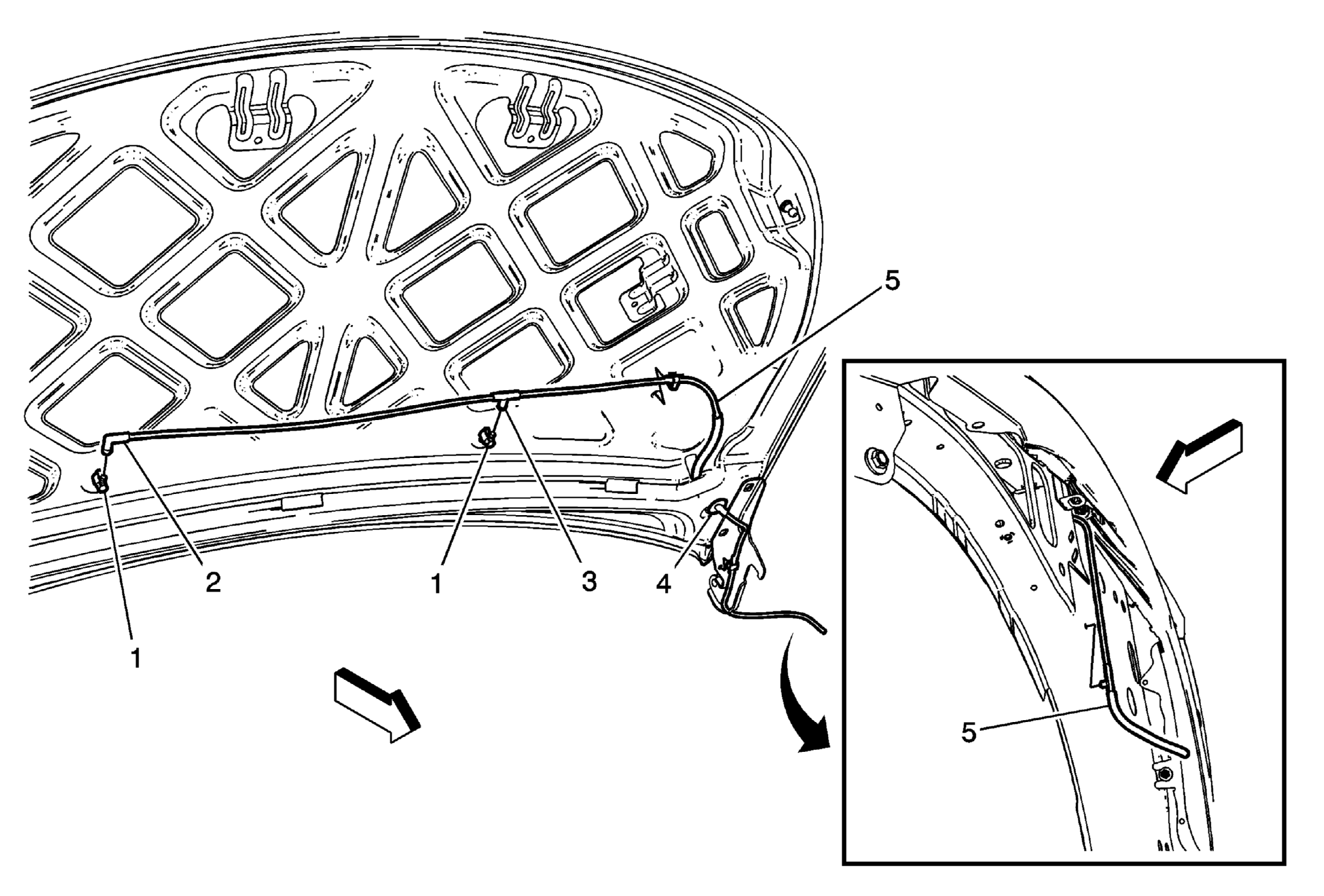

Fig 1: Identifying Windshield Washer Nozzle Hose & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement Remove the hood insulator. Refer to Hood Insulator Replacement .
1	Windshield Washer Nozzle Procedure Disconnect the washer hose.
2	Windshield Washer Nozzle Hose Assembly Elbow
3	Windshield Washer Nozzle Hose Assembly Tee
4	Windshield Washer Nozzle Hose Grommet Procedure Disconnect the windshield washer nozzle hose grommet from the hood.
5	Windshield Washer Nozzle Hose Assembly Procedure Disconnect the integral clip from the driver side hood hinge in order to release the hose from the hinge. Disconnect the integral clip from the drivers side front wheelhouse panel in order to release the windshield washer nozzle hose from the wheelhouse panel.
