Rear Window Wiper Blade Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

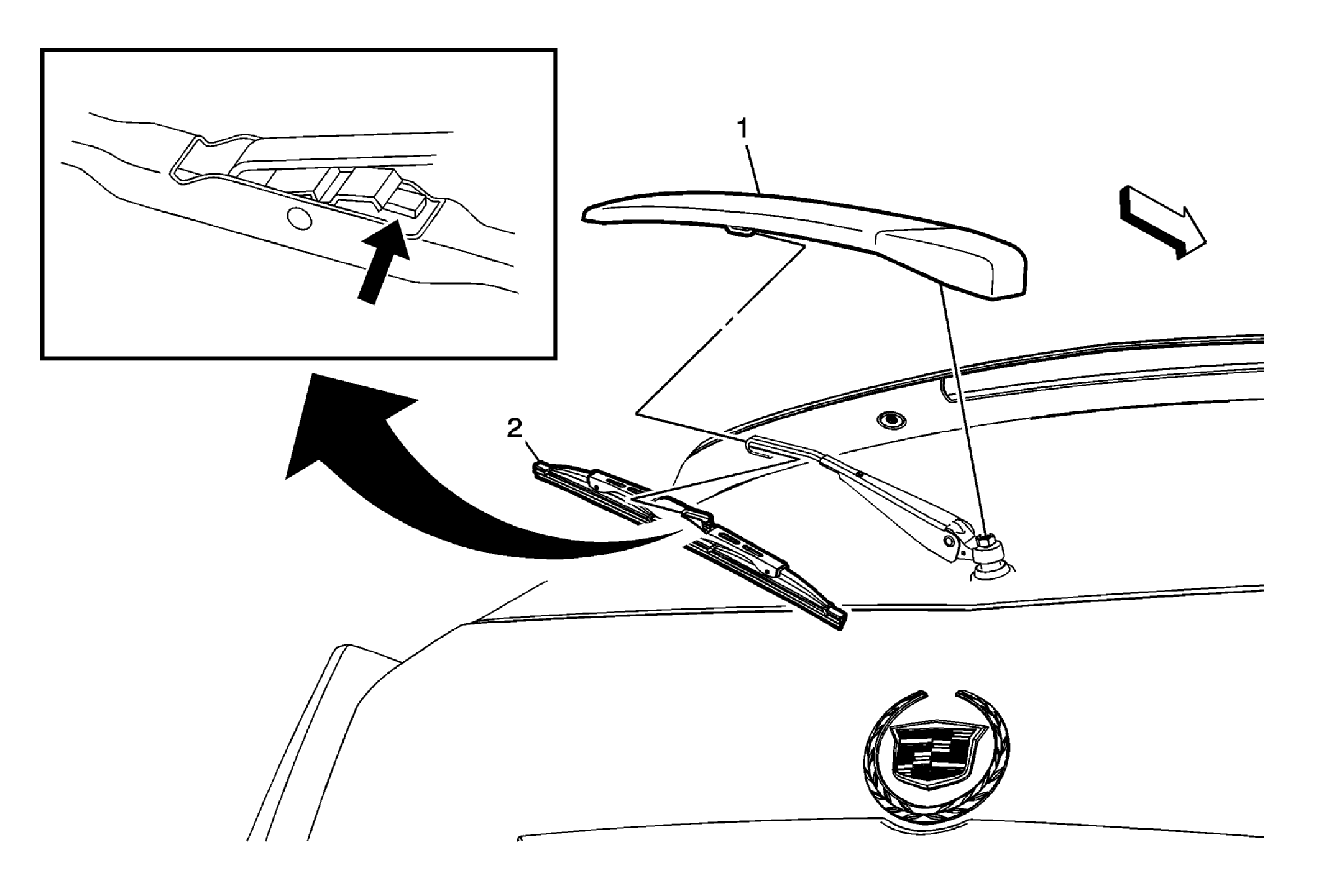

Fig 1: View Of Rear Window Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Window Wiper Arm Finish Cover. TIP: Carefully release the finish cover locking tabs securing the finish cover to the rear wiper arm.
2	Rear Window Wiper Arm Blade Assembly Procedure Lift the wiper arm away from the rear liftgate window. Rotate slightly the bottom edge of the blade away from the underside of the arm. Push in the bottom of the wiper blade clip and remove the wiper blade from the inside radius of the wiper arm.

Callout

Component Name

Rear Window Wiper Arm Finish Cover.
TIP: Carefully release the finish cover locking tabs securing the finish cover to the rear wiper arm.

Rear Window Wiper Arm Blade Assembly

Procedure

Lift the wiper arm away from the rear liftgate window.
Rotate slightly the bottom edge of the blade away from the underside of the arm.
Push in the bottom of the wiper blade clip and remove the wiper blade from the inside radius of the wiper arm.
