Front Floor Console Armrest Compartment Replacement
Front Floor Console Armrest Compartment Replacement

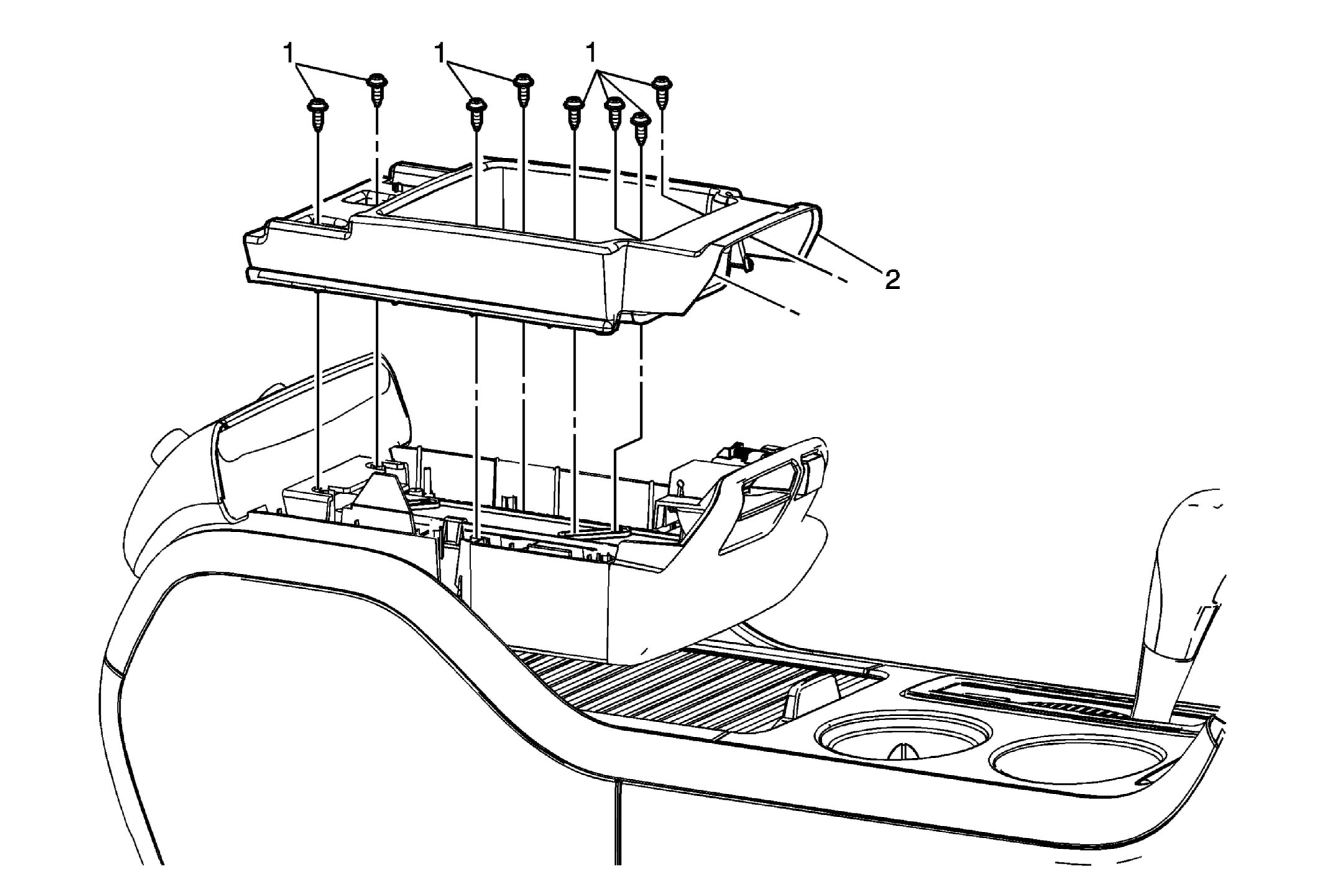

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console armrest assembly. Refer to Front Floor Console Outer Armrest Replacement . |
|
| 1 | Front Floor Console Armrest Compartment Screw (Qty: 8)
CAUTION:
Refer to Fastener Caution . Procedure Remove the liner to access the fasteners. |
| 2 | Front Floor Console Armrest Compartment |
