Below the Driver Side of the Instrument Panel

Below the Driver Side of the Instrument Panel

Component Name Callout
Audio Amplifier (UQA or UQS) 1
Body Control Module (BCM) 2
Brake Pedal Position (BPP) Sensor 3
Accelerator Pedal Position (APP) Sensor 4
Park Brake Switch 5

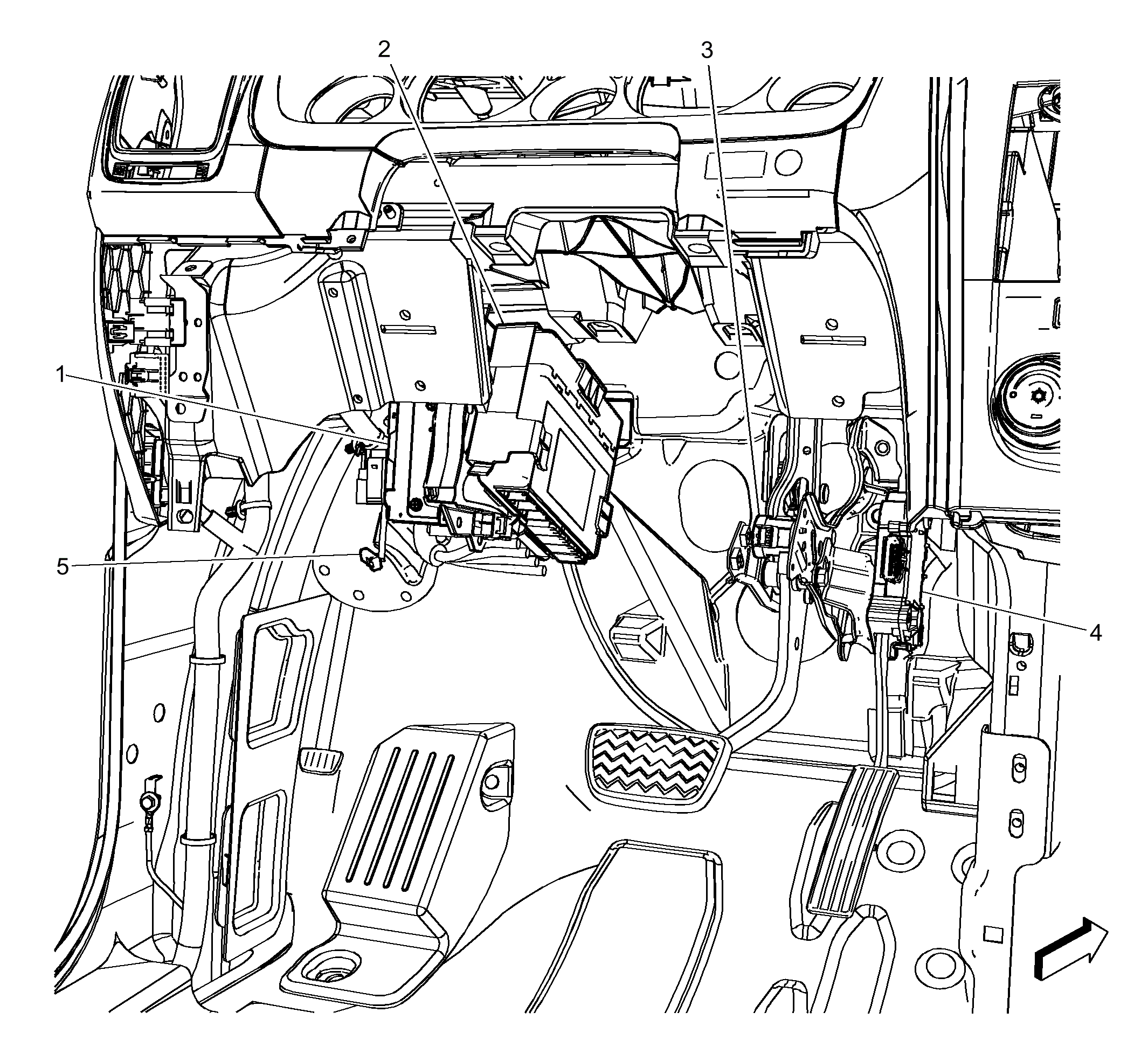

Fig 1: Below Driver Side Instrument Panel
GM2358131Courtesy of GENERAL MOTORS COMPANY
