Front of Vehicle - Chevrolet

Items
1: E2RF Side Marker Lamp - Right Front ((X88 or Z88)) E2RF Side Marker Lamp - Right Front (W49)E2RF Side Marker Lamp - Right Front (X88 or Z88)
2: E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam (X88)E4H Headlamp - Right Low Beam (Z88 without TVD)
3: T2 Antenna ((SPO Accessory))
4: E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam (X88)E4G Headlamp - Left Low Beam (Z88 without TVD)
5: E2LF Side Marker Lamp - Left Front ((X88 or Z88)) E2LF Side Marker Lamp - Left Front (W49)E2LF Side Marker Lamp - Left Front (X88 or Z88)
6: E2LF Side Marker Lamp - Left Front ((X88 or Z88)) E2LF Side Marker Lamp - Left Front (W49)E2LF Side Marker Lamp - Left Front (X88 or Z88)
7: E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam (X88)E4E Headlamp - Left High Beam (Z88 without TVD)
8: E4N Park/Turn Signal Lamp - Left ((X88)) E4N Park/Turn Signal Lamp - Left (X88)
9: E29LF Fog Lamp - Left Front ((T96)) E29LF Fog Lamp - Left Front (W49 with T96)E29LF Fog Lamp - Left Front (Z88 with T96)
10: B9 Ambient Air Temperature Sensor ((CJ2)) B9 Ambient Air Temperature Sensor
11: E29RF Fog Lamp - Right Front ((T96)) E29RF Fog Lamp - Right Front (W49 with T96)E29RF Fog Lamp - Right Front (Z88 with T96)
12: E4P Park/Turn Signal Lamp - Right ((X88)) E4P Park/Turn Signal Lamp - Right (X88)
13: E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam (X88)E4F Headlamp - Right High Beam (Z88 without TVD)
14: E2RF Side Marker Lamp - Right Front ((X88 or Z88)) E2RF Side Marker Lamp - Right Front (W49)E2RF Side Marker Lamp - Right Front (X88 or Z88)

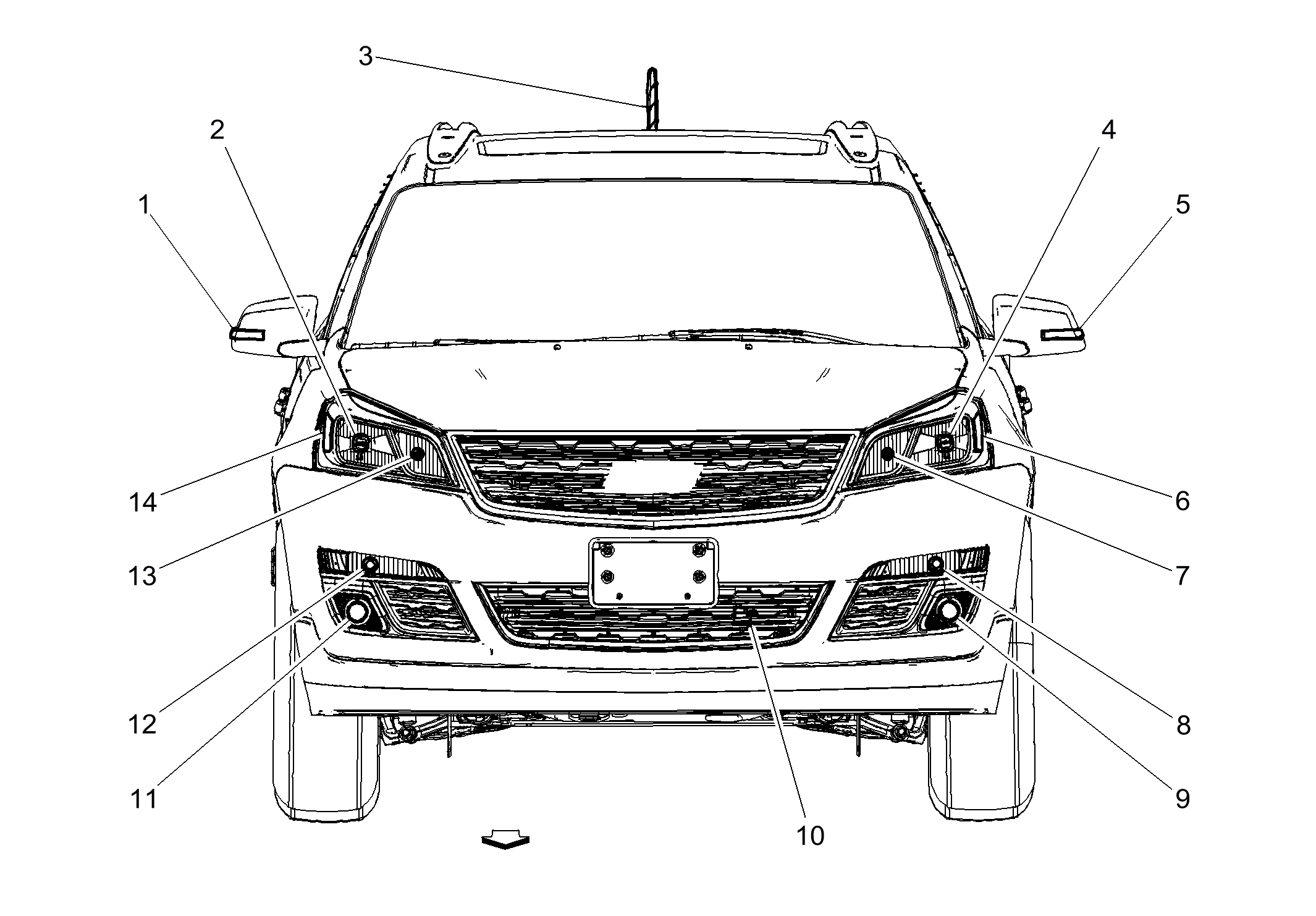

Fig 1: Front Of Vehicle Components - Traverse

Courtesy of GENERAL MOTORS COMPANY
