Driver or Passenger Seat Adjuster Memory Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

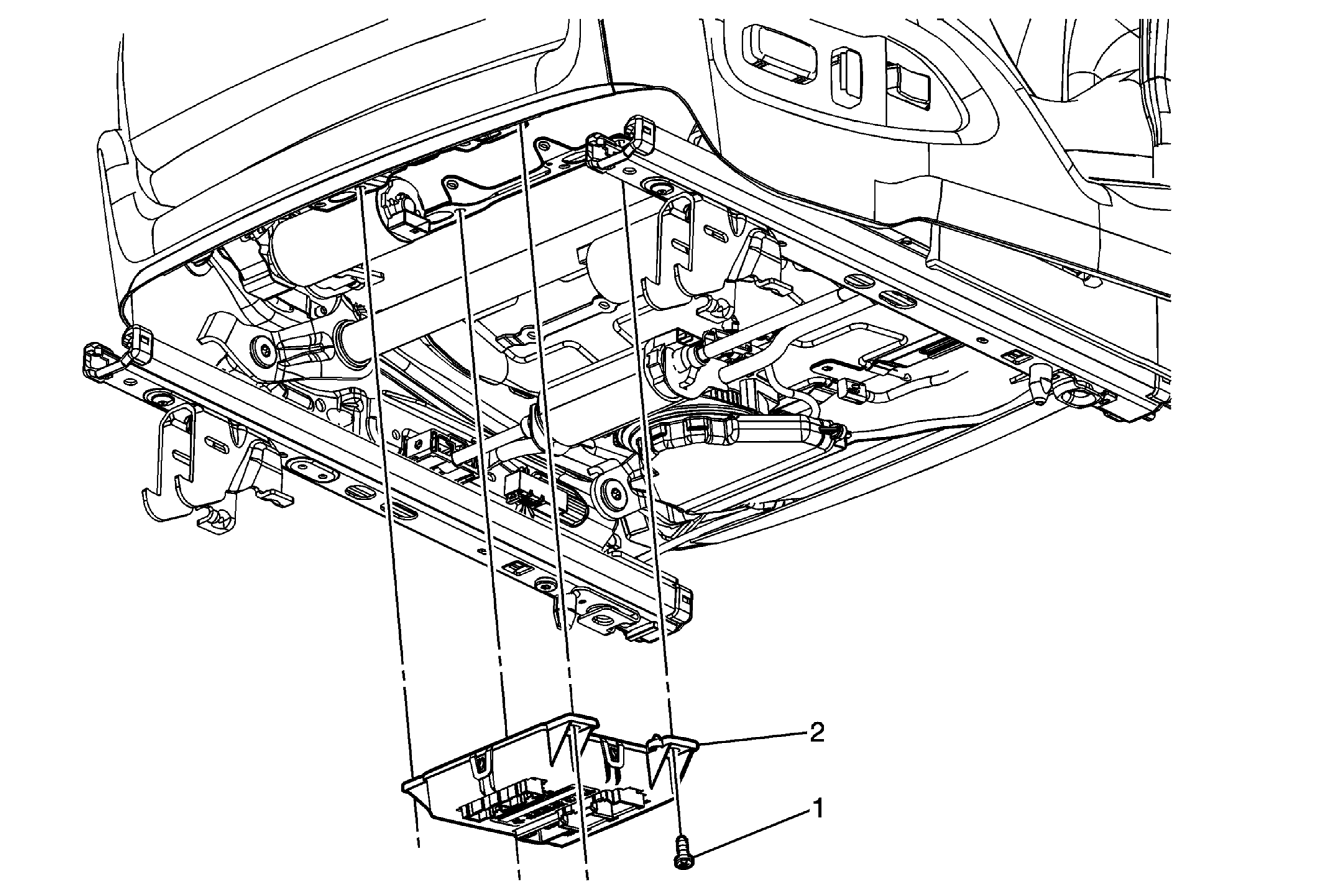

Fig 1: Identifying Seat Adjuster Memory Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Driver or Passenger Seat Replacement .
1	Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect the electrical connectors. Remove the module from the adjuster memory and wiring harness brackets. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure:
Remove the front seat. Refer to Driver or Passenger Seat Replacement .

Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 4 N.m (35 lb in)

Driver or Passenger Seat Adjuster Memory Module

Procedure

Disconnect the electrical connectors.
Remove the module from the adjuster memory and wiring harness brackets.
Refer to Control Module References for programing and setup information.
